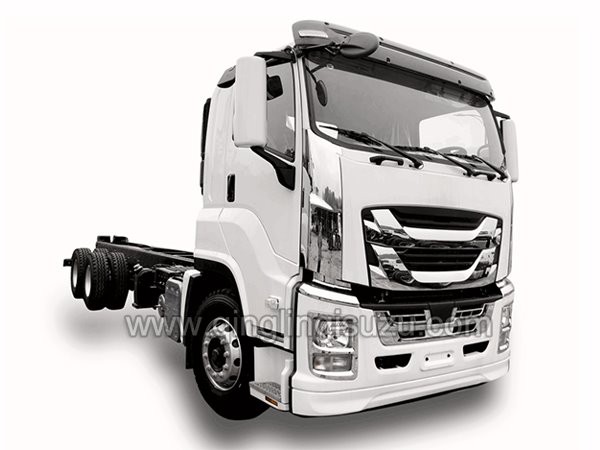

This crane truck is modified from Qingling Isuzu VC61 6x4 10 wheels chassis with 380 horsepower using Isuzu engine model 6UZ1-TCG51. It conforms to Euro 5 emission standard, and the equipped transmission has 8 forward gears and 1 backward gear. The interior of the cabin is spacious and comfortable, we focus on reducing fatigue in driving. Qingling Isuzu's VC61 truck has a simple design, is lightweight, and is fuel-efficient as quality.
Description of Vocational Features:
The maximum lifting capacity of this vehicle is 8 tons which can be used to load a variety of heavy materials and equipment in different scenarios. It is an ideal choice for a wide range of industries, such as the construction industry, manufacturing sector, oil industry, power sector, etc. If you find this vehicle suits your work, please feel free to contact us. Any special requirements regarding the specifications and configurations can be discussed and met accordingly.
Crane Body:
——Single cylinder synchronization guy cable technology makes work efficiency higher than before.
——Advanced development means making sure that the design is very reliable.
——The more symmetrical center design of the pentagon&hexagon boom makes it a bigger anti-vending capacity.
——Compact hinge point design take up smaller space
——The integer lifting winch improved the work efficiency greatly and prolonged the work life of the hydraulic system.
——Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
——Self-designed&developed slewing machine with greater drive force can meet varied requirements of working situations.
-----ISUZU 6U Engine:
Pursuing the fuel consumption perfromance of the practical speed zone with a high frequency of use, from boosting to cooling, fuel multi-point injection, pursuing to minimize fuel cost and achieve powerful power in high torque and economic speed regions.
Low speed and high twist, continuous maximum torque in the range of 1100-1600rpm
------ZF Transmission:
The latest 4th generation ZF gearbox with high transmission efficiency (0.965-0.98), more fuel-efficient, high reliability
Lightweight: Optimized two-section aluminum housing, light lightweight kg
Long life: short stroke long life synchronizer; gear full grinding process; built-in oil pump forced lubrication; optimized speed ratio distribution; low noise design
ISUZU CHINA VC61 6x4 8 Tons Crane Truck Specifications (Euro V)
Vehicle Model: | QL5330TZZU1VDZY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 11180x2518x3955 mm |
Wheelbase: | 5820+1370mm | |
Front/ Rear Wheel Distance: | 2065/1855/1855mm | |
Front/Rear Suspension | 1370/2590mm | |
Rear Axle Ratio: | 5.571 | |
Approach/Departure angle: | 17/18° | |
Leaf Spring: | 8/10 | |
Weights and Capacities | Curb Weight: | 12800kg |
GVW: | 33000kg | |
Axle Loads: | 7000/26000kg | |
Engine | Engine Model: | 6UZ1-TCG51 |
Max output: | 257Kw | |
Displacement: | 9839ml | |
Horsepower: | 380Ps | |
Exhaust Gas Treatment Technology： | SCR | |
Transmission | Transmission: | ZF8S2030TO |
Forward Gear: | 8 Speed Gear | |
Backward Gear: | 1Speed Gear | |
Brake | Air Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Generator | 24V-60A | |
Cab | Cabin Type | Plat Roof Single Sleeper |
Number of Seats: | 2 | |
Chassis | Drive Type: | 6x4 |
Tires: | 11(Including Spare Tire) | |
Tire Model: | 12R22.5 18PR | |
Fuel Tank | Number: | 1 |
Capacity: | 400L | |
Top Parameters | Max. lifting capacity | 8000Kg |
Max. pressure of hydraulic system | 27Mpa | |
Oil tank capacity | 160L | |
Installation space | 1200mm | |
Rotation angle | 360 Continuous | |
Configurations: | 1 | Power Steering |
2 | AC | |
3 | Tubeless Tire | |
4 | ABS | |
5 | Free Maintenance Battery | |
6 | Central Lock | |
7 | Power Window | |
8 | Data Recorder | |
9 | Air Suspension Cabin | |
10 | Air Suspension Seat | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

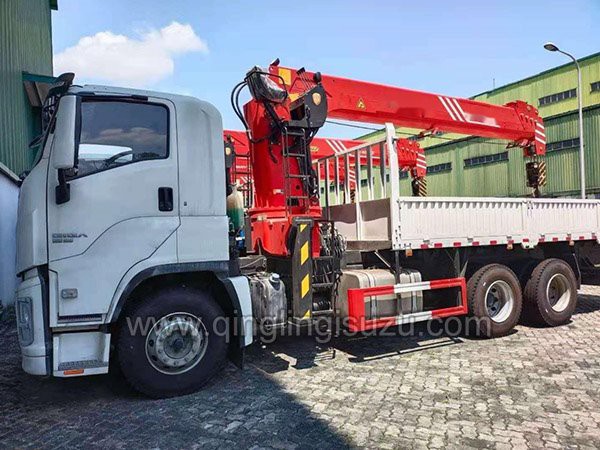

Photo for Reference:
