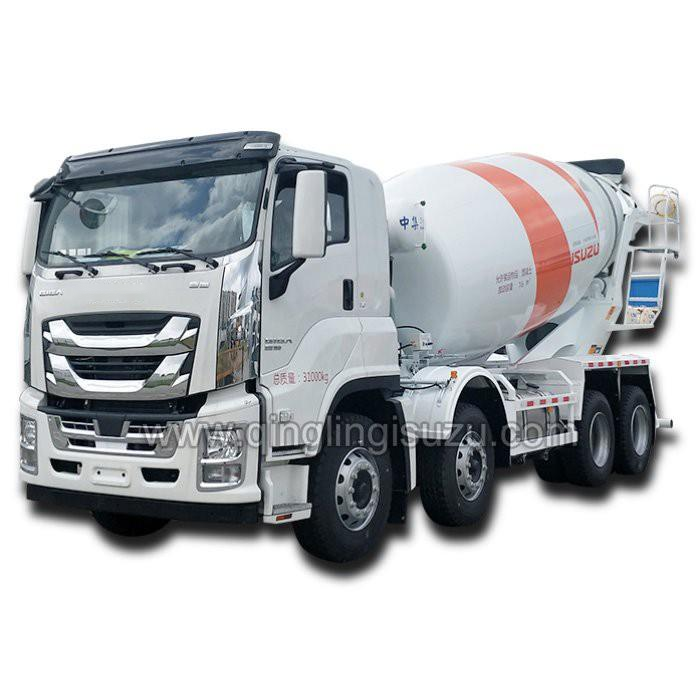

12m³ Mixer Truck-VC61 -8x4

Chassis Dimensions and Parameters

Overall Dimension (L x W x H)

9410×2540×3055mm

Wheelbase:

1850+3280+1370 mm

Front Wheel Distance:

2065/2065mm

Rear Wheel Distance:

1855/1855mm

Front/Rear Suspension

1370/1540mm

Rear Axle Ratio:

5.571

Approach/Departure angle:

17/30°

Leaf Spring:

7/7/10

Weights and Capacities

Curb Weight:

10150kg

Payload:

20850kg

GVW:

31000kg

Axle Loads:

6500/6500/18000 (Two-axis group)

Engine

Engine Model:

6UZ1-TCG50

Max output:

279Kw

Displacement:

9839ml

Horsepower:

380Ps

Exhaust Gas Treatment Technology：

SCR

Transmission

Transmission:

ZF8S2030T0

Forward Gear:

8 Speed Gear

Backward Gear:

1 Speed Gear

Brake

Air Brake

Front Drum Back Drum

With Exhaust Brake

Generator

24V-120A

Cab

Number of Seats:

2

Cabin Type:

Standard Roof One Bed

Chassis

Drive Type:

8x4

Tires:

13(Including Spare Tire)

Tire Model:

315/80R22.5 16PR

Fuel Tank

Number:

1

Capacity:

400L

Configurations:

1

Power Steering System

2

Air Conditioning

3

Central Lock

4

Power Window

5

Driving Data Recorder

6

Tubeless Tire

7

ABS

8

Free Maintenance Battery

9

Aluminum Alloy Gas Tank

10

Widened Bumper

11

Air Suspension Cabin

12

Air Suspension Seat

Body

Mixer Tank Volume

12m³

Speed Reduction System

TOP 82S

Pump

EATON54

Motor

EATON54
