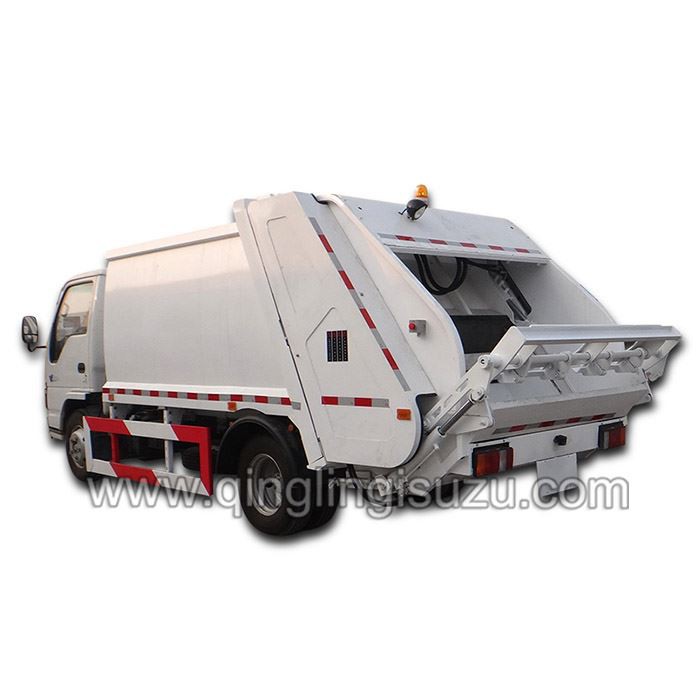

NKR/100P is the typical model of light duty trucks, modified with the compactor garbage box and accommodating up to 5m3, has the horsepower of 130HP. Filler volume is 0.6m3.Cycling time of filling ≤25S. The vehicle is mainly used for the storage and transport of urban waste. The whole vehicle has a beautiful appearance and a large loading capacity.
The NKR compactor garbage truck is a waste collection vehicle that combines filling, compacting and transport. The truck is fully sealed, self-compacting and self-dumping, with high pressure and strong waste crushing and compaction functions. The compression ratio is greater than 2.5 (two-way compression).
Product Features
High compression ratio: High-perfromance components such as Japan-imported five-link valve set, PLC electronic control system, proximity linkage control, etc. The compression ratio is greater than 2.5 (two-way compression).
High sealing: The whole vehicle upper box, front and rear doors, filler, sewage tank and other parts are designed with high sealing, which can completely avoid the problem of secondary pollution.
High safety: The whole vehicle is equipped with 17 safety protection measures, mainly using sound and light alarm, interlocking linkage, emergency stop, error prevention and other safety technical means. It can ensure the safety of the vehicle and the operator.
Low noise: Take the force through the transmission. Output the best transmission ratio. The supporting part of the sliding plate in the carriage is made of nylon wear-resistant material, which reduces the sliding resistance and lowers the working noise.
ISUZU CHINA 100P 4x2 5m³ Compactor Truck Specifications (Euro V )
Vehicle Model: | QL1042A6FAY | |
Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 6230*1980*2200(mm) |
Wheelbase: | 2765mm | |
Front/ Rear Wheel Distance: | 1504/1525mm | |
Approach/Departure angle: | 24/16° | |
Leaf Spring: | 3/3+2 | |
Weights and Capacities | Curb Weight: | 4900kg |
Payload: | 2400kg | |
GVW: | 7300kg | |
Engine | Engine Model: | 4KH1CN5HD |
Engine Power: | 96Kw | |
Displacement: | 2999ml | |
Exhaust Gas Treatment Technology： | DPF | |
Horsepower: | 130HP | |
With VGT | ||
Transmission | Transmission: | MSB-5MT |
Forward Gear: | 5 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Hydraulic Brake | |
Front Drum Back Drum | ||
Without Exhaust Brake | ||
Generator | 12V-60A | |
Cabin | Number of Seats: | 2 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 7.00R16 8PR | |
Fuel Tank | Number: | 1 |
Capacity: | 100L | |
Top | Garbage Container Capacity | 5m³ |
Filler Volume | 0.6m3 | |
Cycling Time of Filling | ≤25S | |
Hydraulic System Pressure | 18Mpa | |
Directional Control Valve | Multiple Way Reversing Valve | |
Manipulator Configuration | Standard Double Barrel Manipulator | |
Configurations: | Power Steering System | |
Air Conditioner | ||
Retro-reflective Marking | ||
Tubeless Tire | ||
ABS | ||
Free Maintenance Battery | ||
Notes: Above specs is for reference, any other specs needed, or special requirements, can be discussed accordingly.
