This dump truck is altered from Qingling Isuzu 100P chassis mounted with dumper body with 3m³volume. It is powered by Isuzu engine model 4KH1CN5HD with 130 horsepower, and the emission standard is Euro 5 by applying DPF exhaust gas treatment technology in it. The transmission has 5 forward gears and 1 backward gear. It has gained good reputation from customers for its trustworthy quality and reasonable price.
Description of Vocational Features:
This dump truck is equipped with an open dumper which can be controlled manually using a hydraulic system that would benefit the users to unload heavy items or loose materials. It’s commonly used to load materials such as stones, sand, soil, bricks, cement, and many other necessary construction materials. Any special requirements for the specifications and configurations can be discussed and met accordingly.
ISUZU CHINA 100P 4x2 3m³Dump Truck Specifications (Euro V)
Vehicle Model: | QL3070ZA5FAJ | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 5035×1980×2250mm |
Wheelbase: | 2765mm | |
Front/ Rear Wheel Distance: | 1504/1525mm | |
Front/Rear Suspension: | 1015/1450mm | |
Rear Axle Ratio: | 5.375 | |
Approach/Departure angle: | 24/16° | |
Leaf Spring: | 3/3+2 | |
Weights and Capacities | Curb Weight: | 3100kg |
Payload: | 4070kg | |
GVW: | 7300kg | |
Axle Loads: | 1805/5395kg | |
Engine | Engine Model: | 4KH1CN5HD |
Max output: | 96Kw | |
Displacement: | 2999ml | |
Horsepower: | 130Ps | |
Transmission | Transmission: | MSB-5MT |
Forward Gear: | 5 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Hydraulic Brake | |
Front Drum Back Drum | ||
Generator | 12V- 60A | |
Cab | Number of Seats: | 2 |
Chassis | Drive Type: | 4x2 |
Tires: | 7 (Including Spare Tire) | |
Tire Model: | 7.5R15-14PR | |
Fuel Tank | Number: | 1 |
Capacity: | 100L | |
Top Parameters | Box Volume: | 3m³ |
Box Dimension: | 3260×1880×480mm | |
Lifting Angle: | 46° | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | ABS | |
4 | Tubeless Tire | |
5 | Retro-Reflective Marking | |
6 | Cab Tilting Mechanism | |
7 | Free Maintenance Battery | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

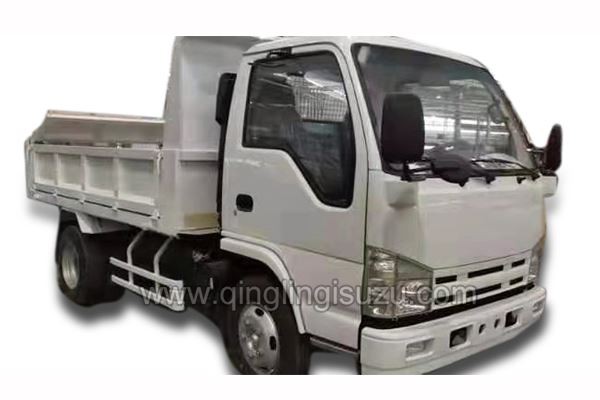

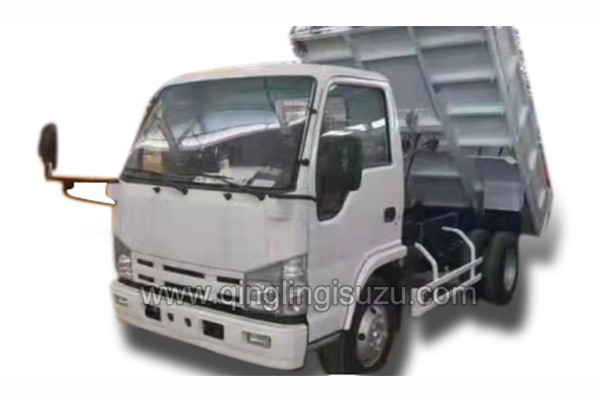

Photo for Reference:
