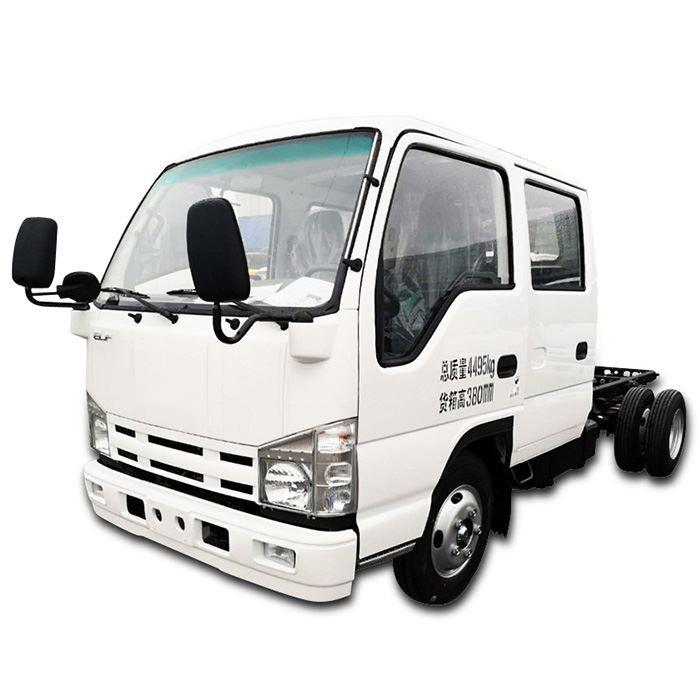

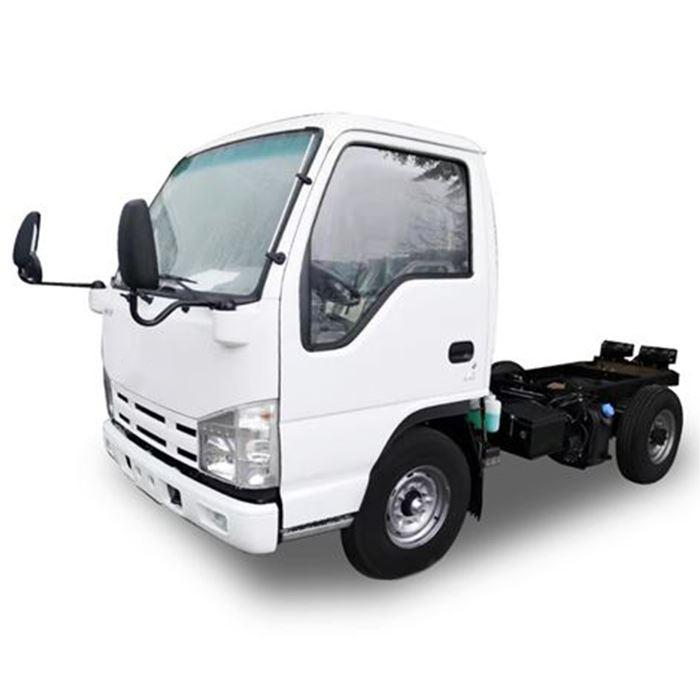

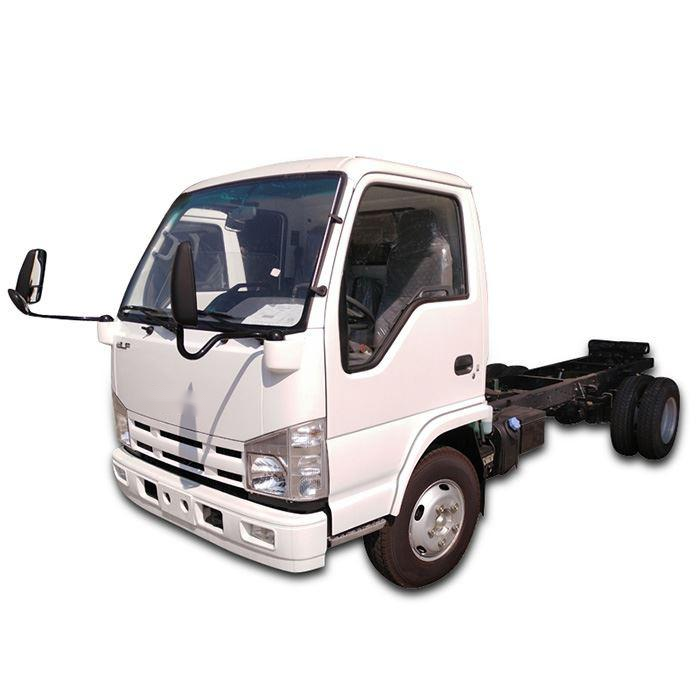

This NKR Light Duty Truck is from QINGLING, and the engine tech is from Japan which named 100P in China. It can payload 2/3/4/5 tons. The transmission is Manual MSB-5, with 5 froward gear and 1backward gear. Recognized for its outstanding combination of economy, safety, reliability and durability, it is a very popular light truck in many countries.
Cabin
The new N-series Light Duty Truck's new cabin model is adopted front headlight follow-up steering technology, new NKR cabin is more beautiful, comfortable and safe.
Power
The new N-series Light Duty Truck is equipped with the new 4KH1 engine. 4K engine is characterized by an output power of 130 horsepower, electronic injection, intercooled supercharging technology and a supercharger with cooling device.The 4KH1CN engine has Supercharged inter cooling technology and SCR/PDF Post processing system. The engine has strong power, low fuel consumption, reliable and durable.
More environmentally friendly
Qingling Trucks have achieved low pollution and low fuel consumption throughout the life cycle, and the perfromance of the whole vehicle is simultaneously improved, the noise is lower, the waggle is smaller, and the vehicle is quieter and more comfortable.
More economical
The fuel consumption of Qingling truck is low, and the fuel cost is reduced by 10% - 15% compared with other vehicles with the same load capacity. It is high reliability, maintenance costs low.
Stronger oil adaptability
Qingling is taking full account of user's conditions of use, matching development, improved the adaptability of oil products.
4 wheels
6 wheels
Seat: 2+3
100P Truck Chassis Specifications:
Truck Brand | QINGLING | |
Vehicle Parameters | Overall Dimension (L x W x H) | 5230×1860×2180(mm) |
Wheelbase: | 2765/3360/3815mm | |
Front/ Rear Wheel Distance: | 1385/1425mm | |
Front/Rear Suspension | 1015/1450mm | |
Weight | Curb Weight: | 1750-2200kg |
Payload: | 2000-5000kg | |
GVW: | 3960-7300kg | |
Engine | Engine Model: | 4JB1CN/4KH1 |
Displacement: | 2771ml | |
Horsepower: | 98hp/115hp/130hp | |
Exhaust Gas Treatment Technology： | EGR/DPF/SCR | |
Transmission | Transmission: | Manual MSB-5 |
Forward Gear: | 5 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Seats | Front Seat: | 2 |
Chassis | Drive Type: | 4x2 |
Tires: | 4 /6 wheels | |
Fuel Tank | Capacity: | 100L/75L/84L |
Standard Configuration | 1 | Power steering system |
2 | Air Conditioning | |
3 | Retro-reflective Marking | |
4 | Cab Tilting System | |
5 | ABS | |
6 | Free Maintenance Battery | |
Notes: Above specs is for reference, any other specs needed, or special requirements, can be discussed accordingly.
