The water tanker is a special type of car that has been modified based on a sprinkler. The tank body has been specially treated for the purpose of transporting drinking water. Sprinklers are only used to install water for green spraying or road dusting.
Product description:
Chassis Parameters | Overall Dimension(L x W x H) | 6980*2170*2330mm |
Curb Weight: | 3180Kg | |
GVW: | 10000Kg | |
Wheelbase: | 3815mm | |
Drive Type: | 4x2 |
If you wanna check more parameters about this street sweeper truck, please click on the parameters page.

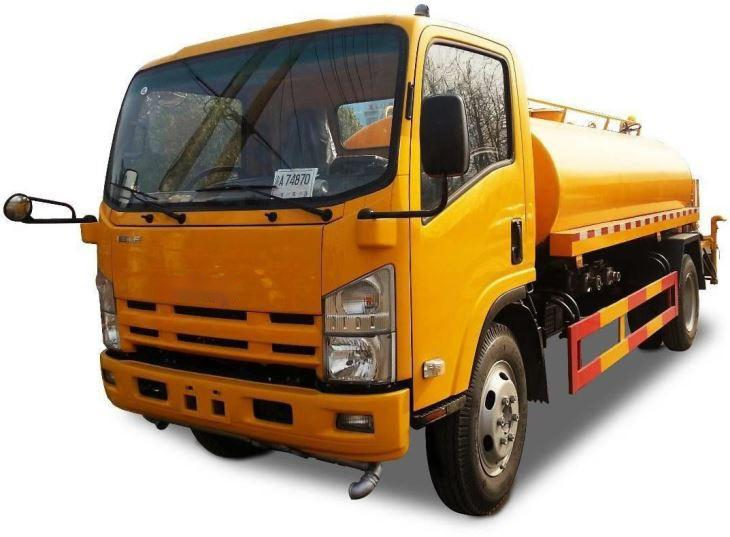

Product photo:
ISUZU CHINA 700P 6m3 Water Tank Truck Specs(Euro V)
Vehicle Model: | QL1100A8KAY | |
Chassis Parameters | Overall Dimension(L x W x H) | 6980*2170*2330mm |
Curb Weight: | 3180Kg | |
GVW: | 10000Kg | |
Wheelbase: | 3815mm | |
Drive Type: | 4x2 | |
Engine | Engine Model: | 4HK1-TC51 |
Engine Power: | 141Kw | |
Displacement: | 5193ml | |
Horsepower: | 192Hp | |
Transmission | Transmission: | MLD-6Q |
Forward Gear: | 6 Speed Gear | |
Reverse Gear: | 1 Speed Gear | |
Seats | Front Seat: | 3 |
Chassis | Front Track: | 1680mm |
Rear Track: | 1650mm | |
Axle Loads: | Double Axles | |
Tires: | 7(including spare tire) | |
Tire Model: | 8.25-20 14PR | |
Configuration: | 1 | Power Steering |
2 | AC | |
3 | Retro-reflective Marking | |
4 | Bias Tire | |
5 | ABS | |
6 | Free Maintenance Battery | |
7 | Air Brake | |
8 | PTO | |
Tank Body: | Water Tank Volume: | 6m3 |
Water Tank Material: | 304 Stainless Steel | |
Water Tank Opening: | 1 stainless steel tank lid, manhole diameter 500mm, 1 breathing valve | |
Number of Bin: | Single, 2 swash plate | |
Thickness of Water Tank: | Tank body 4mm, head 5mm | |
Water Tank Model: | 80QSB-60/90 water tank | |
Other Configurations | Stainless steel pipe, with stainless steel ball valve, 1pcs gravity valve, 1pcs pump valve | |
20M fire hose | ||
2pcs drain hose | ||
Tail with ladder, side and rear lights, side fence, carbon steel rear bumper, LED lamps, waterproof plug | ||
Notes: Above specs is for reference, any other specs needed, or special requirements, can be discussed accordingly.
