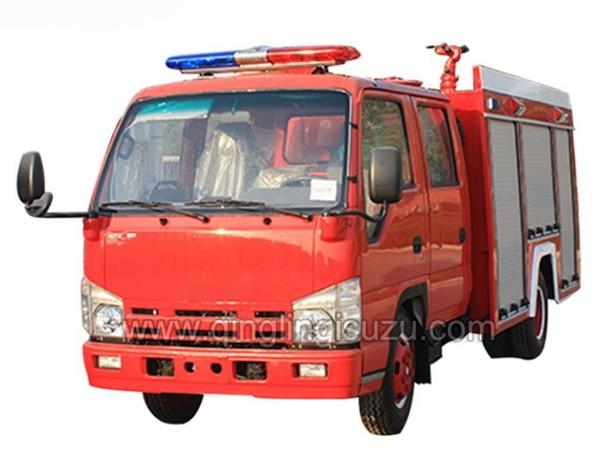

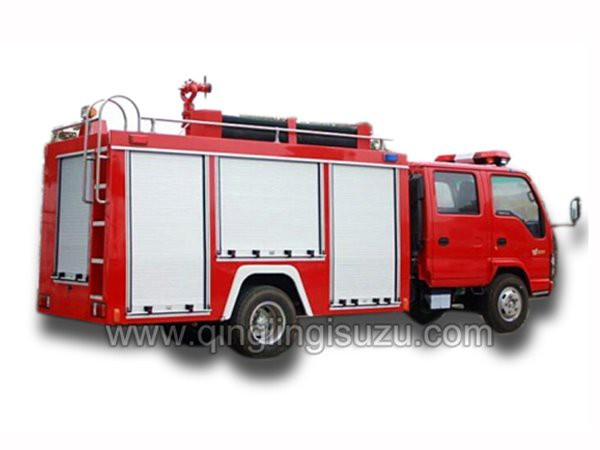

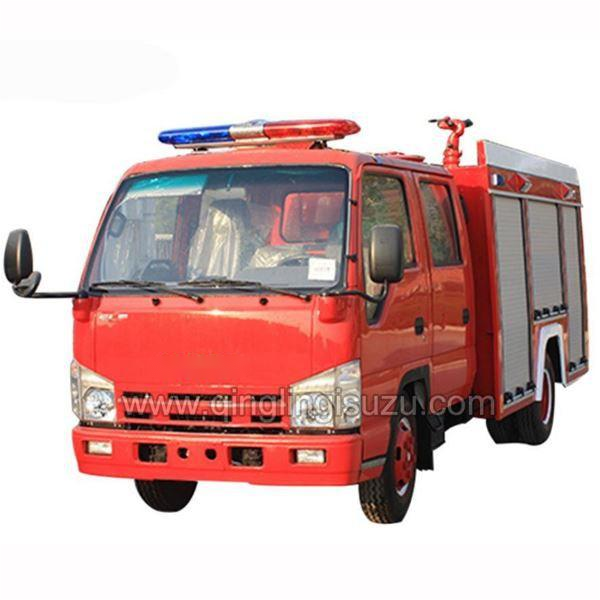

This firefighting truck is modified from Qingling Isuzu 100P chassis applied with water tanker body made of stainless steel 304 with volume of 2m³，it’s powered by Isuzu engine model 4JB1CN with maximum 98 horsepower. The exhaust gas treatment technology EGR applied in the truck makes it conform to the emission standard of EuroⅣ. The Equipped transmission has 5 forward gears and 1 backward gear.
The truck is assembled with fire pump, fire monitor, alarms, signals, lighting device, as well as conventional necessary rescue equipment. It’s completely capable to reach the purpose of carrying out the essential function of extinguishing the fire and rescuing people and animals stuck within the fire. Any special requirements of specifications and configurations can be discussed accordingly.
Vehicle Model: | QL10703KWRY(NEW11) | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 6645×1880×2220mm |
Wheelbase: | 3815mm | |
Front/ Rear Wheel Distance: | 1504/1425mm | |
Front/Rear Suspension | 1015/1815mm | |
Rear Axle Ratio: | 5.571 | |
Approach/Departure angle: | 24/14° | |
Leaf Spring: | 8/6+5 | |
Weights and Capacities | Curb Weight: | 2200kg |
Payload: | 4200kg | |
GVW: | 6725kg | |
Axle Loads: | 2005/4720kg | |
Engine | Engine Model: | 4JB1CN |
Max output: | 72Kw | |
Displacement: | 2771ml | |
Horsepower: | 98Ps | |
Exhaust Gas Treatment Technology： | EGR | |
Transmission | Transmission: | MSB-5MT |
Forward Gear: | 5 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Hydraulic Brake | |
Generator | 12V-60A | |
Cab | Number of Seats: | 2+3 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 7.00R16 14PR | |
Fuel Tank | Number: | 1 |
Capacity: | 100L | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Retro-reflective Marking | |
4 | ABS | |
5 | Tubeless Tire | |
6 | Free Maintenance Battery | |
Water Tank | Capacity: | 2000L |
Material： | Stainless Steel 304 | |
Fire Pump: | Model: | CB10/20-XZ |
Fire Monitor: | Model: | PS20W |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;
