ISUZU CHINA VC61 22m3 Garbage Compactor Truck (Euro V)
| Vehicle Model | QL1310U2TDHY | |

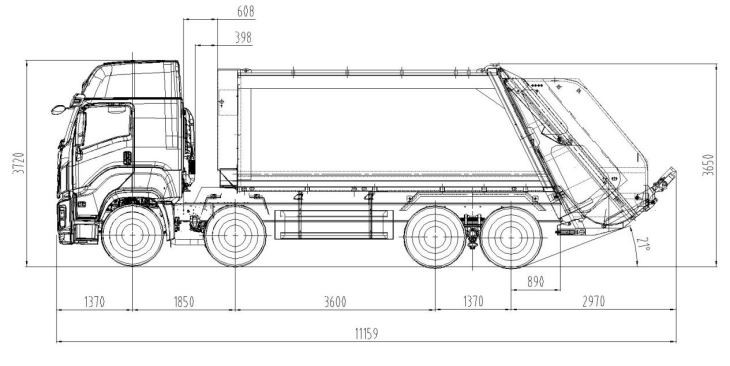

| Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 11159×2525×3650mm |
| Wheelbase: | 1850+3600+1370mm | |
| Front Wheel Distance: | 2065/2065mm | |
| Rear Wheel Distance: | 1855/1855mm | |
| Front/Rear Suspension | 1370/1540mm | |
| Weights and Capacities | Curb Weight: | 10150kg |
| GVW: | 31000kg | |
| Axle Loads: | 6500/6500/18000kg(Two-Axis Group) | |
| Engine | Engine Model: | 6UZ1-TCG50 |
| Max output: | 278Kw | |
| Displacement: | 9839ml | |
| Horsepower: | 380Ps | |
| Exhaust Gas Treatment Technology： | SCR | |
| Cabin | Number of Seats: | 2 |
| Cabin type | Standard Roof One Bed | |
| Chassis | Drive Type: | 8x4 |
| Tires: | 13(Including Spare Tire） | |
| Fuel tank | Capacity | 400L |
| Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | Central Lock | |
| 4 | Power Window | |
| 5 | Driving Data Recorder | |
| 6 | Tubeless Tire | |
| 7 | ABS | |
| 8 | Free Maintenance Battery | |
| 9 | Aluminum Alloy Gas Tank | |
| 10 | Widened Bumper | |
| 11 | Air Suspension Cabin | |
| 12 | Air Suspension Seat | |
| Top parameters | Garbage Container Capacity | 22m3 |
| Filler Volume | 2.2m3 | |
| Cycling time of Filling | ≤25S | |
| Lifting time of Filler | 8-10S | |
| Time of Discharging | ≤60S | |
| Hydraulic System Pressure | 20Mpa | |
| Hydraulic system control mode | Manual/electric integrated | |
| Oil cylinder type | Double-acting piston type | |
| Oil pump | Dual gear pump | |
| Directional control valve | Multiple way reversing valve | |
| Power supply voltage of hydraulic control electrical system (V) | DC24 | |
| Manipulator configuration (standard) | Standard double-barrel manipulator (240L) | |
