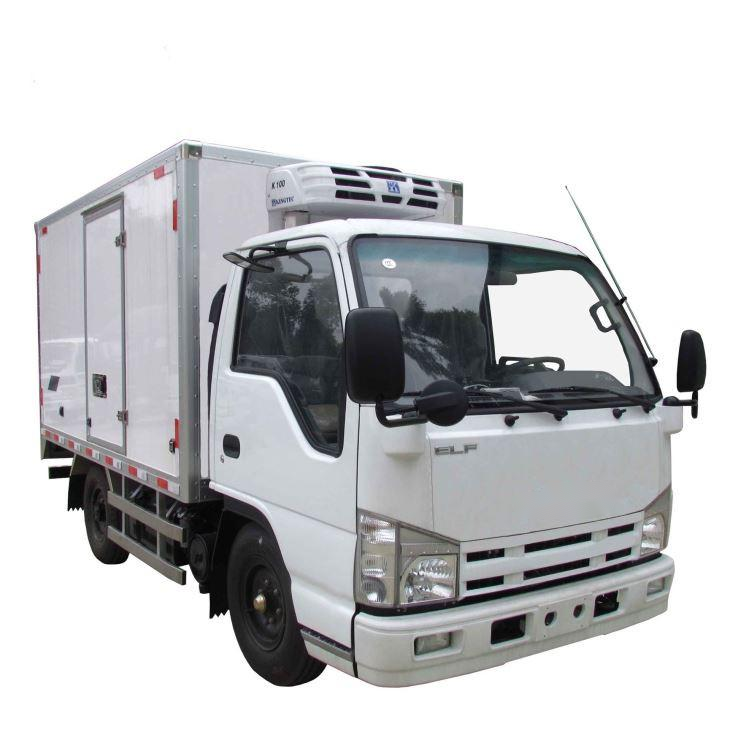

QingLing ISUZU 100P refrigerated truck:after the integration of high-quality chassis + high-quality refrigeration body + high-quality refrigeration machine system, the cooling performance is better and the transportation efficiency is higher.
![[[smallImgAlt]]](png/small-freezer-van-refrigerated-trucke912ae63-7d3b-4e9b-8e86-c277e27d6962-2.png)
QingLing ISUZU 100P refrigerated truck:after the integration of high-quality chassis + high-quality refrigeration body + high-quality refrigeration machine system, the cooling perfromance is better and the transportation efficiency is higher. For special requirements vehicles, such as meat hooks truck, the customer can choose optional accessories such as meat hooks, pipe chutes, aluminum guide rails, ventilation slots.The body of refrigeration truck adopts FRP material of box exterior and interior,thermo king refrigeration machine, stainless steel accessories.The box can make different dimensions according to the requirments,like 10ft,14ft length body.
The chassis use ISUZU world-leading 4KH1CN-type brand new diesel engine with fully-electronic precise control and high-pressure common rail, with stronger power, lower oil consumption, better oil adaptability and better low-temperature starting property: The new 4KH1CN engine, in line with the high quality of the ISUZU 4KH1 engine, matches the world-class Bosch diesel all-electronic precision control high-pressure common rail injection system. The system has high injection pressure and can improve the visible pollutant emission of the engine. Multi-injection of electronic injectors, precise and precise injection of diesel fuel to improve engine noise and vibration. Supercharged intercooling technology,SCR Post processing system. The engine has strong power, low fuel consumption, reliable and durable.
ISUZU CHINA 100P Refrigerated Truck Specifications:
| Truck Brand | QingLing |
Driving Type | Left Hand Drive |
Overall Dimension(L*W*H) | 5995*2070*2960mm |
GVW | 4495Kg |
Curb Weight | 3210Kg |
Axle loading: | 1805/2690Kg |
Wheelbase | 3360mm(Optional) |
F/R Track | 1504/1525mm |
Approaching Angle/Departure Angle(o) | 24/16 |
Tire No. | 7(Including Spare Tire) |
Tire | 7.00R16 8PR |
Color: | Optional |
Max Speed(Km/h) | 98Km/h |
Engine | |
Engine System | 4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
Model | 4KH1CN5LS |
Fuel Type | Diesel Engine |
Max output | 70Kw |
Horsepower: | 98HP |
Max Torque | 220N.m/1700rpm |
Emission Standard | Euro V |
Displacement: | 2999ml |
Transmission: | |
Model: | MSB-5MT |
Type | Manual |
Forward/Reverse | 5F/1R |
Brake System: | |
Service Brake | Vacuum Boosting Hydraulic brake |
Parking Brake | Drive Shaft Drum Brake |
Auxiliary System | Engine Exhaust Brake |
Electrical System | |
Battery | 2*12V-60Ah |
Alternator | 14V-60A |
Starter | 12V/2.5Kw |
Refrigeration Box | |
Box Dimension (L*W*H) | 4095*1900*1800mm |
Material of Box | FRP |
Refrigeration machine | Thermos King |
Other Accessories: | Stainless Steel |
Cab | |
Single-Row Cab with Air Conditioner | |
Other Equipment: | |
Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking | |
Notes:Above specs is for reference, any other specs needed or special requirements can be discussed accordingly.
