Single cylinder synchronization guy cable technology make work efficiency more higher than before.
Advanced development means make sure that the design is very reliable.
The more symmetrical center design of pentagon&hexagon boom make it has bigger anti-vending capacity.
QingLing ISUZU 8x4 8Ton Crane Truck:
Crane Body：
——Single cylinder synchronization guy cable technology make work efficiency more higher than before.
——Advanced development means make sure that the design is very reliable.
——The more symmetrical center design of pentagon&hexagon boom make it has bigger anti-vending capacity.
——Compact hinge point design take up smaller space
——The work is more safety after fitted with overwind alarm equipment.
——The interger lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.
——Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
——Self-designed&developed slewing machine with greater drive force can meet varied requirement of working situation.
——Anti-slewing impulse equipement that make vehicle running safely.
-----ISUZU 6W Engine:
Pursuing the fuel consumption perfromance of the practical speed zone with high frequency of use, from supercharging to cooling, fuel multi-point injection, the pursuit of maximizing fuel cost reduction, achieving large torque, large economic speed and strong power.
Low speed and high twist, continuous maximum torque in the 800-1400 rpm range
------ZF Transmission:
The latest 4th generation ZF gearbox with high transmission efficiency (0.965-0.98), more fuel-efficient, high reliability
Lightweight: Optimized two-section aluminum housing, light weight 100 kg
Long life: short stroke long life synchronizer; gear full grinding process; built-in oil pump forced lubrication; optimized speed ratio distribution; low noise design
Fuel-saving: ZF 8-speed products, the engine is running at economic speed
Lightweight and flexible shifting: with shift servo

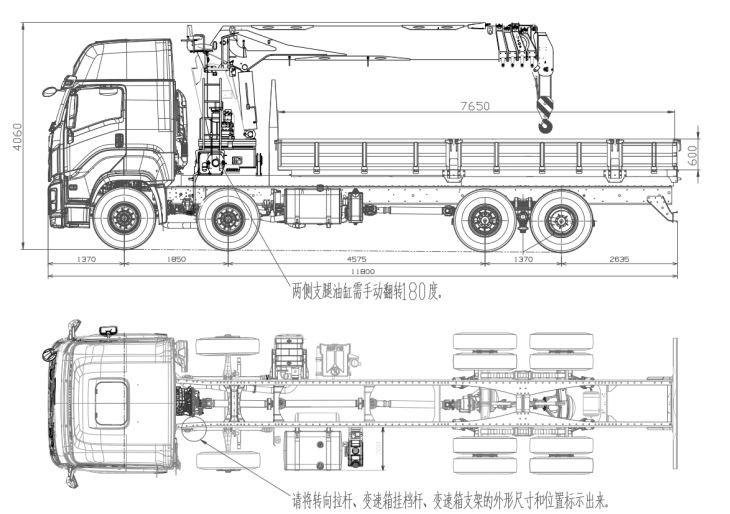

ISUZU CHINA VC61 8x4 8Ton Crane Truck Specifications:
| Vehicle Model | QL5330TZZU1VDZY | |
| Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 11150x2540x3055mmmm |
| Wheelbase: | 5820+1370mm | |
| Front Wheel Distance: | 2065mm | |
| Rear Wheel Distance | 1855/1855mm | |
| Front/Rear Suspension | 1370/2590mm | |
| Weights and Capacities | Curb Weight: | 12800Kg |
| GVW: | 33000kg | |
| Axle Loads: | 7000/26000Kg (Two-axis group) | |
| Engine | Engine Model: | 6UZ1-TCG50 |
| Max output: | 278Kw | |
| Displacement: | 9839ml | |
| Horsepower: | 380Ps | |
| Exhaust Gas Treatment Technology： | SCR | |
| Cabin | Number of Seats: | 2 |
| Cabin Type | High Roof Two Beds | |
| Chassis | Drive Type: | 6x4 |
| Tires: | 11(Including Spare Tire) | |
| Fuel tank | Capacity | 400L |
| Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS | |
| 4 | Tubeless Tire | |
| 5 | Aluminum Alloy Gas Tank | |
| 6 | Free Maintenance Battery | |
| 7 | Central Lock | |
| 8 | Power Window | |
| 9 | Driving Data Recorder | |
| 10 | Widened Bumper | |
| 11 | Air Suspension Cabin | |
| 12 | Air Suspension Seat | |
| Top Parameters | Max. Lifting Capacity | 8000Kg |
| Max. Pressure of Hydraulic System | 27Mpa | |
| Oil Tank Capacity | 160L | |
| Installation Space | 1200mm | |
| Rotation Angle | 360 Continuous | |
Notes:Above specs is for reference, any other specs needed or special requirements can be discussed accordingly.
