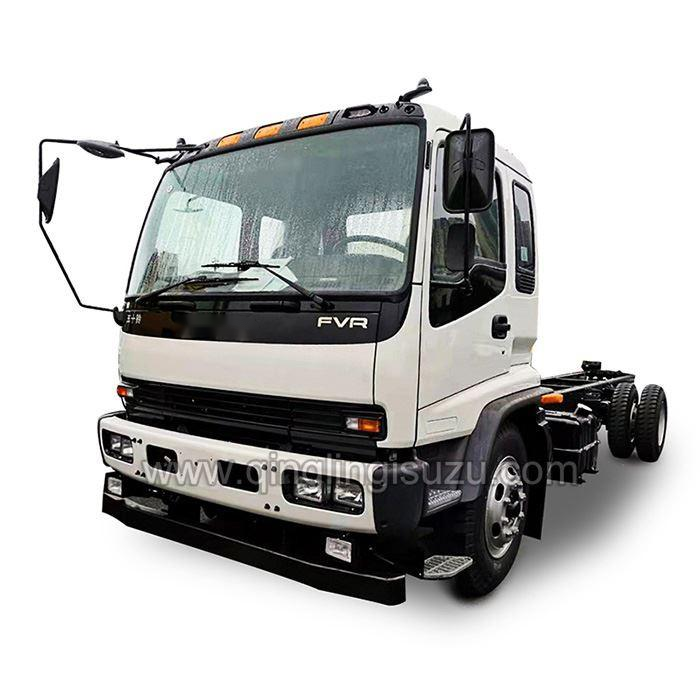

This garbage compactor truck is modified from Qingling Isuzu FVR chassis applied with a garbage container with a capacity of 14m³. It’s powered by an Isuzu engine model 6HK1-TCL with 240 horsepower. The exhaust gas treatment technology applied in the truck makes it comply with EuroⅤ emission standards. And the transmission has 6 forward gears and 1 backward gear. Our trucks are equipped with good quality and competitive prices. Please contact us, if you wanna know the quotation.
Description of Vocational Features
This type of garbage compactor truck is commonly used for collecting and dumping different kinds of garbage. It can be used by municipalities to collect garbage from dustbins and dump it at designated dumpsites. Apart from that, it can also be an ideal choice for industrial businesses since workshops and manufacturing plants alike are constantly generating a variety of garbage which should be disposed in the right way.
Special requirements for the specifications and configurations can be discussed and met accordingly.

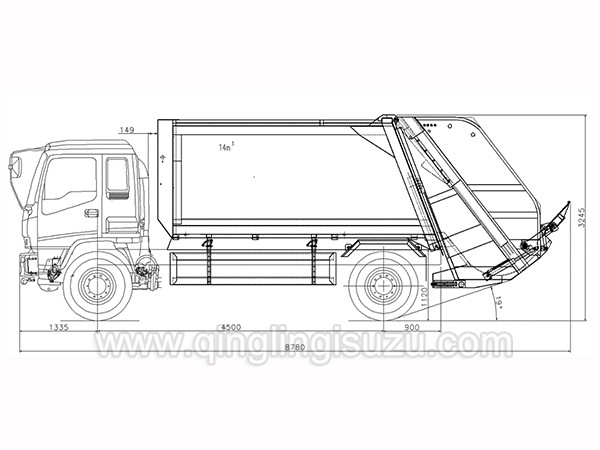

ISUZU CHINA FVR 4x2 14m³Garbage Compactor Specifications (Euro Ⅴ)
Chassis Model: | QL1180XMFRY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 8780×2496x3245mm |
Wheelbase: | 4500mm | |
Front/ Rear Wheel Distance: | 1960/1855mm | |
Front/Rear Suspension | 1335/1735mm | |
Rear Axle Ratio | 5.571 | |
Approach/Departure angle: | 15/17° | |
Leaf Spring: | 9/7+7 | |
Weights and Capacities | Curb Weight: | 5500kg |
Payload: | 12305kg | |
GVW: | 18000kg | |
Axle Loads: | 6500/11500kg | |
Engine | Engine Model: | 6HK1-TCL |
Max output: | 175Kw | |
Displacement: | 7790ml | |
Horsepower: | 240Ps | |
Exhaust Gas Treatment Technology： | DPF | |
Transmission | Transmission: | MLD-6Q |
Forward Gear: | 6 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Air Brake | |
Generator | 24V-50A | |
Cab | Number of Seats: | 3 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 11.00R20 16PR | |
Fuel Tank | Number: | 1 |
Capacity: | 200L | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Retro-Reflective Marking | |
4 | ABS | |
5 | Free Maintenance Battery | |
6 | Cab Tilting Mechanism | |
7 | Central lock & Electric doors and windows | |
8 | Driving Recorder | |
9 | Tubeless Tire | |
Top Parameters | Garbage Container Capacity | 14m³ |
Filler Volume | 2.0m³ | |
Cycling Time of Filling | ≤25S | |
Lifting Time of Filler | 8-10S | |
Time of Discharging | ≤45S | |
Hydraulic System Pressure | 20Mpa | |
Hydraulic System Control Mode | Manual/Electric Integrated | |
Oil Cylinder Type | Double-Acting Piston Type | |
Oil Pump | Dual Gear Pump | |
Directional Control Valve | Multiple Way Reversing Valve | |
Power Supply Voltage of Hydraulic Control Electrical System | DC24 | |
Manipulator Configuration (Standard) | Standard Double-Barrel Manipulator (240L) | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;
Photo for Reference:
