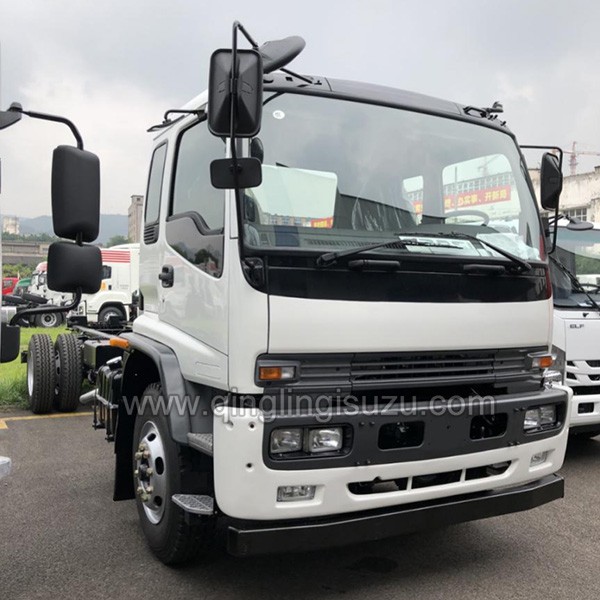

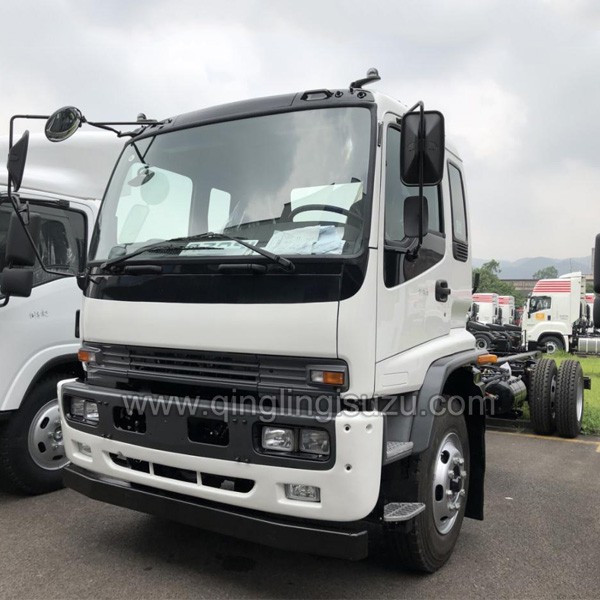

10m3 Garbage Compactor-FTR-QL1160VKFRY

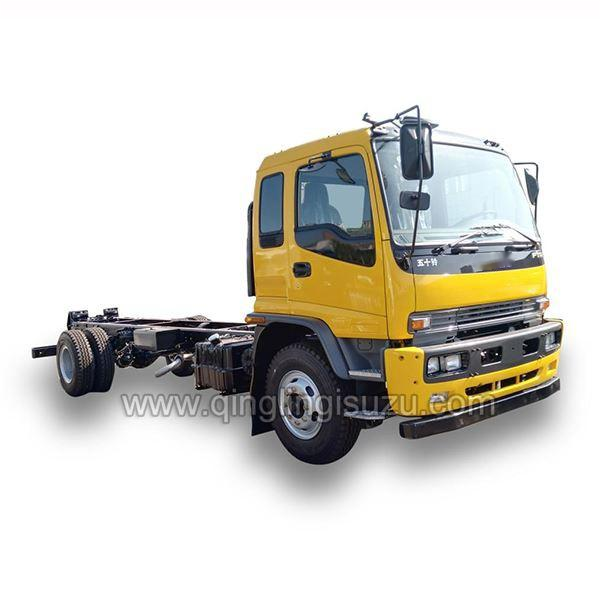

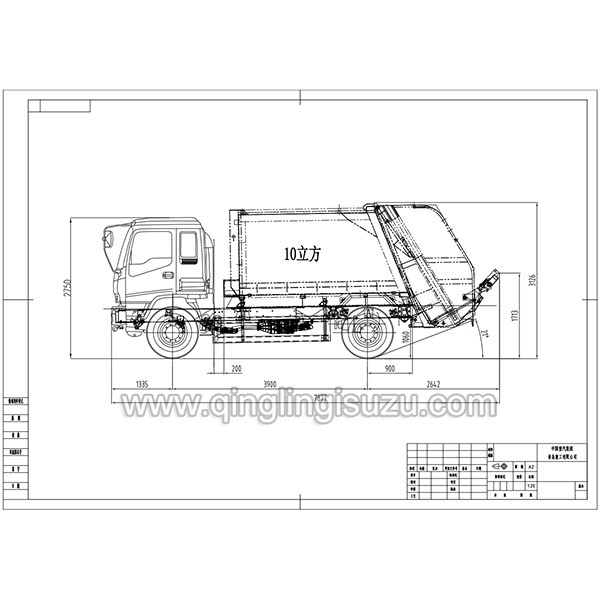

Chassis Dimensions and Parameters

Overall Dimension(L x W x H)

7877×2490×3126mm

Wheelbase:

3900mm

Front/ Rear Wheel Distance:

1960/1855mm

Front/Rear Suspension

1335/1200mm

Rear Axle Ratio:

4.1

Approach/Departure angle:

15/24°

Leaf Spring:

7/7+5

Weights and Capacities

Curb Weight:

9500kg

Payload:

8370kg

GVW:

18000kg

Axle Loads:

6000/10000kg

Engine

Engine Model:

4HK1-TC50

Max output:

150Kw

Displacement:

5193ml

Horsepower:

204Ps

Exhaust Gas Treatment Technology：

DPF

Transmission

Transmission:

MLD-6Q

Forward Gear:

6 Speed Gear

Backward Gear:

1 Speed Gear

Brake

Hydraulic Brake

Front Drum Back Drum

With Exhaust Brake

Generator

24V-120A

Cab

Number of Seats:

3

Chassis

Drive Type:

4x2

Tires:

 7(Including Spare Tire)

Tire Model:

10.00R20 16PR

Fuel Tank

Number:

1

Capacity:

200L

Top Parameters

Garbage Container Capacity

10m3

Filler Volume

1.5m3

Cycling Time of Filling

≤25S

Lifting Time of Filler

8-10S

 Time of Discharging

≤45S

Hydraulic System Pressure

20Mpa

Hydraulic System Control Mode

Manual/Electric Integrated Control

Oil Cylinder Type

Double-Acting Piston Type

Oil Pump

Dual Gear Pump

Directional Control Valve

Multiple Way Reversing Valve

Manipulator Configuration

Standard Double Barrel Manipulator

Configurations:

1

Power Steering System

2

Air Conditioning

3

Retro-Reflective Marking

4

ABS

5

Tubeless Tire

6

Free Maintenance Battery

7

Power Window

8

Central Lock

9

Driving Data Recorder
