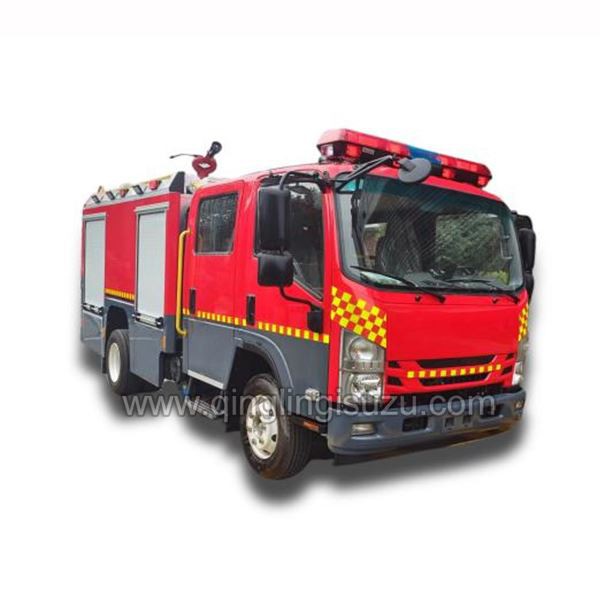

This fire truck adopts the chassis of Qingling Isuzu medium truck. It is equipped with 4HK1-TC51 engine, which is high power direct injection, OHC, intercooled turbo diesel engine. Displacement is 5193cc. Max. output is 141kw. It has strong power, strong vehicle carrying capacity and fast driving speed. Wheelbase is 3360mm （in consideration of the truck is used at city, short wheelbase is recommended due to its small turning radius and strong maneuverability）.
This fire truck is superb quality and functional to ensure smooth execution of rescue work.
Qingling Isuzu medium-duty trucks have strong power, strong vehicle carrying capacity and fast driving speed.
Long service life, reliable and durable, low maintenance cost.
High safety, equipped with a unique collision energy absorption safety system.

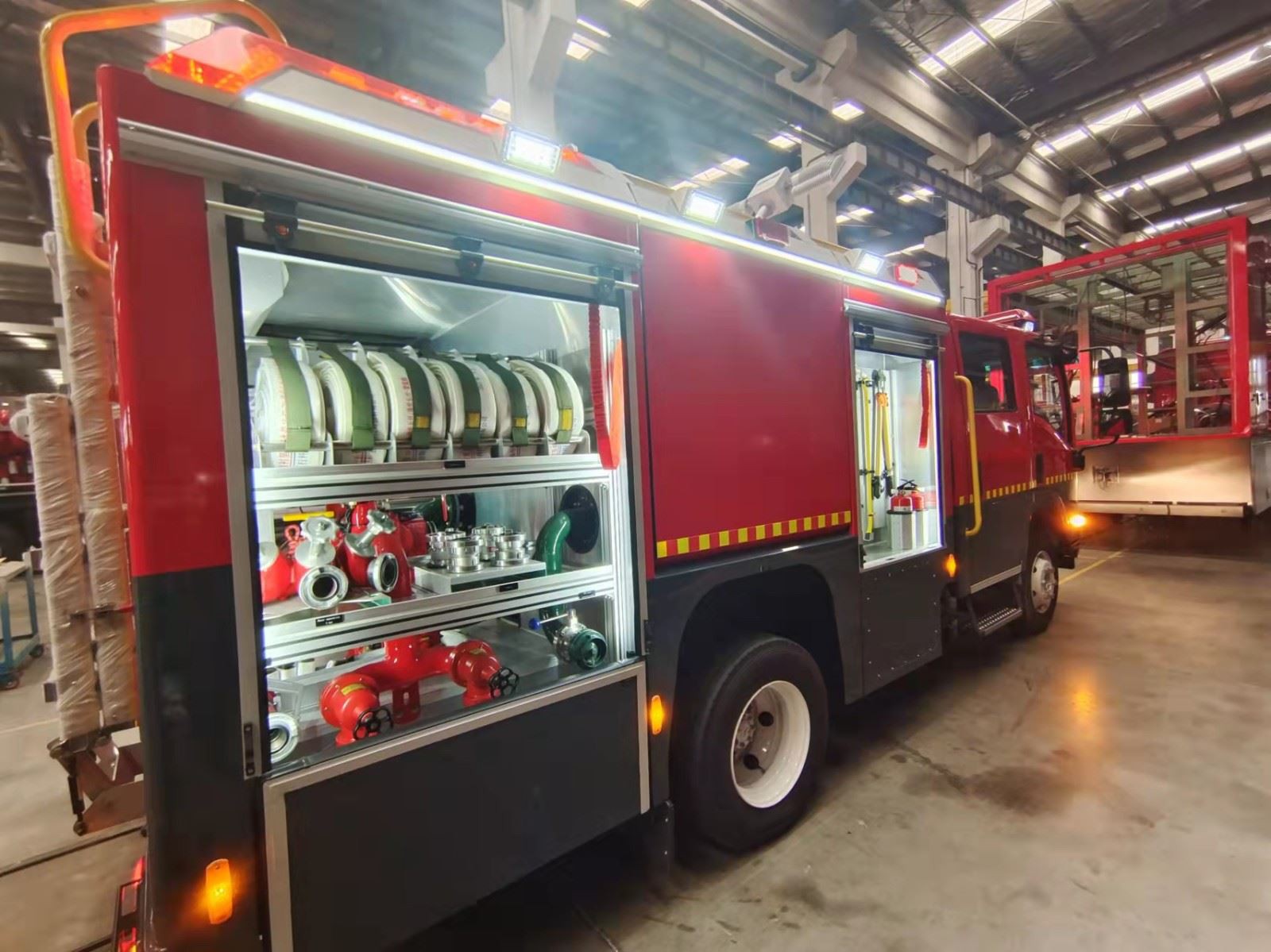

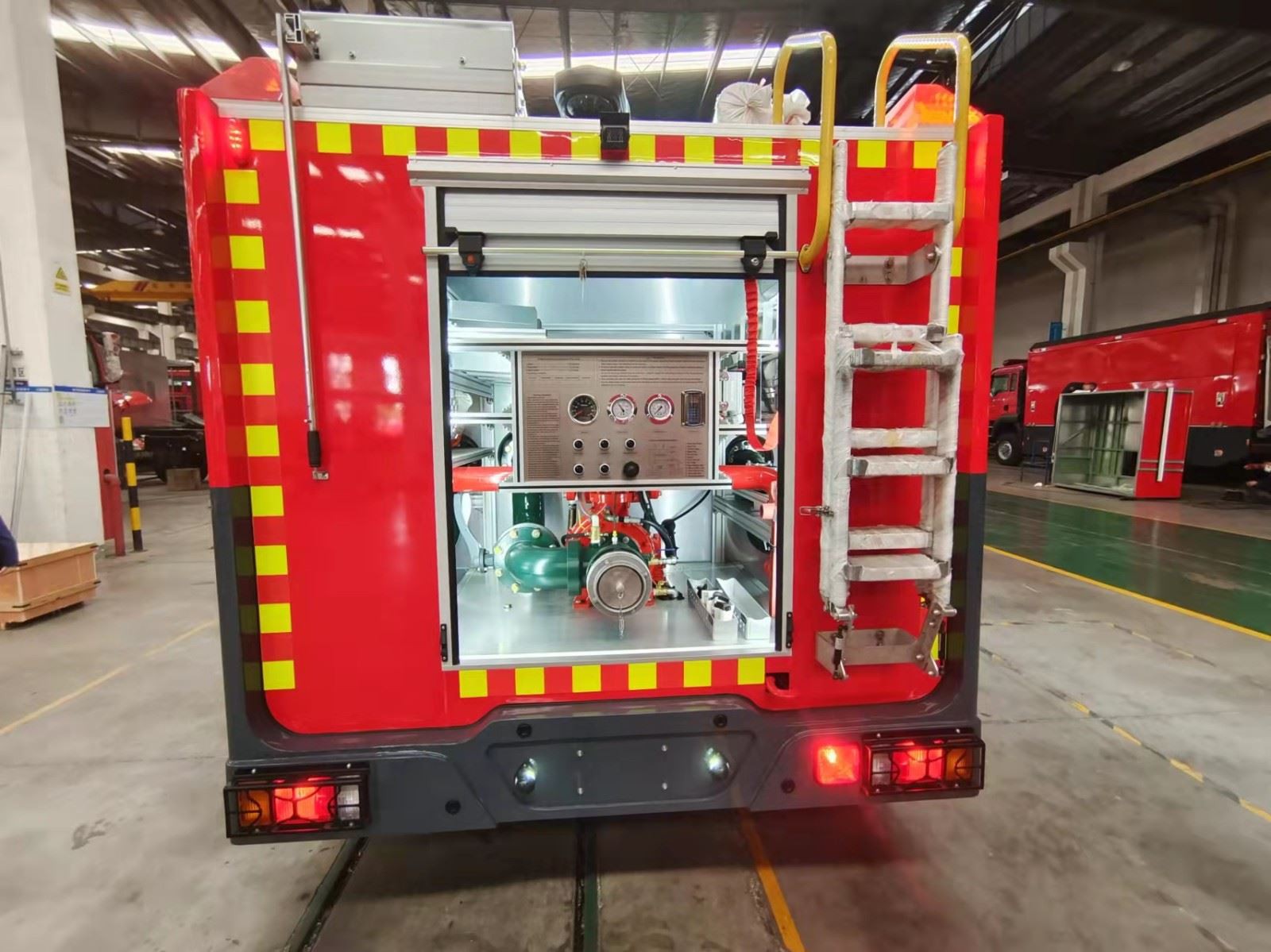

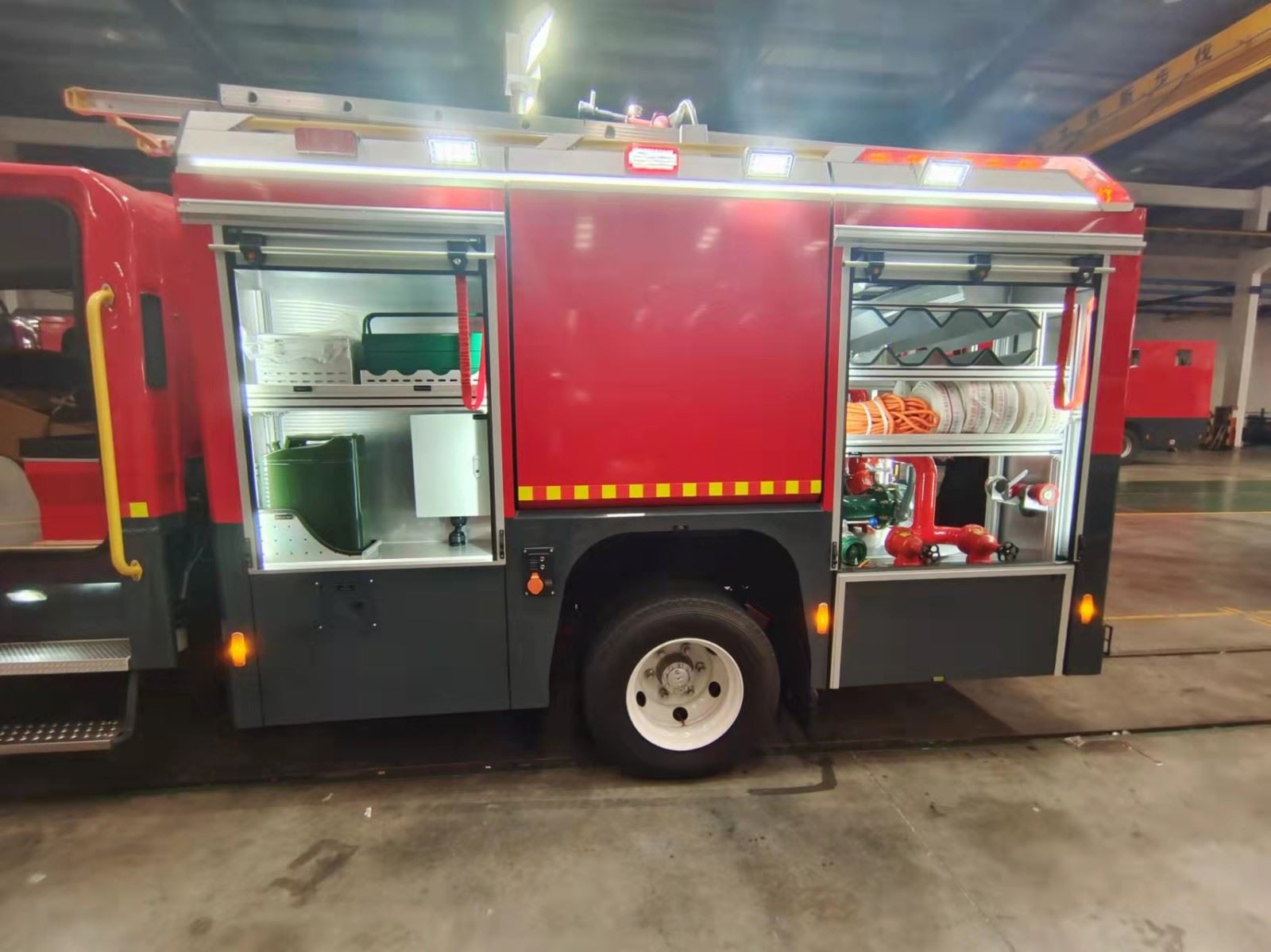

Several Details of This Fire Truck
Internal Cabin: Equipped with reversing alarm buzzer, main power switch, reversing camera, monitor and two USB interfaces.Besides the apparatus in the original vehicle, reversing radar and video system are installed.
Tank Material: High quality 304 stainless steel with special anti- corrosion treatment; Welding is qualified in strict accordance with national technical standard. Vertical and horizontal swinging plates are equipped in the tank. The thickness of roof, wall, clapboard, bottom of tank are 3mm.
Power Take Off: Full power sandwich type power take-off. Ratio is 1.375. Special designed gears and bearing that it can be used 6 hours non-stop.
Fire Pump: Flow rate is 2400L/min@1.0Mpa. Suction height: is 7m. Priming time of pumping water is ≤35s. Ratio is 1.44.
Fire Monitor: Flow rate is 30L/s. Range is 55m. Rotation angle is 360°. Installing position is the roof of the vehicle.
CHINA ISUZU 700P 4x2 4 Tons Fire Fighting Truck Specs (Euro V)
Vehicle Model | QL1100A8HAY(P90EA) | |

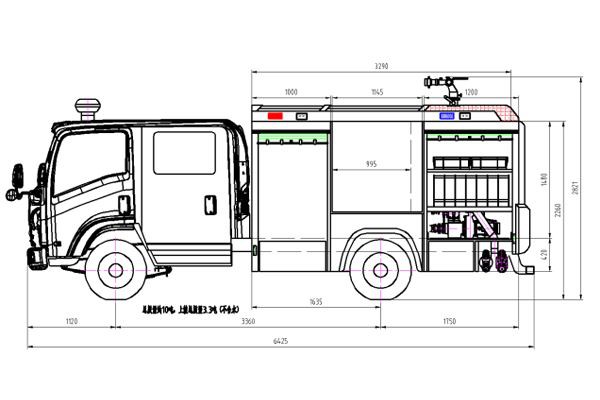

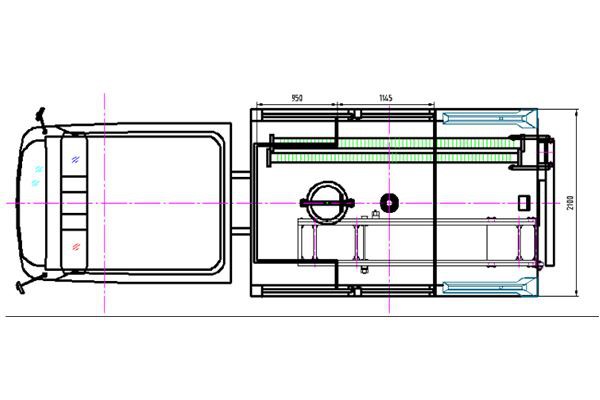

Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 6425×2170×2821mmmm |
Wheelbase: | 3360mm | |
Front Wheel Distance: | 1680 mm | |
Rear Wheel Distance | 1650 mm | |
Front/Rear Suspension | 1110/1525mm | |
Weights and Capacities | Curb Weight: | 6470Kg |
GVW: | 10000Kg | |
Axle Loads: | 3350/6650kg (Two-axis group) | |
Engine | Engine Model: | 4HK1-TC51 |
Max output: | 141Kw | |
Displacement: | 5193ml | |
Horsepower: | 190Ps | |
Exhaust Gas Treatment Technology: | DPF | |
Cabin | Number of Seats: | 3+4 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Fuel tank | Capacity | 100L |
Water Tank: | Tank Capacity: | 4000L Water |
Fire Pump: | Model: | China Rongshen CB10/40-RS |
Configurations | 1 | Power Steering System |
2 | Air Conditioning | |
3 | ABS | |
4 | Free Maintenance Battery | |
5 | Retro-Reflective Marking | |
