China ISUZU NKR light duty refrigeration truck chassis, using the best brand refrigerated, Thermo King， and the top box size is 3045×1624×1565mm， with wheelbase 2490mm, The world's leading Isuzu 4KH1CN5LS, engine was developed by Isuzu in Japan, using MSB-5SM manual transmission and if you want this refrigeration truck,we can equip with the refrigerator, our trucks is equiped with good quality and competitive price. Please contact us, if you wanna know the quotation.

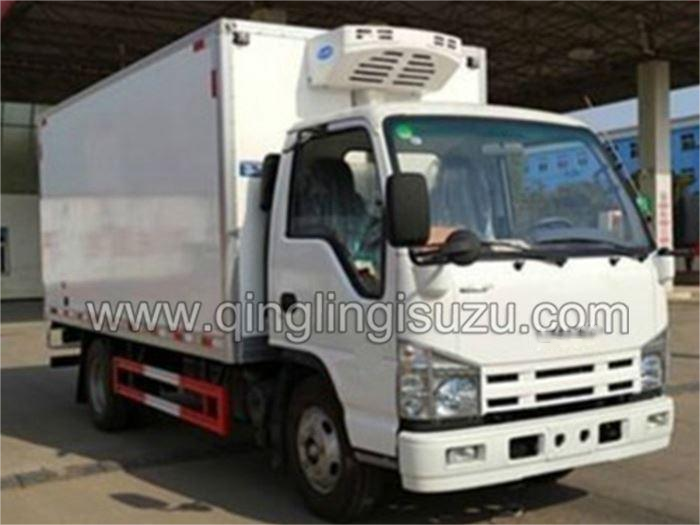

QINGLING ISUZU NKR/100P Refrigeration Vehicle adopts high-quality components for both the chassis and refrigerated tops. With high economy and strong stability, it is the best choice for urban transportation.
ISUZU CHINA 100P 4x2 Refrigeration Truck Specs(Euro V )
Vehicle Model: | QL1042A6HAY | |

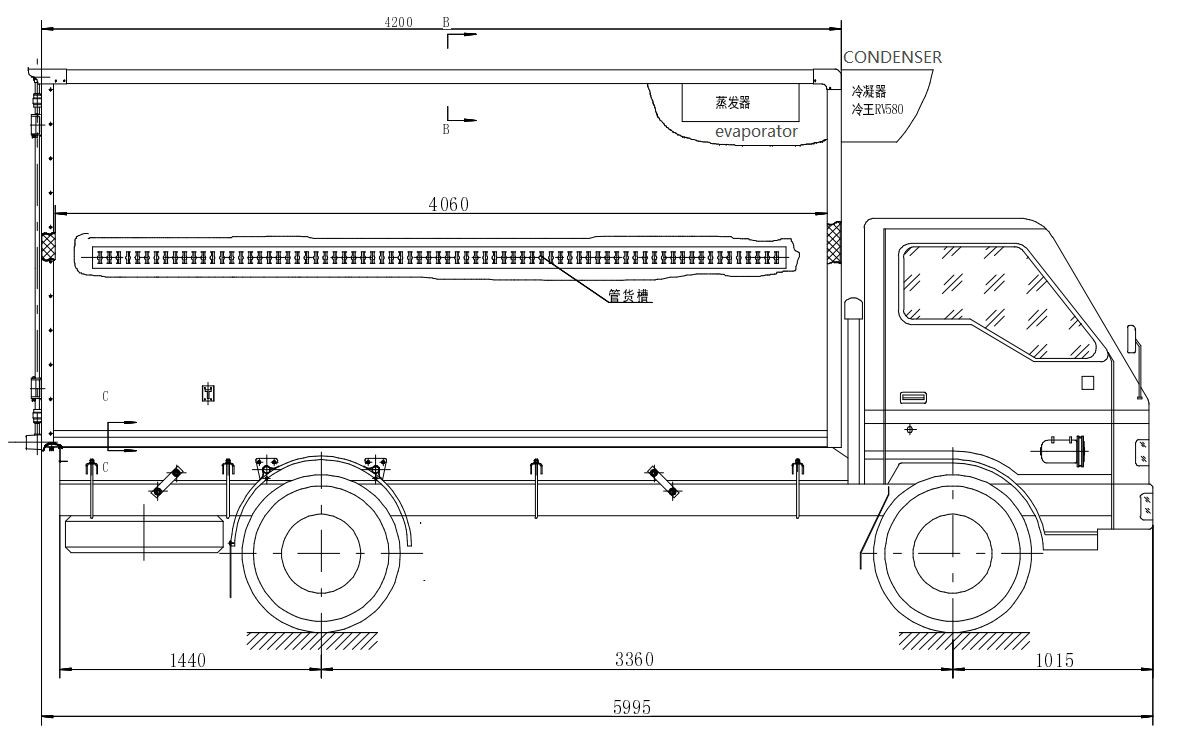

Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 5900*1980*2200mm |
Wheelbase: | 3360mm | |
Front/ Rear Wheel Distance: | 1504/1525mm | |
Rear Axle Ratio: | 5.571 | |
Leaf Spring: | 3/3+2 | |
Weights and Capacities | Curb Weight: | 2000kg |
GVW: | 7300kg | |
Engine | Engine Model: | 4KH1CN5HD |
Max output: | 96Kw | |
Displacement: | 2999ml | |
Horsepower: | 130Ps | |
Exhaust Gas Treatment Technology： | DPF | |
Transmission | Transmission: | MSB-5 |
Forward Gear: | 5 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Cabin | Number of Seats: | 2 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 7.00R16-14 | |
Fuel Tank | Capacity: | 100L |

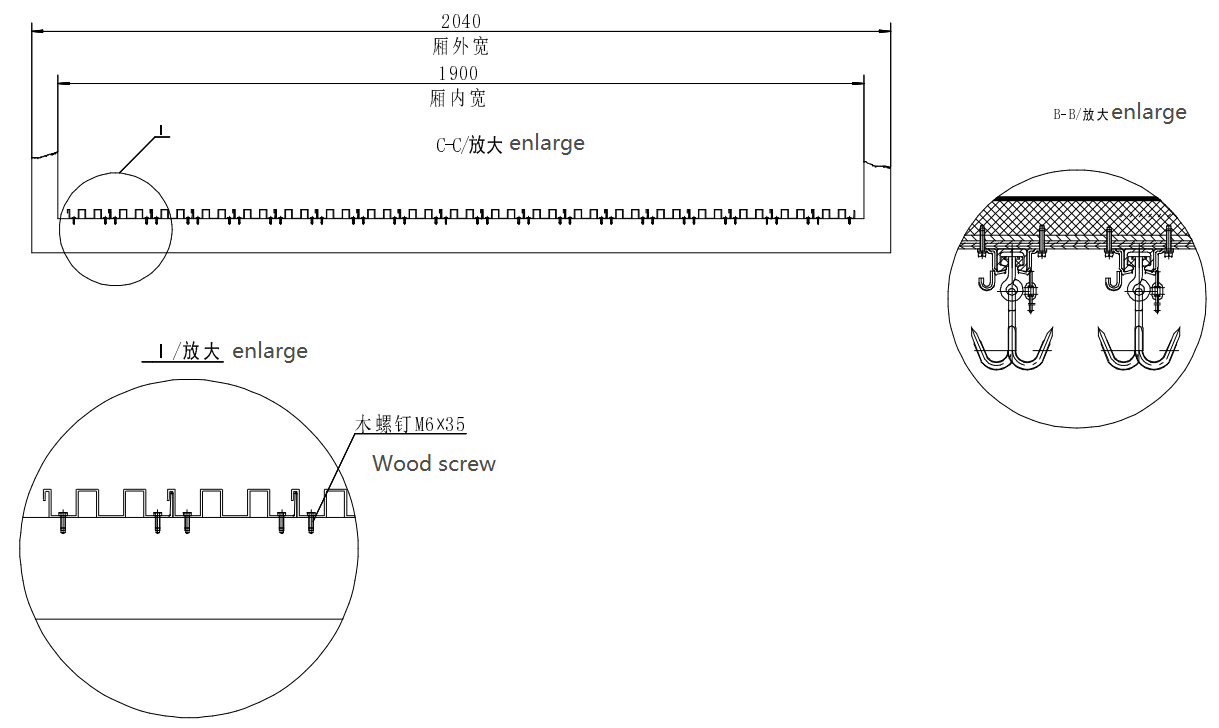

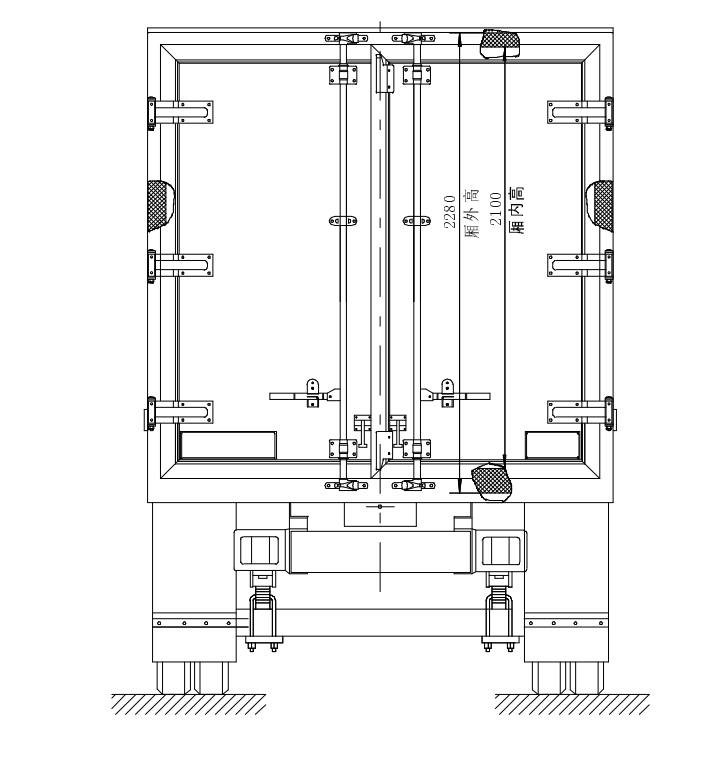

Top Parameters | Box Outer Dimension: | 4200x2040x2280mm |
Box Inner Dimension: | 4060x1900x2100mm | |
Material of the Body： | Body inner-the outer skin is made of glass plate, and the partition layer is made of polyurethane foam | |
The door frame, our reduction, hinge plate quality is 304 stainless steel plate | ||
Refrigeration Machine: | Thermo King RV580 | |
Configurations: | Power Steering System | |
Air Conditioning | ||
Tubeless Tire | ||
Cab Tilting Mechanism | ||
ABS | ||
Free Maintenance Battery | ||
Notes: Above specs is for reference, any other specs needed, or special requirements, can be discussed accordingly.
