This dump truck is modified from Qingling Isuzu FVR chassis applied with dumper body with 10 m³volume. It’s powered by Isuzu engine model 6HK1-TCL with 240 horsepower. The exhaust gas after treatment system applied in the truck is DPF, and the emission standard is Euro 5. The highest speed of the truck reaches 105km per hour. And the transmission has 6 forward gears and 1 backward gear. It’s capable to reach reliable durability and strength with a reasonable price.
Description of Vocational Features
This dump truck is a great option for users who want to load various materials, especially materials used at construction sites such as stones, cement, sand, soil, bricks, and many other heavy or loose materials. The dumper hoist is operated hydraulically which would be convenient for users to unload loose materials or heavy items without an effort. Any special requirements for the specifications and configurations can be discussed and met accordingly.
ISUZU CHINA FVR 10m³Dump Truck Specifications (Euro V)
Vehicle Model: | QL1180XMFRY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 7525×2520×3280mm |
Wheelbase: | 4500mm | |
Front/ Rear Wheel Distance: | 1960/1855mm | |
Front/Rear Suspension | 1335/1735mm | |
Rear Axle Ratio: | 5.571 | |
Approach/Departure angle: | 15/17° | |
Leaf Spring: | 9/7+7 | |
Weights and Capacities | Curb Weight: | 8015kg |
Payload: | 9855kg | |
GVW: | 18000kg | |
Axle Loads: | 6500/11500kg | |
Engine | Engine Model: | 6HK1-TCL |
Max output: | 177Kw | |
Displacement: | 7790ml | |
Horsepower: | 240HP | |
Exhaust Gas Treatment Technology： | DPF | |
Transmission | Transmission: | MLD-6Q |
Forward Gear: | 6 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Air Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Generator | 24V-50A | |
Cab | Number of Seats: | 3 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 11.00R20 16PR | |
Fuel Tank | Number: | 1 |
Capacity: | 200L | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Speed Light&Large Indoor Light | |
4 | ABS | |
5 | Central Lock | |
6 | Power Window | |
7 | Driving Data Recorder | |
8 | Retro-reflective Marking | |
9 | Free Maintenance Battery | |
Box Parameters | Dumper Capacity: | 10m³ |
Box Inside Dimension | 4500x 2300x1000(mm) | |
Cylinder | Middle lifting | |
Thickness of Dump body | Bottom 4mm side 4mm | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

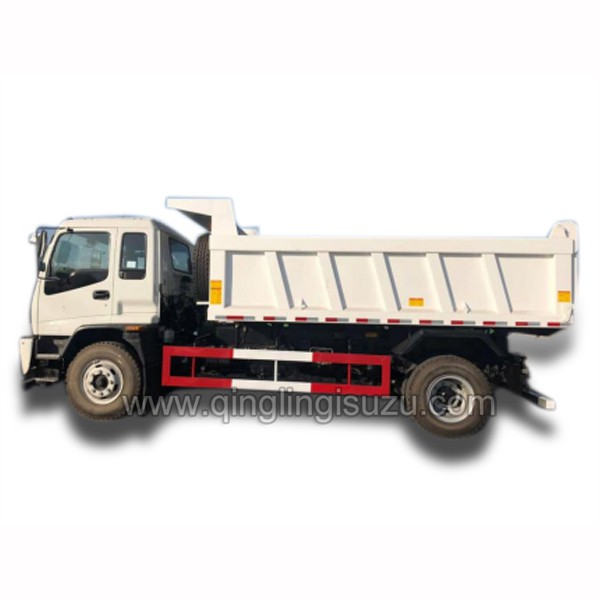

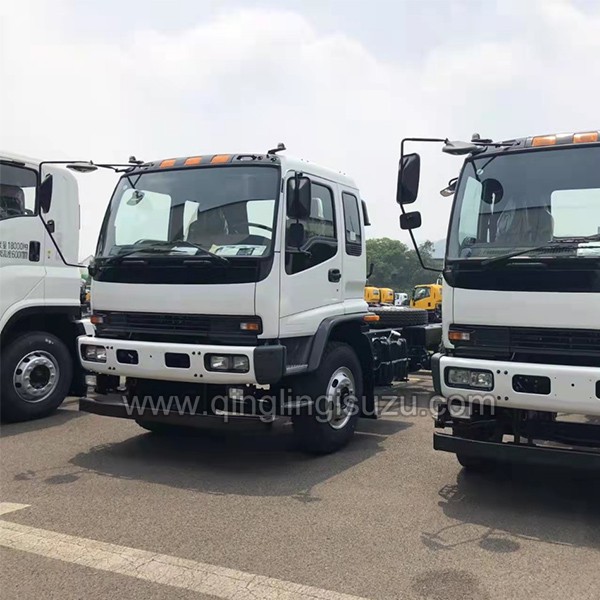

Photo for Reference:
