As one of the most professional New 4x2 Hydraulic Dump Truck with ISUZU Chassis， we're featured by quality products and competitive price. Please rest assured to buy or wholesale bulk discount from our factory. Also, quotation is available....
About our company:
ISUZU CHINA(QINGLING) is specialized in exporting all kinds of modified vehicles of China ISUZU truck chassis all over the world, our professional team are always strive to provide the best service and advanced technologies to the customers.
New Cabin
The new cabin model is adopted front headlight follow-up steering technology,new 700P cabin is more beautiful, confortable and safe.
New Power
ISUZU world-leading 4KH1CN-type brand new diesel engine with fully-electronic precise control and high-pressure common rail is employed, with stronger power, lower oil consumption, better oil adaptability and better low-temperature starting property: The new 4KH1CN engine, in line with the high quality of the ISUZU 4KH1 engine, matches the world-class Bosch diesel all-electronic precision control high-pressure common rail injection system. The system has high injection pressure and can improve the visible pollutant emission of the engine. Multi-injection of electronic injectors, precise and precise injection of diesel fuel to improve engine noise and vibration. Supercharged intercooling technology,SCR Post processing system. The engine has strong power, low fuel consumption, reliable and durable.
More environmentally friendly
Qingling ISUZU Trucks have achieved low pollution and low fuel consumption throughout the life cycle, and the perfromance of the whole vehicle is simultaneously improved, the noise is lower, the jitter is smaller, and the vehicle is quieter and more comfortable.
More economical (fuel efficient, urea)
Low fuel consumption, compared with other vehicles of the same load capacity, fuel economy 10%-15%; high reliability, maintenance costs low.
Stronger oil adaptability
Taking full account of user's conditions of use, matching development, improved the adaptability of oil products.

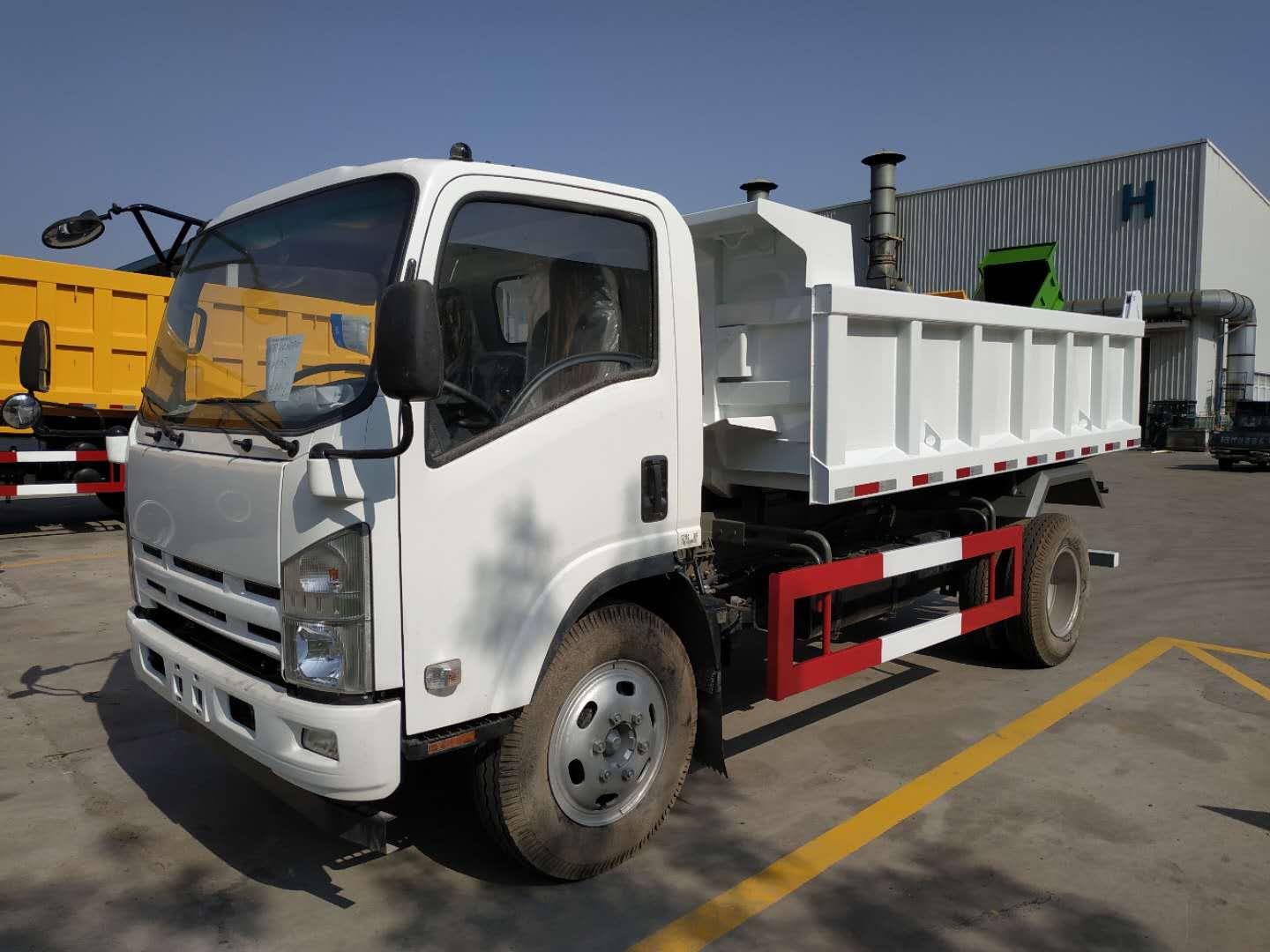

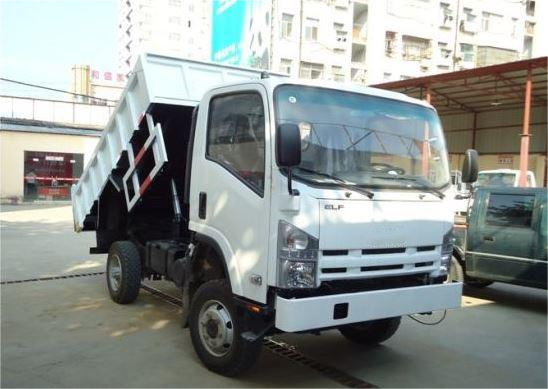

China Hot sale Dump Truck With ISUZU 700P Chassis
Vehicle Parameters | Vehicle Model: | QL10909KARY |
Overall Dimension(L x W x H) | 6980*2170*2350mm | |
Curb Weight: | 2970Kg | |
GVW: | 9390Kg | |
Wheelbase: | 3815mm | |
Drive Type: | 4x2 | |
Engine | Engine Model: | 4HK1-TCG40 |
Engine Power: | 139(kw) | |
Delivery Capacity: | 5193(ml) | |
Horsepower: | 189PS | |
Transmission | Transmission: | MLD-6Q |
Forward Gear: | 6 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Seats | Front Seat: | 3 |
Chassis | Front/ Rear Wheel Distance: | 1680/1650mm |
Front/ Rear suspension: | 1110/2055 | |
Axle Loads: | 3150/6240 | |
Tires: | 7(including spare tire) | |
Tire Model: | 8.25R16 14PR | |
Configuration: | 1 | Power Steering |
2 | AC | |
3 | Retro-reflective Marking | |
4 | ABS | |
5 | Free Maintenance Battery | |
6 | Radial Tire | |
Top Parameter | Dumper Capacity: | 6.5m3 |
Box Inside Dimension(L x W x H)： | 4000x2000x800mm | |
Cylinder： | Middle Lift, Single hydraulic Jack | |
Thickness of Dump body： | Bottom 4 side 3 |
