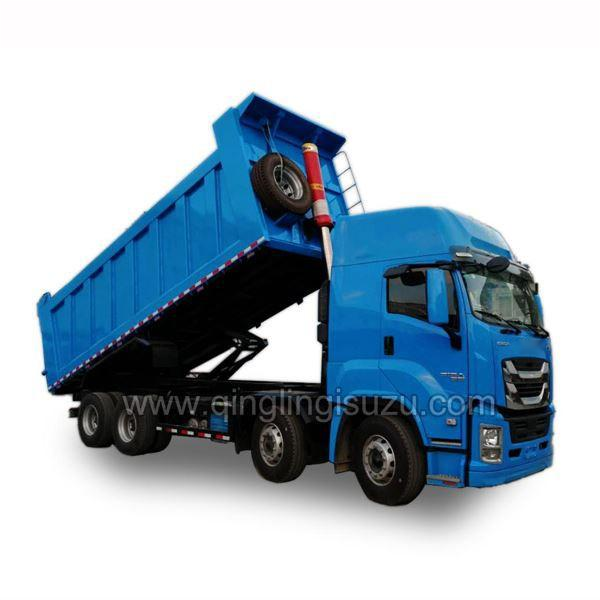

This dump truck is modified from Qingling Isuzu VC61 chassis mounted with dumper body of 30m³volume. It’s powered by Isuzu engine model 6WG1-TCG52 with 420 horsepower. The exhaust gas after treatment system applied in the truck is SCR, and the emission standard is Euro 5. The highest speed of the truck reaches 100km per hour. And the transmission has 8 forward gears and 1 backward gear. It’s capable to reach reliable durability and strength with a reasonable price.
Description of Vocational Features
QingLing ISUZU 8x4 Dump Truck:
-----ISUZU 6W Engine:
Pursuing the fuel consumption perfromance of the practical speed zone with high frequency of use, from supercharging to cooling, fuel multi-point injection, the pursuit of maximizing fuel cost reduction, achieving large torque, large economic speed and strong power.
Low speed and high twist, continuous maximum torque in the 800-1400 rpm range
------ZF Transmission:
The latest 4th generation ZF gearbox with high transmission efficiency (0.965-0.98), more fuel-efficient, high reliability
Lightweight: Optimized two-section aluminum housing, light weight 100 kg
Long life: short stroke long life synchronizer; gear full grinding process; built-in oil pump forced lubrication; optimized speed ratio distribution; low noise design
Fuel-saving: ZF 8-speed products, the engine is running at economic speed
Lightweight and flexible shifting: with shift servo
Dump Body：
A tipper is consisted of vehicle chassis, hydraulic lifting system, cargo body and takeoff device. The dump truck is used in the civil engineering, usually jointly operated with excavators, loaders, belt conveyor and other engineering equipment, constituting a load-transport-unload production line, which finishes earth, sand, powder material loading-transportation work.
With superior reliable product perfromance and rich accessories choices, we make a user-customized platfrom.
The whole vehicle axle load distribution is reasonable to meet the user needs.
Low gravity center, good discharge stability and vehicle perfromance.
Optimization of the structure of the hydraulic lifting system, high work efficiency, the strong lifting ability, the light overall weight, stable and reliable operation.
Pursuing the fuel consumption perfromance of the practical speed zone with a high frequency of use, from supercharging to cooling, fuel multi-point injection, the pursuit of maximizing fuel cost reduction, achieving large torque, large economic speed, and strong power.
ISUZU CHINA VC61 8x4 30m³Dump Truck Specifications (Euro V)
Vehicle Model: | QL5420GXFW2VDHY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 10268x2550x3670mm(varies to final design) |
Wheelbase: | 1850+4575+1370mm | |
Front Wheel Distance: | 2060/2060mm | |
Rear Wheel Distance: | 1855/1855mm | |
Rear Axle Ratio: | 5.571 | |
Leaf Spring: | 7/7/10 | |
Weights and Capacities | Curb Weight: | 17500Kg(varies to final design) |
GVW: | 42000Kg | |
Axle Loads: | 8000/8000/26000kg | |
Engine | Engine Model: | 6WG1-TCG52 |
Max output: | 308Kw | |
Displacement: | 9839ml | |
Horsepower: | 420Ps | |
Exhaust Gas Treatment Technology： | SCR | |
Without VGT | ||
Transmission | Transmission: | ZF8S2030T0 |
Forward Gear: | 8 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Air Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Cab | Cabin Type: | High Roof with Two Beds |
Number of Seats: | 2 | |
Chassis | Drive Type: | 8x4 |
Tires: | 13(Including Spare Tire) | |
Tire Model: | 315/80R22.5 20PR | |
Fuel Tank | Number: | 1 |
Capacity: | 400L | |
Tops Parameters | Dump Body Parameter | 7300x2300x1800mm |
Hydraulic Cylinder | HYVA191 | |
Thickness of the dump body | Bottom 12mm, Side 10mm | |
Configurations: | Power Steering | |
Air Conditioner | ||
Tubeless Tire | ||
ABS | ||
Free Maintenance Battery | ||
Central Lock | ||
Power Window | ||
Data Recorder | ||
PTO | ||
Air Suspension Seat | ||
Air Suspension Cabin | ||
Front Chrome Plate Kit | ||
Aluminum Alloy Fuel Tank | ||
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly

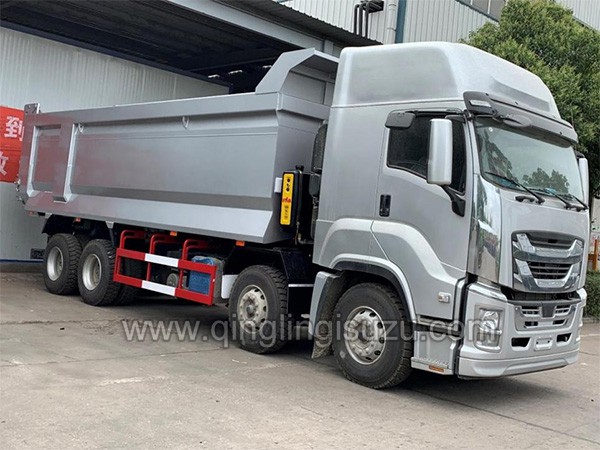

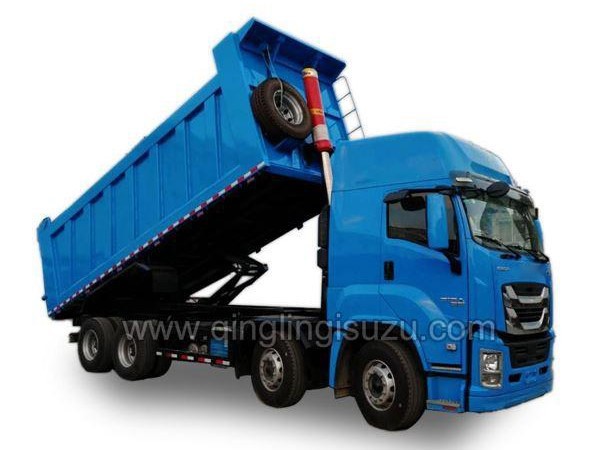

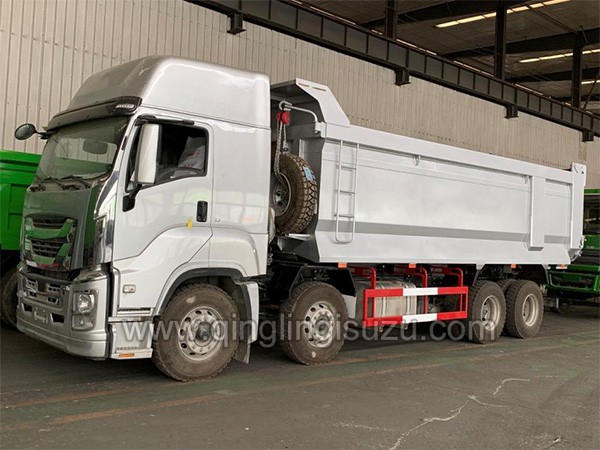

Photo for Reference:
