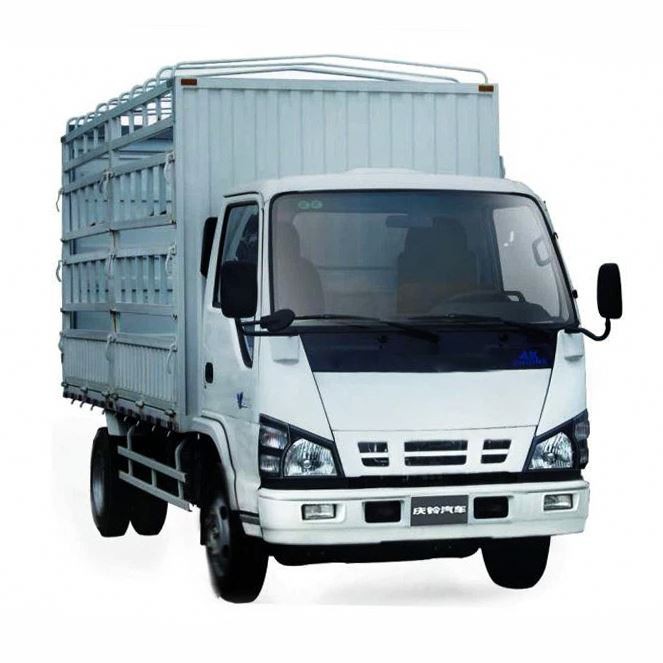

4x2 Fence Stake Truck QINGLING

Strong power, strong carrying capacity and fast running speed
Low fuel consumption,more prominent ultra-low operation cost at the time of high fuel price
Long service life, reliable durability and ultra-low maintenance cost

4x2 Fence Stake Truck QINGLING

ISUZU 600P ELF Fence Stake Truck Characteristics:

--Strong power, strong carrying capacity and fast running speed
--Low fuel consumption,more prominent ultra-low operation cost at the time of high fuel price
--Long service life, reliable durability and ultra-low maintenance cost
--High safety and unique impact energy-absorption safety system
--Comfortable and service car type riding comfortability
--Environment-friendly and clean emission,harmonious with the nature
--Low service life cost,being able to create more value for the customer
--It is provided SCR/PF/DPF three kinds of post-processing systems, PF and DPF without addition of urea. No urea device has better refitting adaptability.
--It has wide cabin space, and big bending rate rearview mirror that can provide wider field of view. Its front glass and side window post A have only 7o dead zone. It is provided with car-type seat, soft steering wheel, curved surface metallization and high quality audio syslem that is refreshing and comfortable so that the driver would not feel fatigue during a long distance driving.
--ISUZU world-leading 4KH1CN-type brand new diesel engine with fully-electronic precise control and high-pressure common rail with stronger power, lower oil consumption, better oil adaptability and better low-temperature starting property. The engine has strong power, low fuel consumption, reliable and durable.
--suitable for agricultural and sideline products transportation and livestock animals transportation. In the shape design, the truck is designed to be beautiful in appearance, reasonable in internal structure
--advanced in technology, high-quality materials as the skeleton, high in strength, and light in weight, easy to install, safe and reliable.

ISUZU CHINA 600P Stake Truck Specifications:

Truck Brand

QingLing

Driving Type

Left Hand Drive

Overall Dimension(L*W*H)

5995*2160*2960mm

GVW

6960Kg

Curb Weight

2880Kg

Axle loading:

2380/4580

Wheelbase

3360

F/R Track

1505/1525

Approaching Angle/Departure Angle(o)

24/16

Tire No.

7(Including Spare Tire)

Tire

7.00R16 14PR

Color:

Optional

Max Speed(Km/h)

110Km/h

Engine

Engine System

4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders

Emission  Route

SCR

Model

4KH1CN5HS

Fuel Type

Diesel Engine

Max output

94Kw

Horsepower:

130HP/120HP

Max Torque

290N.m/1500rpm

Emission Standard

Euro V

Displacement:

2999ml

Transmission:

Model:

MSB-5SM

Type

Manual

Forward/Reverse

5F/1R

Brake System:

Service Brake

Vacuum Boosting Hydraulic brake

Parking Brake

Drive Shaft Drum Brake

Auxiliary System

Engine Exhaust Brake

Electrical System

Battery

2*12V-60Ah

Alternator

14V-60A

Starter

12V/2.5Kw

Cab

Single-Row Cab with Air Conditioner

Other Equipment:

Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking



Notes:Above specs is for reference, any other specs needed or special requirements can be discussed accordingly.
