ISUZU high-quality chassis to adapt to various modifications: rich engine power specifications, wheelbase series, combined with more than 10 kinds in medium tonnage Modified truck chassis, can meet the needs of various types of top-loading, wide and straight frame, convenient for all kinds of top-loading layout, quick response to the user to partially strengthen the frame; fuel tank muffler and other chassis components can be changed according to needs, easy to modify Arrangement.

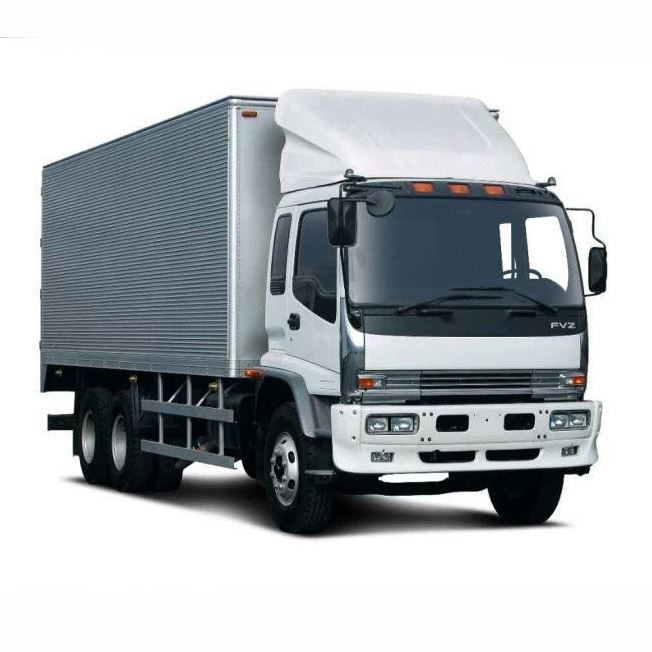

QingLing ISUZU FVZ Van Truck:
--The world's leading 6H engine: displacement 8L, maximum power: 221kw, maximum torque: 980N.m.
--ISUZU high-quality chassis to adapt to various modifications: rich engine power specifications, wheelbase series, combined with more than 10 kinds in medium tonnage Modified truck chassis, can meet the needs of various types of top-loading, wide and straight frame, convenient for all kinds of top-loading layout, quick response to the user to partially strengthen the frame; fuel tank muffler and other chassis components can be changed according to needs, easy to modify Arrangement.
--Adopting DPF after-treatment system: no need to add urea, reduce user cost; no urea device, better adaptability.
--New super-high pressure common rail fuel injection system: injection pressure up to 200Mpa, flexible timing of fuel injection timing, fuel injection duration, injection pressure, fuel injection law, up to 5 levels of fuel injection, making diesel engine economy Sex, power, and emissions perfromance have been greatly improved, and the noise and vibration of the engine have been greatly improved.
--High-efficiency and stable EGR: The electronically controlled and powerfully cooled EGR system can achieve stable high EGR rate over the entire speed range and effectively reduce emissions.
--New medium-cooled booster: The electronically controlled variable-section turbocharger system (VGS) greatly improves low-speed torque and responsiveness, and can adapt to various complicated road conditions under heavy load conditions.
--With advanced fuel-saving function: the advanced and unique downhill and flat road gears in the electronic control module are slid and fuel-saving.
ISUZU CHINA FVZ Commercial Van Truck Specifications:
| Truck Brand |
QingLing |
|
Driving Type |
Left Hand Drive |
|
Overall Dimension(L*W*H) |
11750*2550*3960mm |
|
Box Dimension(L*W*H) |
9350*2450*2550mm |
|
GVW |
25000kg |
|
Curb Weight |
10830kg |
|
Axle Loading: |
7000/18000kg |
|
Wheelbase |
5700+1300mm |
|
F/R Track |
1960/1855/1855 |
|
Approaching Angle/Departure Angle(o) |
15/9 |
|
Tire No. |
11(Including Spare Tire) |
|
Tire |
11.00R20 18PR |
|
Color: |
Optional |
|
Max Speed(Km/h) |
105Km/h |
|
Engine |
|
|
Engine System |
4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 6 Cylinders |
|
Emission Route |
DPF |
|
Model |
6HK1-TCH |
|
Fuel Type |
Diesel Engine |
|
Max output |
219Kw |
|
Horsepower： |
301Hp |
|
Max Torque |
980N.m |
|
Emission Standard |
Euro V |
|
Displacement: |
7790ml |
|
Transmission: |
|
|
Model: |
FAST 9JS119TA |
|
Type |
Manual |
|
Forward/Reverse |
9/1 |
|
Brake System: |
|
|
Service Brake |
Dual Circuit Compressed Air Brake |
|
Parking Brake |
Spring Energy, Compressed Air Operating on Rear Wheels |
|
Auxiliary System |
Engine Exhaust Brake |
|
Electrical System |
|
|
Battery |
2*12-70Ah |
|
Alternator |
28V-70Ah |
|
Starter |
24V/7.5Kw |
|
Cab |
|
|
One Row and Half Cab with Air Conditioner |
|
|
Other Equipment: |
|
|
Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking,Data Recorder,Vehicle Speed Light |
|
Notes:Above specs is for reference, any other specs needed or special requirements can be discussed accordingly.
