2020 FVR 6 Cylinders 10m³ Multifunction Dust Suppression Truck

Vehicle Parameters

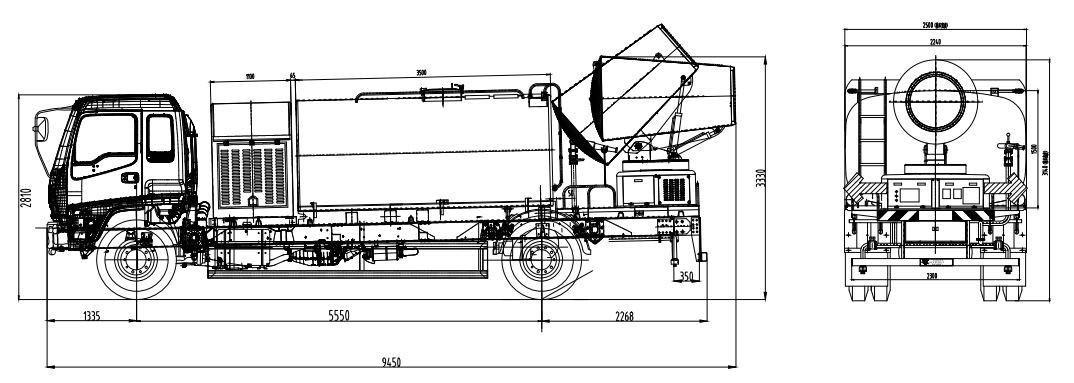

Chassis Dimension(L x W x H)

9450x2500x3330mm

Tank Dimension(L x W x H)

3500x2240x1500mm

Curb Weight:

10230Kg

GVW:

18000Kg

Wheelbase:

5550mm

Drive Type:

4x2

Brake System:

Air Brake

Cylinder

6 In-line

Engine Model:

6HK1-TCL

Max output:

177Kw

Displacement:

7790ml

Horsepower:

241Ps

Transmission

Transmission:

MLD-6Q

Transmission type:

6 Speed Manual(6 Forward, 1Reverse)

Seats

Front Seat:

3

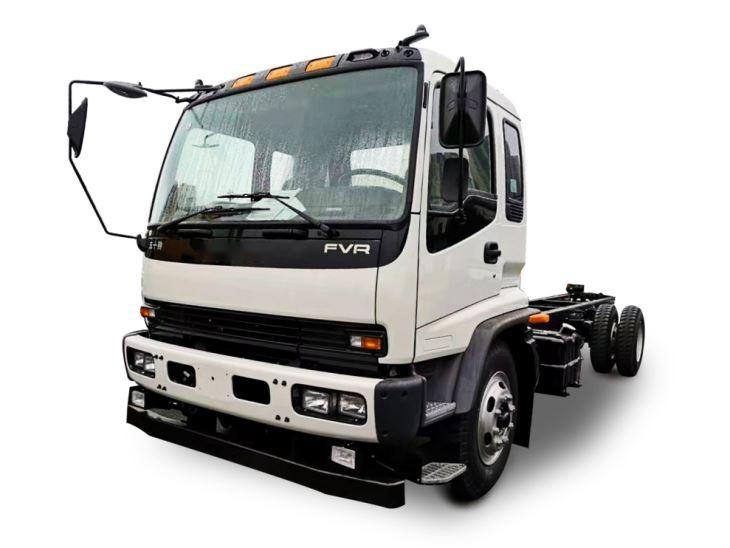

Chassis

Front Track:

1960mm

Rear Track:

1855mm

Axle Loads:

6500/11500kg

Rear Axle Ratio:

5.571

Tires:

7(Including spare tire)

Tire Model:

11.00R20 16PR

Standard Chassis Configurations

1

Power Steering

2

AC

3

Speed light, large indoor light

4

ABS

5

Free Maintenance Battery

6

Central Lock

7

Power Window

8

Data Recorder

Top Configurations

10m³stainless steel tank, stainless steel pump, stainless steel piping and stainless steel ball valve

PTO, front spray, rear spray, high-pressure water gun, pressure outlet, self-flowing water discharge, with operation monitoring, high and low level alarm device, standard equipped with HUALI ii 80-meter spray machine, WEICHAI generator set

HUALI M08 Parameters

No Wind Range:

80m

Total Power:

31kw

Blower Power:

22kw

Diesel Engine Power:

60kw

Diesel pump and motor models:

WP4.1D66E200(WEICHAI 4-Cylinder)

Diesel Engine Emissions:

Euro II

Pump Power:

7.5kw

Electric Generator Voltage:

380V

Electric Generator Current:

90A

Cover Area:

15000m²

Diameter of droplets：

20-200µm

Operating ambient temperature:

0-50°

Water consumption:

3.5m³/h

Water pump pressure:

1.5-2Mpa(centrifugal pump)

Rotation Angle:

±180°

Back leaning Angle:

-10°～55°

Control mode:

Wireless remote control + touch screen

Blower Dimension:

2000x1155x2360mm

Blower Weight:

1250Kg

Generator set:

50Kw
