ISUZU CHINA VC61 6x4 15m³ Multifunction Dust Suppression Truck with ISUZU electric chassis,15m³stainless steel tank, stainless steel pump, stainless steel piping and stainless steel ball valve,the configurations includes PTO, front spray, rear spray, high-pressure water gun, pressure outlet, self-flowing water discharge, with operation monitoring, high and low level alarm device, HUALI ii 100-meter spray machine, WEICHAI generator set, if you wanna know more, please feel free to contact us...
ISUZU CHINA VC61 6x4 15m³ Multifunction Dust Suppression Truck (Euro V)
| Vehicle Model: | QL1250U1SDZY | |
Vehicle Parameters | Overall Dimension(L x W x H) | 11010x2500x3380mm |
Tank Dimension(L x W x H) | 4450x2250x1600mm | |
Curb Weight: | 13900Kg | |
GVW: | 25000Kg | |
Wheelbase: | 4565+1370mm | |
Drive Type: | 6x4 | |
Brake System: | Air Brake | |
Engine | Cylinder | 6 In-line |
Engine Model: | 6UZ1-TCG51 | |
Max output: | 257kw | |
Displacement: | 9839ml | |
Horsepower: | 350ps | |
Max torque: | 1422N.m | |
Transmission | Transmission: | ZF8S2030T0 |
Transmission type: | 8 Speed Manual(8Forward,2 Reverse) | |
Cabin | Cabin Type: | Plat roof single sleeper |
Front Seat: | 2 | |
Chassis | Front Wheel Distance: | 2065mm |
Rear Wheel Distance: | 1855/1855mm | |
Rear Axle Ratio: | 5.571 | |
Tires: | 11(Including spare tire) | |
Tire Model: | 12R22.5 18PR | |
Standard Configuration: | 1 | Power Steering |
2 | AC | |
3 | Tubeless Tire | |
4 | ABS | |
5 | Free Maintenance Battery | |
6 | Central Lock | |
7 | Power Window | |
8 | Data Recorder | |
9 | Air suspension Seat | |
10 | Air suspension Cabin | |
11 | Aluminum alloy fuel tank | |
Top Configurations | 15m³stainless steel tank, stainless steel pump, stainless steel piping and stainless steel ball valve | |
PTO, front spray, rear spray, high-pressure water gun, pressure outlet, self-flowing water discharge, with operation monitoring, high and low level alarm device, HUALI ii 100-meter spray machine, WEICHAI generator set | ||
HUALI M08 Parameters
| No Wind Range: | 100m |
Total Power: | 39Kw | |
Blower Power: | 30Kw | |
Diesel Engine Power: | 60Kw | |
Diesel pump and motor models: | WP4.1D66E200（Weichai 4 Cylinder） | |
Diesel Engine Emissions: | Euro II | |
Pump Power: | 7.5Kw | |
Electric Generator Voltage: | 380V | |
Electric Generator Current: | 90A | |
Cover Area: | 25000m² | |
Diameter of droplets： | 20-200µm | |
Operating ambient temperature: | 0～50℃ | |
Water consumption: | 9.5m³/h | |
Water pump pressure: | 1.5～2Mpa(centrifugal pump) | |
Rotation Angle: | ±180° | |
Back leaning Angle: | ﹣10°～55° | |
Control mode: | Wireless remote control + touch screen | |
Blower Dimension: | 2435x1155x2360mm | |
Blower Weight: | 1370Kg | |
Generator set: | 50Kw | |

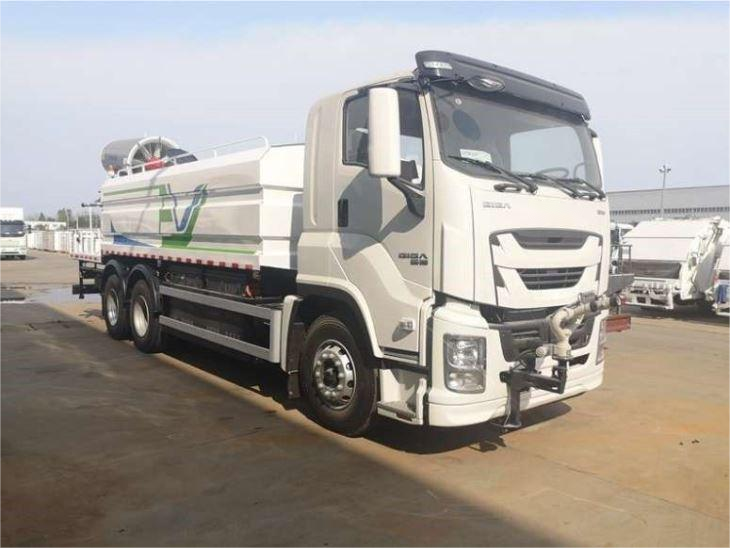

Product photo:
Quality guarantee:
1.We introduce all kinds of advanced production and manufacturing equipment from Europe, America and Japan to from a complete process manufacturing chain from blank manufacturing, parts and assembly manufacturing to vehicle assembly; configure domestic and foreign high-quality, precise, physico-chemical, measurement and testing facilities to set the world advanced level Production equipment and quality testing facilities are integrated to provide a solid hardware foundation for producing high quality products.
2.We have a strong quality awareness and high technical skills of the staff, continue to carry out technical and technical training, select a number of groups of employees to study abroad, invite foreign parties to factory guidance, colleges and universities to plant school, entrust colleges and universities to train senior technicians, carry out standard operation training and technician training.Employees' quality awareness and technical skills have been greatly improved, which provides an important guarantee for the production of high-quality products.
we have various equipments for testing and experiment, so we can guarantee every truck you bought is 100% elaborate.
We can also have a lot die models, and mature die production line, so if you have demend we can support, too!
We are mainly engaged in vehicle design, production line equipment exporting.
Our company owns broad product and marketing channels, professional team and innovative services, and will always provide customers the latest products and best services;
We focus on selling directly on the terminal market and local agent. Local services and technical support will be provided according to the local condition. We aim to achieve multilateral win-win with all partners by striving for excellent and exploiting opportunity in the automotive and spare parts industries.
Looking forward to a long-term, win-win cooperation with you!
