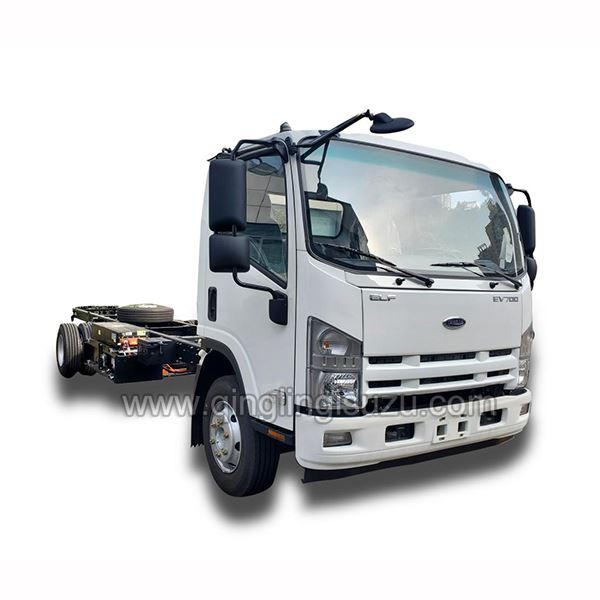

Qingling Commercial Electric Truck Chassis Payload 5.5 tons

The e-motor, for the model EV700, the CATL LFP, 1 hour charging, has the power of 218.54kwh, allowing for a driving range up to 240km. Payload capacity is going up to 5490kg, and the front/rear axle capacity is 3700/6800kg. 163ps makes it possible to be modified onto different body applications.

Qingling  Commercial Electric Truck Chassis Payload 5.5 tons

EV700 is the typical model of the light duty electric truck chassis with more horsepower. From cutting-edge fuel efficiency and industry-leading powertrain system to our current zero-emission commercial electric truck, we come a long way to be actively supportive for the basic policy of environmental reservation. Different countries require different fuel conditions to operate internal combustion engines well, now with the background of launching electric vehicles, there won’t be any difference among the world.

The e-motor, for the model EV700, the CATL LFP, 1 hour charging, has the power of 218.54kwh, allowing for a driving range up to 240km. Payload capacity is going up to 5490kg, and the front/rear axle capacity is 3700/6800kg. Wheelbase 4175mm and 7430mm overall length make it possible to be modified onto different body applications.

We are ready to enter the future by building the greenest possible commercial trucks on the road. We will also continue to stick on our mission of better profiting our customers. No business will ever getting bigger by only benefiting itself.



Vehicle Model:

QL1100BEVEMLAY



Dimensions and Parameters

Overall Dimension(L x W x H)

7430×2200x2285mm

Wheelbase:

4175mm

Front/ Rear Wheel Distance:

1680/1650mm

Front/Rear Suspension:

1110/2145mm

Weights and Capacities

Curb Weight:

4830kg

GVW:

10500kg

Axle Loads:

3700/6800kg



Driving Motor

Model:

TZ370XS-LKM0851

Type:

PMSM

Rated/Peak Power:

75/120kw

Cabin

Number of Seats:

3

Chassis

Drive Type:

4x2

Tires:

7(Including 1 Spare Tire)

Battery

Type:

LFP

Capacity:

218.54kwh

Charge mode:

Fast Charge(2h)

Standard Configurations:

Air Conditioning

Radio

ABS
