Qingling Commercial Electric Cargo Truck Payload 3.4 tons

EVK100 is the typical model of electric light duty trucks for three passengers, modified with the aluminum cargo van box and accommodating up to 21m3, has the power of 106kwh, allowing for a driving range up to 260km. This model has a payload capacity of 3400kg and the front/rear axle capacity of which is 2580/4720kg.

[[smallImgAlt]]

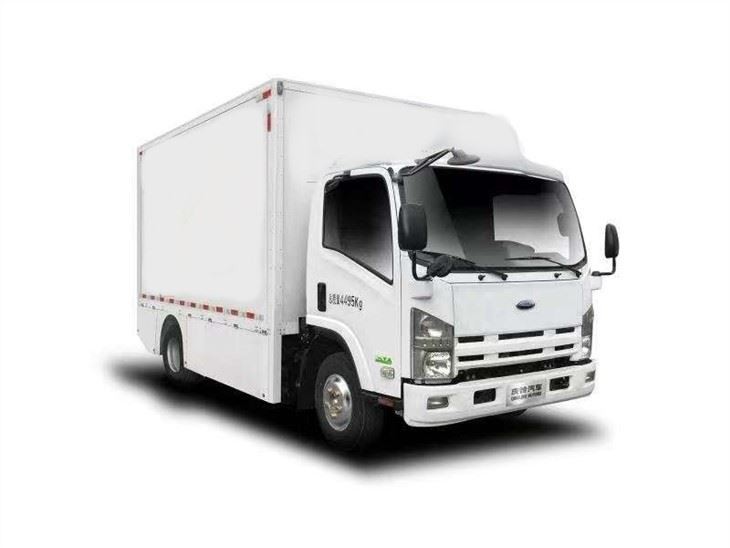

EVK100 is the typical model of electric light duty trucks for three passengers, representing the upcoming idea of easy driving, easy working and easy operating. Modified with the aluminum cargo box and accommodating up to 21m3, it is the best means of transportation for city logistics, and intercity delivery.

The e-motor, for the model EVK100, the CATL LFP, has the power of 106kwh, allowing for a driving range up to 260km. This model has a payload capacity of 3400kg and the front/rear axle capacity of which is 2580/4720kg to realize the function of carrying more cargo during the urban distribution of goods in various industries.

Nowadays, the fuel price has grown fast. Using electricity would be an efficient way to save energy and money. Furthermore, the e-motor plus aluminum box comes with lightweight, low energy consumption, simple structure, and easy maintenance. Moreover, the recycling value of the aluminum boxes is higher, and the vehicle can also get a considerable income when it needs to calculate the residual value.



Chassis Model:

QL5070XXYBEVECDA







Vehicle Parameters

Overall Dimension (L x W x H)

6790×2110×3110 (mm)

Curb Weight:

3685kg

GVW:

7300kg

Wheelbase:

3815mm

Drive Type:

Motor Direct Driving





Motor

Motor Model:

YTD060W23

Motor Type:

PMSM

Rated /Peak Power:

60/110kw

Rated /Peak Peak torque:

310/1000N.m



Battery

Battery Brand/ Model:

CATL/ CB220

Battery Type:

LFP

Battery Capacity:

106.95kwh



Perfromance

Maximum Speed:

100km/h

Driving Range:

260km

Max Climb Capability

30%

Cabin

Front Seat:

3









Chassis

Front/ Rear Wheel Distance:

1685/1525mm

Front/Rear Suspension

1110/1865mm

Axle Loads:

2580/4720kg

Approach/Departure angle:

18/13

Leaf Spring:

3/3+2,8/6+5

Tires:

7 (Including Spare Tire)

Tire Model:

7.00R16 14PR



Standard Configuration:

Power steering system

Air Conditioning

ABS

Tubeless Tire



Box

Box Dimension

(L x W x H)

4970×2050×2100mm

Material

Aluminum
