The multifunction dust suppression vehicle is provided with a dust suppression system. The mode of injecting water into the air is used to make the particles suspended in the air to condense and fall down, thus reducing the quantity of suspended particles in the air. In addition, a low-pressure water pipeline system is also provided, which has the function of low-pressure washing. At present, the multifunction dust suppression vehicle has been widely applied in urban air purification, dust suppression in various storage yards (e.g. coal yard and port material yard), spraying disinfection at various public places (e.g. airport, expressway, station and dock) and refuse landfills, and moisturizing and cooling of highway and sports field.

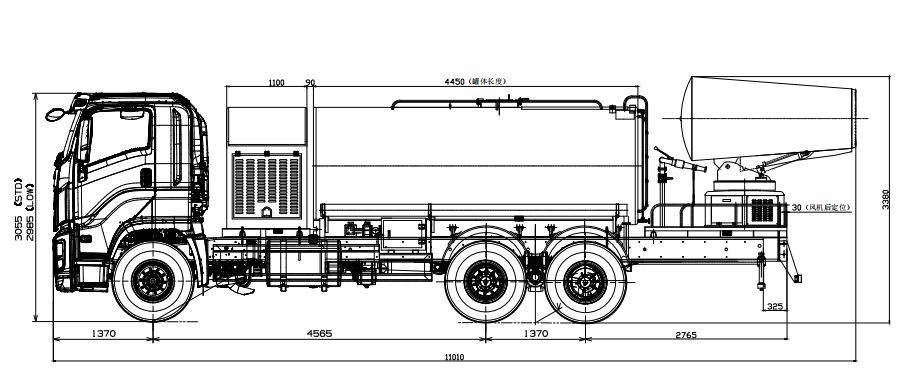

| Vehicle Parameters | Overall Dimension(L x W x H) | 11010x2500x3380mm |
| Tank Dimension(L x W x H) | 4450x2250x1600mm | |
| Curb Weight: | 13900Kg | |
| GVW: | 25000Kg | |
| Wheelbase: | 4565+1370mm | |
| Drive Type: | 6x4 | |
| Brake System: | Air Brake |

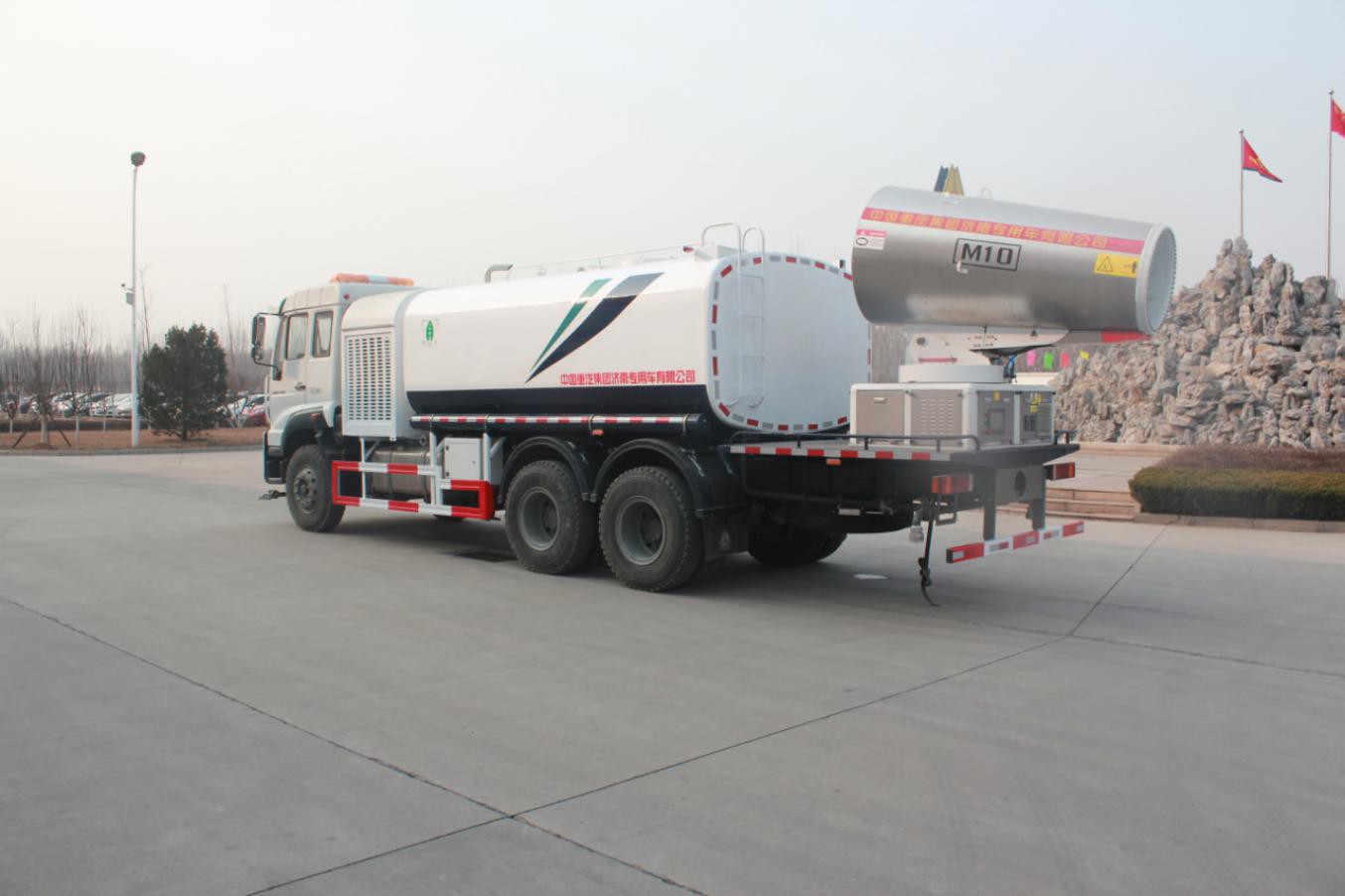

Product photo:
ISUZU CHINA VC61 6x4 15m³ Multifunction Dust Suppression Truck (Euro V)
Vehicle Model: | QL1250U1SDZY | |
Vehicle Parameters | Overall Dimension(L x W x H) | 11010x2500x3380mm |
Tank Dimension(L x W x H) | 4450x2250x1600mm | |
Curb Weight: | 13900Kg | |
GVW: | 25000Kg | |
Wheelbase: | 4565+1370mm | |
Drive Type: | 6x4 | |
Brake System: | Air Brake | |
Engine | Cylinder | 6 In-line |
Engine Model: | 6UZ1-TCG51 | |
Max output: | 257kw | |
Displacement: | 9839ml | |
Horsepower: | 350ps | |
Max torque: | 1422N.m | |
Transmission | Transmission: | ZF8S2030T0 |
Transmission type: | 8 Speed Manual(8Forward,2 Reverse) | |
Cabin | Cabin Type: | Plat roof single sleeper |
Front Seat: | 2 | |
Chassis | Front Wheel Distance: | 2065mm |
Rear Wheel Distance: | 1855/1855mm | |
Rear Axle Ratio: | 5.571 | |
Tires: | 11(Including spare tire) | |
Tire Model: | 12R22.5 18PR | |
Standard Configuration: | 1 | Power Steering |
2 | AC | |
3 | Tubeless Tire | |
4 | ABS | |
5 | Free Maintenance Battery | |
6 | Central Lock | |
7 | Power Window | |
8 | Data Recorder | |
9 | Air suspension Seat | |
10 | Air suspension Cabin | |
11 | Aluminum alloy fuel tank | |
Top Configurations | 15m³stainless steel tank, stainless steel pump, stainless steel piping and stainless steel ball valve | |
PTO, front spray, rear spray, high-pressure water gun, pressure outlet, self-flowing water discharge, with operation monitoring, high and low level alarm device, HUALI ii 100-meter spray machine, WEICHAI generator set | ||
HUALI M08 Parameters
| No Wind Range: | 100m |
Total Power: | 39Kw | |
Blower Power: | 30Kw | |
Diesel Engine Power: | 60Kw | |
Diesel pump and motor models: | WP4.1D66E200（Weichai 4 Cylinder） | |
Diesel Engine Emissions: | Euro II | |
Pump Power: | 7.5Kw | |
Electric Generator Voltage: | 380V | |
Electric Generator Current: | 90A | |
Cover Area: | 25000m² | |
Diameter of droplets： | 20-200µm | |
Operating ambient temperature: | 0～50℃ | |
Water consumption: | 9.5m³/h | |
Water pump pressure: | 1.5～2Mpa(centrifugal pump) | |
Rotation Angle: | ±180° | |
Back leaning Angle: | ﹣10°～55° | |
Control mode: | Wireless remote control + touch screen | |
Blower Dimension: | 2435x1155x2360mm | |
Blower Weight: | 1370Kg | |
Generator set: | 50Kw | |
Notes: Above specs is for reference, any other specs needed, or special requirements, can be discussed accordingly.
