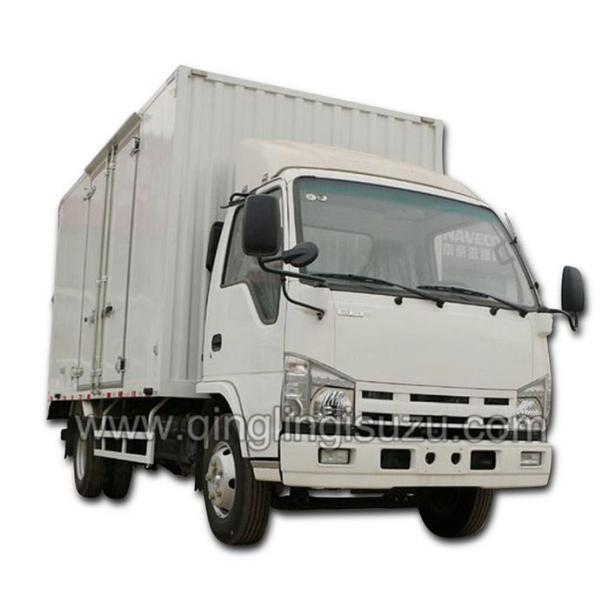

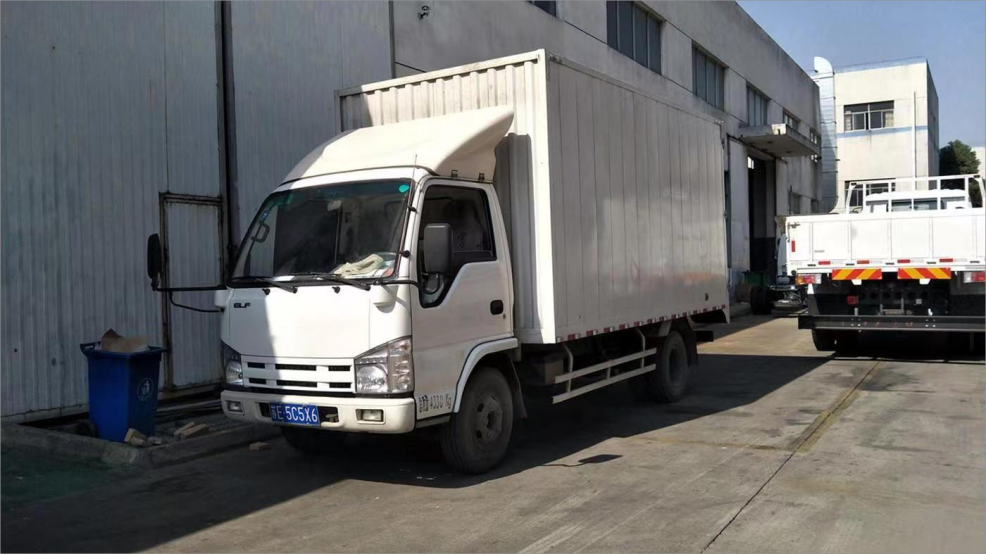

This cargo body van truck is from QINGLING, and the engine tech is from Japan, the cargo body is made of Steel Corrugated, size is 5050×1784×1810(mm), can payload 4 tons.The transmission is Manual MSB-5MT, with 5 froward gear,if you wanna buy a truck apply to carry goods, and Express distribution you can choose this truck, if you want the quotation, please feel free to contact us.
100P 4x2 Van Truck Specifications (Euro IV )
Overall Dimension(L x W x H) | 6790×1880×2900(mm) | |
Box Dimension: | 5050×1784×1810(mm) | |
Vehicle Parameters | Box Material: | Steel Corrugated |
Curb Weight: | 2900kg | |
GVW: | 7030kg | |
Wheelbase: | 3815mm | |
Drive Type: | 4x2 | |
Engine Model: | 4JB1-CN | |
Engine | Engine Power: | 72w |
Displacement: | 2771ml | |
Horsepower: | 98Ps |
The materia of the cargo body is made depends on your demand!
Our Quality Goals:
1. 100% emissions meet national environmental protection regulations and customer requirements.
2. The manufacturing quality of the engine, cab and other assembly and spare parts is 100% up to the product quality standard.
3. Customer infromation processing rate is 100%.
Quality authentication:
100P 4x2 Van Truck Specifications (Euro IV )
Chassis Model: | QL5070XXY3KAR | |
Overall Dimension(L x W x H) | 6790×1880×2900(mm) | |
Box Dimension: | 5050×1784×1810(mm) | |
Vehicle Parameters | Box Material: | Steel Corrugated |
Curb Weight: | 2900kg | |
GVW: | 7030kg | |
Wheelbase: | 3815mm | |
Drive Type: | 4x2 | |
Engine Model: | 4JB1-CN | |
Engine | Engine Power: | 72w |
Displacement: | 2771ml | |
Horsepower: | 98Ps | |
Transmission: | Manual MSB-5MT | |
Transmission | Forward Gear: | 5 Speed Gear |
Backward Gear: | 1 Speed Gear | |
Seats | Front Seat: | 2 |
Front/ Rear Wheel Distance: | 1504/1425mm | |
Front/Rear Suspension | 1015/1960mm | |
Chassis | Axle Loads: | 2370/4660kg |
Rear Axle Ratio: | 5.375 | |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 7.00R16 14PR | |
1 | Power steering system | |
Standard Configuration: | 2 | Air Conditioning |
3 | Retro-reflective Marking | |
4 | Tubeless Tire | |
5 | ABS | |
6 | Free Maintenance Battery | |
Optional Configuration: | 1 | Cab metal paint |
2 | Air diversion device | |
3 | Single side door/Double side door | |
4 | Speed limiting device (80km/h) | |
5 | Central lock | |
6 | Electric doors and windows | |
7 | Cab tilting mechanism (included in KV100) |
