This semi-tractor head is capable to tow a trailer with a mass of 40000 kg. It is powered by an Isuzu engine 6WG1-TCG52 with 420 horsepower which is commonly believed to be powerful and durable. The exhaust gas treatment technology SCR applied in the vehicle makes it comply with Euro 5 emission standards. The transmission has 16 forward gears and 8 backward gears.
Description of Vocational Features:
This tractor head is a heavy-duty towing engine that provides the motive power for hauling a load. It is widely used to carry various heavy loads and tons of cargo over long distances. And its function of loading and transporting heavy-duty trucks efficiently is irreplaceable. Any special requirements regarding the specification and configuration can be discussed and met accordingly.
ISUZU CHINA VC61 6x4 Tractor Head Specifications (Euro V)
Vehicle Model: | QL4250W1NDZ(D16YZ) | |
Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 6895×2540×3970mm |
Wheelbase: | 3385+1370mm | |
Front Wheel Distance: | 2065mm | |
Rear Wheel Distance: | 1875/1875mm | |
Front/Rear Suspension | 1370/770mm | |
Rear Axle Ratio: | 3.909 | |
Approach/Departure angle: | 17/42° | |
Leaf Spring: | 7/10 | |
Weights and Capacities | Curb Weight: | 9100kg |
Payload: | 15670kg | |
GVW: | 24900kg | |
Axle Loads: | 6900/18000kg (Two-Axis Group) | |
Total mass of semi-trailer: | 40000kg | |
Maximum allowable load | 16020kg | |
Engine | Engine Model: | 6WG1-TCG52 |
Max output: | 309Kw | |
Displacement: | 15681ml | |
Horsepower: | 420HP | |
Exhaust Gas Treatment Technology： | SCR | |
Transmission | Transmission: | ZF16S2230TO |
Forward Gear: | 16 Speed Gear | |
Backward Gear: | 2 Speed Gear | |
Brake | Air Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Generator | 24V-60A | |
Cab | Number of Seats: | 2 |
Cabin Type: | High Roof Two Beds | |
Chassis | Drive Type: | 6x4 |
Tires: | 11(Including Spare Tire) | |
Tire Model: | 315/80R22.5 16PR | |
Fuel Tank | Number: | 1 |
Capacity: | 600L | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Central Lock | |
4 | Power Window | |
5 | Driving Data Recorder | |
6 | Tubeless Tire | |
7 | ABS | |
8 | Free Maintenance Battery | |
9 | Aluminum Alloy Gas Tank | |
10 | Widened Bumper | |
11 | Front Chrome Kit | |
12 | Air Suspension Cabin | |
13 | Air Suspension Seat | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

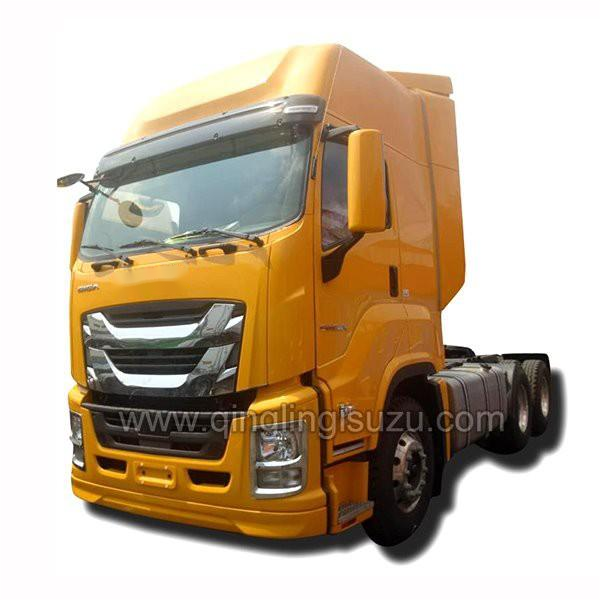

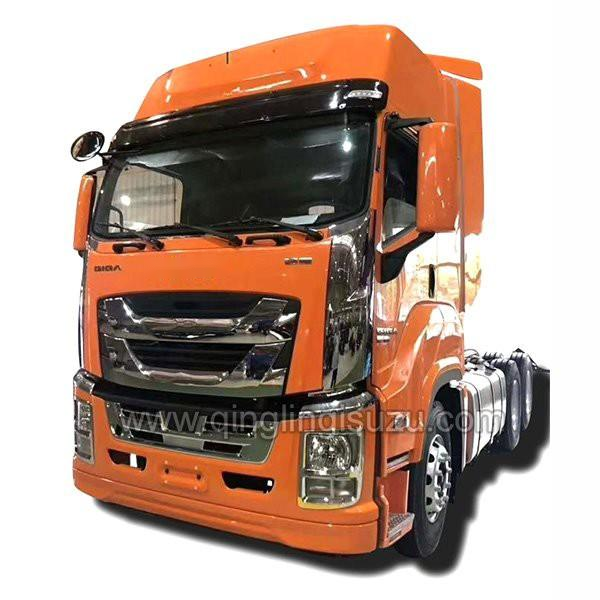

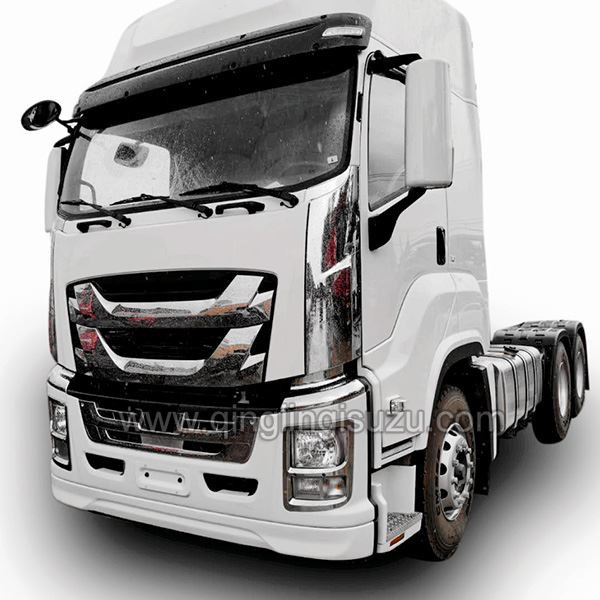

Photo for Reference:
