As one of the most professional VC61 6x4 Dangerous Goods Tractor by isuzu suppliers in China, we're featured by quality products and competitive price. Please rest assured to buy or wholesale bulk discount china hot sale vc61 heavy truck 22m³ garbage compactor truck by isuzu from our factory. Also, quotation is available.

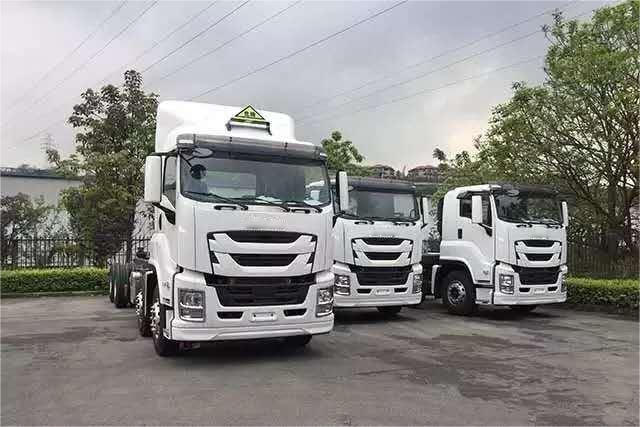

Picture and simple specs:
Vehicle Parameters | Overall Dimension(L x W x H) | 6895×2540×3055mm |
Curb Weight: | 9060Kg | |
GVW: | 24900Kg | |
Trailer quality: | 39710Kg | |
Wheelbase: | 3385+1370mm | |
Drive Type: | 6x4 | |
Brake System: | Air Brake |
ISUZU CHINA VC61 6x4 Dangerous Goods Tractor Specs (Euro V)
Vehicle Model: | QL4251W1NDZ | |
Vehicle Parameters | Overall Dimension(L x W x H) | 6895×2540×3055mm |
Curb Weight: | 9060Kg | |
GVW: | 24900Kg | |
Trailer quality: | 39710Kg | |
Wheelbase: | 3385+1370 mm | |
Drive Type: | 6x4 | |
Brake System: | Air Brake | |
Engine | Cylinder | 6 In-line |
Engine Model: | 6WG1-TCG52 | |
Max output: | 309w | |
Displacement: | 15681ml | |
Horsepower: | 420ps | |
Transmission | Transmission: | ZF16S2230T0 |
Transmission type: | 16 Speed Manual(16 Forward,2 Reverse) | |
Cabin | Cabin Type: | Plat roof single sleeper |
Front Seat: | 2 | |
Chassis | Front Wheel Distance: | 2065mm |
Rear Wheel Distance: | 1875mm | |
Front/Rear Suspension: | 1370/770 mm | |
Axle Loads: | 7000/11000kg | |
Approach/Departure Angle: | 17/42° | |
Leaf Spring: | 4/- | |
Rear Axle Ratio: | 4.555 | |
Tires: | 11(Including spare tire) | |
Tire Model: | 315/80R22.5 16PR | |
Vehicle Configuration: | 1 | Power steering system |
2 | Air Conditioning | |
3 | Tubeless Tire | |
4 | ABS | |
5 | Free Maintenance Battery | |
6 | Central Lock | |
7 | Power Window | |
8 | Driving Data Recorder | |
9 | Air Suspension Cabin | |
10 | Air suspension Seat | |
11 | 50#Fifth Wheel | |
12 | Front Axle Disc Brake | |
13 | Main Power Switch | |
14 | Exhaust Tailpipe Front | |
15 | Dangerous Goods Sign Light | |
16 | Spark Extinguisher | |
17 | Speed Limiter | |
18 | Aluminum Gas Storage Tank | |
19 | Front Chrome Kit | |
20 | Electrostatic Towing Belt | |
