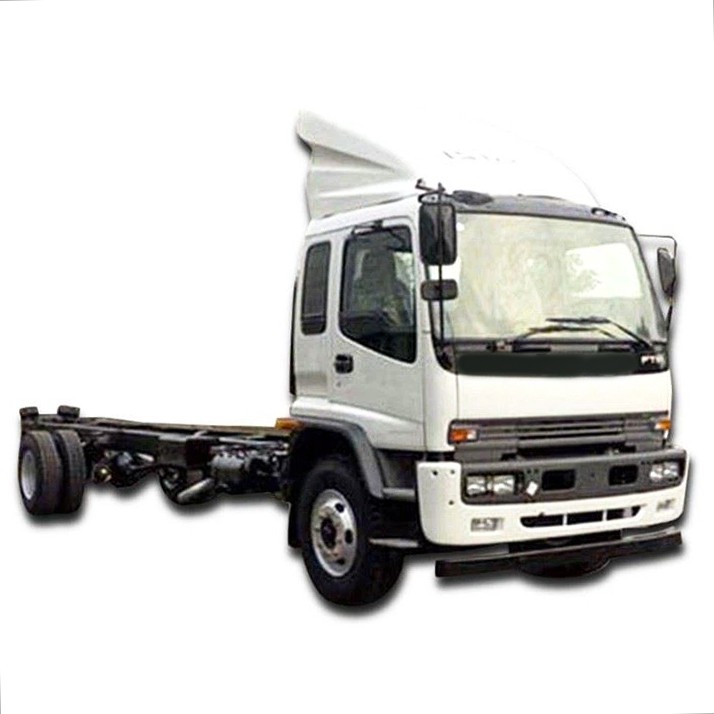

QINGLING FTR Diesel Truck Payload 13 Tons

The ISUZU FTR Diesel Truck is powered by the world's leading Isuzu 4H engine with 6 wheels. Adopt DPF after-treatment system no need Adblue. A capacity of 13 tons, has different choose of wheelbase which are be applicable into various use like garbage truck and cleaning truck.

QINGLING  FTR Diesel Truck Payload 13 Tons

ISUZU FTR 4x2 Diesel Truck is powered by the world's leading Isuzu 4H engine. The 4HK1-TC50 engine adopts high-pressure common rail, precision electronic control, multi-stage injection, optimized combustion and exhaust gas recirculation, and two-stage fuel filtration to achieve high power, high torque, low fuel consumption, low emissions, and low emissions. noise. The perfect combination Diesel Truck.

Adopting DPF post-processing system: FTR euro 5 Diesel Truck no need to add adblue, reducing user cost; No adblue device, better adaptability for modification.

The FTR cab is made of high-strength galvanized steel and has a closed structure to create an effective collision protection zone and protect the occupants in the driving area. The key corrosion parts are made of special materials such as engineering synthetic resin, and the grounding improves the corrosion resistance of the cab. The FTR air suspension seat can be adjusted automatically, even for long-distance driving. The truck cab can be tilted forward 60 degrees for easy inspection and maintenance which is an ideal for medium-sized truck.

Vehicle Model

QL5180XXYGTFRY

Vehicle Dimensions and Parameters

Overall Dimension

7570×2490x2810mm

Wheelbase

4500mm

Front/ Rear Wheel Distance

1960/1855mm

Front/Rear Suspension

1335/1735mm

Weights and Capacities

Curb Weight

5250 (kg)

GVW

18000kg

Axel Loads

6500/11500 kg

Engine

Model

4HK1-TC50

Power

151Kw

Displacement

5193ml

Exhaust Gas Treatment Technology

DPF

Cab

Number of Seats

3

Chassis

Drive Type

4x2

Tires

7(Including Spare Tire)

Fuel Tank

Capacity

200L

Configurations

Power Steering System

Air Conditioner

Retro-reflective Marking

ABS

Free Maintenance Battery
