The FTR is powered by the world's leading Isuzu 4H engine. The 4HK1-TC50 engine uses high-voltage common rail, precision electronic control, multi-stage injection, optimal combustion and exhaust gas recirculation, and dual-stage fuel filtration to achieve high power, high torque, low fuel consumption and low emissions, low noise. The perfect combination.

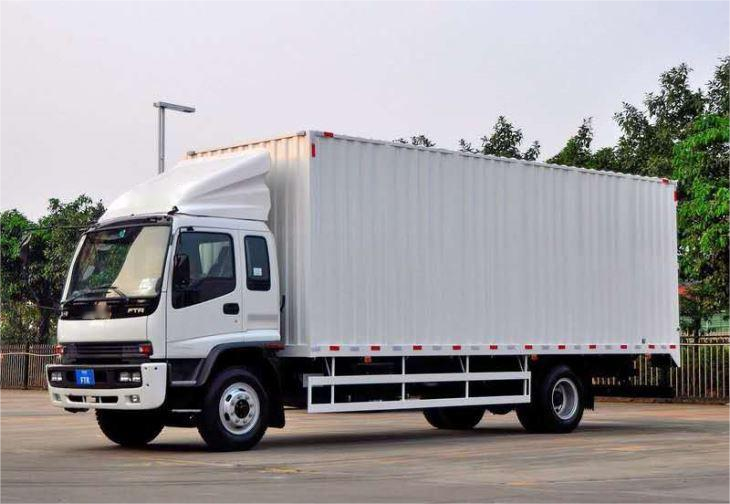

QingLing ISUZU FTR Van Truck:
The FTR is powered by the world's leading Isuzu 4H engine. The 4HK1-TC50 engine uses high-voltage common rail, precision electronic control, multi-stage injection, optimal combustion and exhaust gas recirculation, and dual-stage fuel filtration to achieve high power, high torque, low fuel consumption and low emissions, low noise. The perfect combination.
Adopt DPF after-treatment system: no need to add urea, reduce the user's use cost; no urea device, the modification adaptability is better.
The cab is made of high-strength galvanized steel and a closed structure to create an effective collision protection zone to protect the occupants in the driving area. The key corrosive parts are made of special materials such as engineering synthetic resin, and the earth improves the corrosion resistance of the cab. The air suspension seat can be adjusted automatically, even if it is driven long distance. The cab can be tilted forward 60 degrees for easy inspection and maintenance.
Quickly adapt the modified user to the local reinforcement of the frame;
The indoor heating and air conditioning, central control door lock, electric window, large sleeper, curtain, stool and other humanized design, all available, is the ideal mobile home.
The vehicle has light weight, strong carrying capacity and large cargo compartment volume.25ft,28ft,32ft length large cargo compartment can achieve stong carrying capacity.
ISUZU CHINA FTR Commercial Van Truck Specifications:
| Truck Brand | QingLing |
Driving Type | Left Hand Drive |
Overall Dimension(L*W*H) | 10000*2550*3900mm |
Box Dimension(L*W*H) | 7550*2450*2530mm |
GVW | 16000Kg |
Curb Weight | 7510Kg |
Axle loading: | |
Wheelbase | 5800mm |
F/R Track | 1960/1855 |
Approaching Angle/Departure Angle(o) | 15/13 |
Tire No. | 7(Including Spare Tire) |
Tire | 10.00R20 16PR |
Color: | Optional |
Max Speed(Km/h) | 105km/h |
Engine | |
Engine System | 4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
Emission Route | DPF |
Model | 4HK1-TC50 |
Fuel Type | Diesel Engine |
Max output | 150Kw |
Horsepower: | 205Hp |
Max Torque | 650N.m |
Emission Standard | Euro V |
Displacement: | 5193ml |
Transmission: | |
Model: | MLD-6Q |
Type | Manual |
Forward/Reverse | 6F/1R |
Brake System: | |
Service Brake | Dual Circuit Compressed Air Brake |
Parking Brake | Spring Energy, Compressed Air Operating on Rear Wheels |
Auxiliary System | Engine Exhaust Brake |
Electrical System | |
Battery | 2*12-70Ah |
Alternator | 28V-70Ah |
Starter | 24V/7.5Kw |
Cab | |
One Row and Half Cab with Air Conditioner | |
Other Equipment: | |
Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking,Data Recorder,Vehicle Speed Light | |
Notes:Above specs is for reference, any other specs needed or special requirements can be discussed accordingly.
