This fuel tanker truck is modified from Qingling Isuzu KV100 chassis applied with tanker body with a volume of 5m³, it’s powered by Isuzu engine model 4KH1CN5HS with 130 horsepower which is competent to achieve reliable durability and strength. The highest speed of the truck reaches 110 km per hour, and the equipped transmission has 6 forward gears and 1 reverse gear. The exhaust gas treatment technology applied in the truck makes it conform to the EuroⅤ emission standard. It has gained a good reputation from customers for its good quality and reasonable price. If you have any questions regarding this vehicle, please feel free to contact us.
Description of Vocational Quality:
The tanker body is made of carbon steel with a thickness of 5mm. It’s an ideal vehicle to transport liquid commodities that vary from crude oil to petroleum products such as diesel fuel, gasoline, and kerosene; as well as petrochemicals including ethanol and benzene.
The specifications and configurations of the vehicle can be customized in accordance with your special requirements.
ISUZU CHINA KV100 5m³4x2 Fuel Tanker Truck Specifications (Euro Ⅴ )
Chassis Model: | QL1049A5HAY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 6000x2070x2450mm |
Wheelbase: | 3360mm | |
Front/ Rear Wheel Distance: | 1685/1525mm | |
Front/Rear Suspension | 1120/1510 | |
Rear Axle Ratio: | 5.375 | |
Approach/Departure angle: | 20/21° | |
Leaf Spring: | 3/3+2 | |
Curb Weight: | 4000Kg | |
Payload | 3105Kg | |
GVW: | 7300Kg | |
Axle Loads: | 1750/2745kg | |
Engine | Engine Model: | 4KH1CN5HS |
Engine Power: | 96(kw) | |
Displacement: | 2999(ml) | |
Horsepower: | 130PS | |
Transmission | Transmission: | MSB-5SM |
Forward Gear: | 5 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Hydraulic Brake | |
Generator | 12V-60A | |
Cab | Number of Seats: | 3 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 7.00R16LT 8PR | |
Fuel Tank | Number: | 1 |
Capacity: | 100L | |
Top Parameters | Tank volume 5m³, carbon steel, 1 bin | |
The thickness of tank body is 5mm, the head is 5mm | ||
Include 1 set sea valves | ||
Include 1 Piece Aluminum alloy manhole cover | ||
Include 65YCB-30 Gear oil pump and | ||
Include 2 pieces 3 "3 m discharge hose (stainless steel tube box) | ||
Include 2 set 8 kg fire extinguisher | ||
Spray paint, wax spray, no sandblasting | ||
Vehicle Standard Configurations | Power Steering System | |
Air Conditioner | ||
Retro-reflective Marking | ||
ABS | ||
Free Maintenance Battery | ||
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

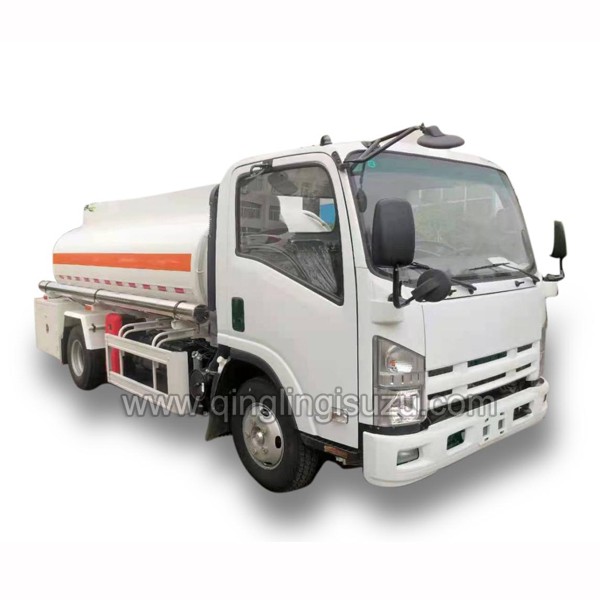

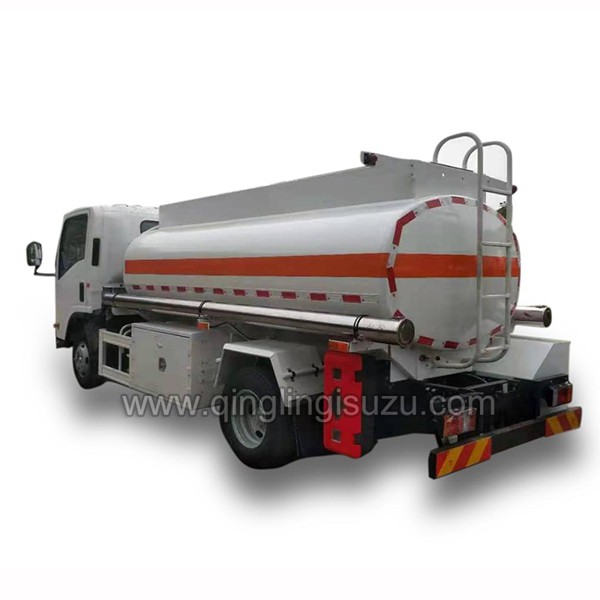

Photo for Reference:
