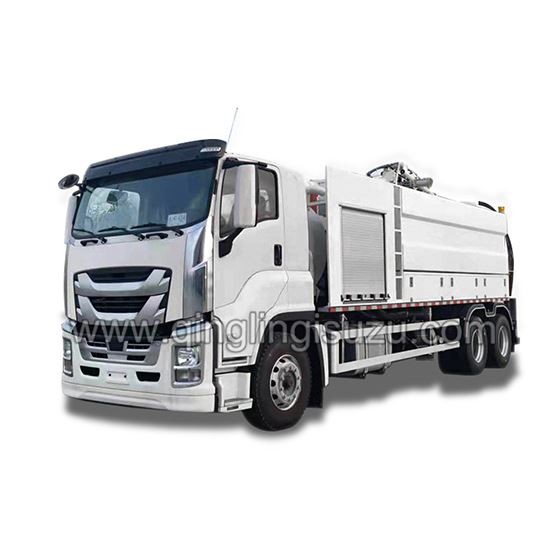

A vacuum truck is a new type of sanitation vehicle that collects, transfers, cleans sludge and sewage, and avoids secondary pollution. The vacuum truck is capable of both suction and discharging, with fast working speed, large capacity, and convenient transportation.
A vacuum truck is a new type of sanitation vehicle that collects, transfers, cleans sludge and sewage, and avoids secondary pollution. The vacuum truck is capable of both suction and discharging, with fast working speed, large capacity, and convenient transportation.
It is also suitable for collecting and transporting liquid substances, such as feces, mud, crude oil, and the like. The vacuum truck uses a vacuum pump, which has a strong suction force and a long suction distance range, and is extremely suitable for suction, shipment, and discharging of sludge in the sewer, especially for large objects such as sewer mud, silt, stones, and bricks.
The water tanks are installed on both sides of the sludge tank, designed to be round to bear positive or negative pressure. The top is a remote-controlled boom. The negative pressure is generated inside the sludge tank by operating the vacuum pump.
The sludge will be sucked into the tank via the pressure difference inside and outside.
Tank body plate tailor welding -- rolling -- tank body welding -- frame welding;
The first assembly with the chassis (determine the position of the vacuum pump and pipeline, spot welding, determine drive shaft length); Dismantling --entire welding pipeline --sandblasting --painting; Second assembly--test drive.
Vacuum Truck(9000L)
High Pressure Jetting Truck (3200L)
Combo Vacuum Truck(4600L)
Combo Vacuum Truck(9000L)
Combo Vacuum Truck(13000L)
Combo Vacuum Truck(14000L)
Sorted by application medium: wet substance, dry substance, dry & wet substance. The working fields include mining, petroleum, petrochemical, municipal, environmental protection, cement, steel plant, power plant, etc.
A jetting truck is to flush and clean the sewer pipelines using high pressure water; A vacuum truck sucks sludge material into the sludge tank using a vacuum pump; A combo vac truck combines both qualities. They all have the features of time-saving, cost savings, efficient operation, utilizing recycled water, etc.
There are cleaning reels on the vacuum truck for rinsing off tanks and workplaces. The liquid ring type vacuum truck is easy to maintain by regularly adding grease. The liquid level in the cooling water tank needs to be higher than 1/3.

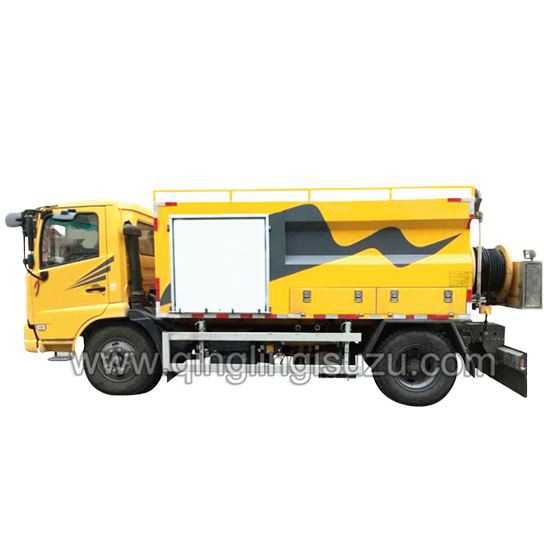

High Pressure Jetting Truck (3200L)
The 3200L light duty unit has been acclaimed as a highly convenient vehicle. The high pressure jetting system is designed to clean and unblock the drain. Besides the essential function, it can also effectively remove the grease, filth, and other substance attached to the pipe wall. Furthermore, by using high-quality Qingling Isuzu chassis, one can get a great deal of value out of this truck and meanwhile acquire a thorough after-sales service to optimize the vehicle perfromance.

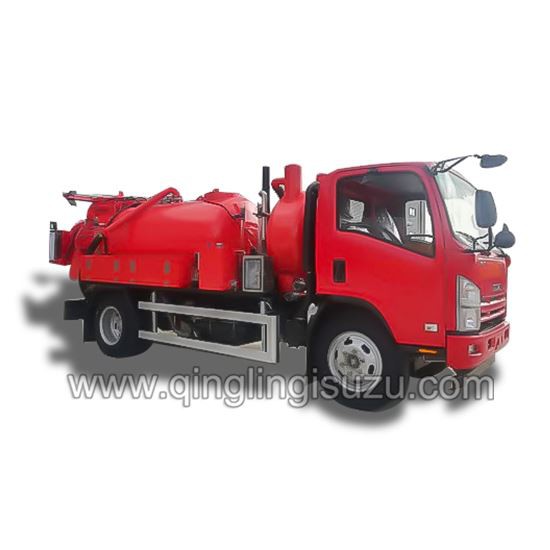

Combo Vacuum Truck(4600L)
The combo vacuum truck can unblock the underground pipes, suck the sludge, separate the waste liquid from the sewage and discharge it back to the underground. Dredging the river and emergency response to sudden environmental pollution accidents are some of the many activities it can pull off too. It also has optional sewage recycling and numerical control technology to improve the vehicle’s overall function and automation level.

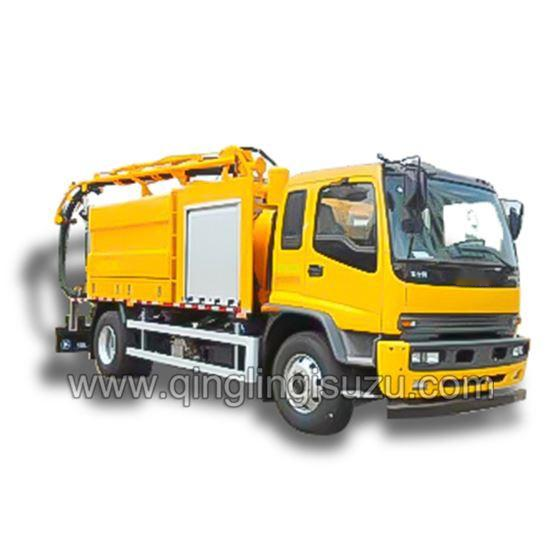

Combo vacuum truck (9000L)
The combo vacuum truck can unblock the underground pipes, suck the sludge, separate the waste liquid from the sewage and discharge it back to the underground. Dredging the river and emergency response to sudden environmental pollution accidents are some of the many activities it can pull off too. It also has optional sewage recycling and numerical control technology to improve the vehicle’s overall function and automation level.

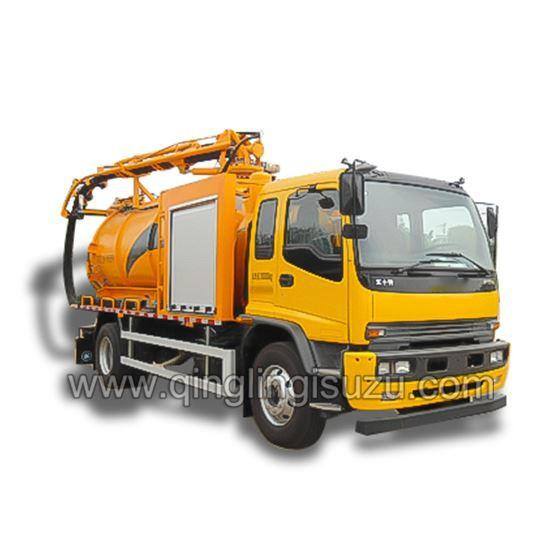

Vacuum Truck(9000L)
Our vacuum truck based on Qingling Isuzu chassis is a versatile vehicle that can suck, transport, and load/unload the sludge and sewage generated from assorted underground pipes, well manholes, pumping stations, mining industries, industrial waste material, oilfield drilling, etc. It can also dredge the river.

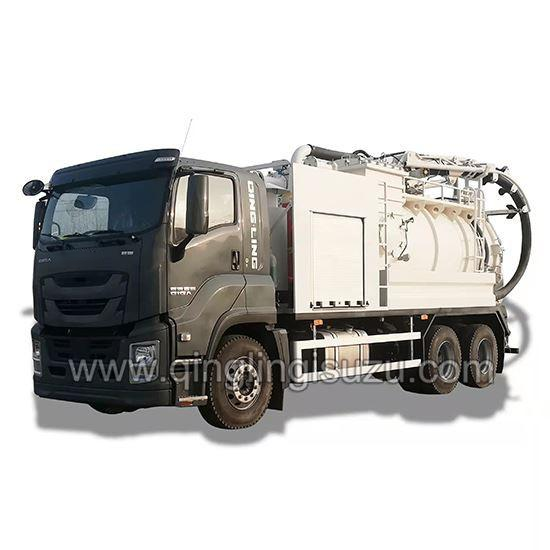

Combo Vacuum Truck(13000L)
The combo vacuum truck can unblock the underground pipes, suck the sludge, separate the waste liquid from the sewage and discharge it back to the underground. Dredging the river and emergency response to sudden environmental pollution accidents are some of the many activities it can pull off too. It also has optional sewage recycling and numerical control technology to improve the vehicle’s overall function and automation level.

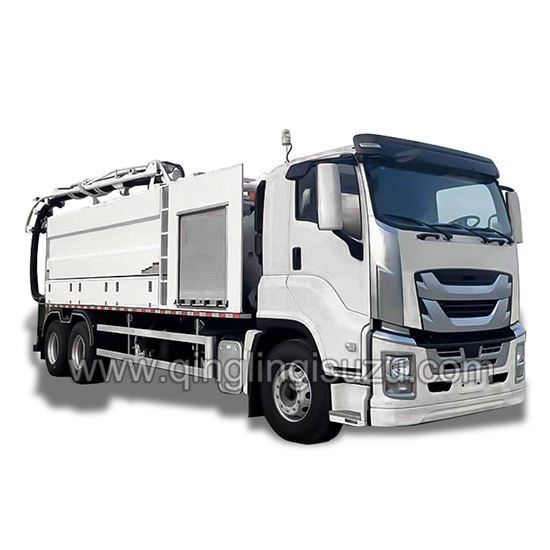

Combo Vacuum Truck(14000L)
The combo vacuum truck can unblock the underground pipes, suck the sludge, separate the waste liquid from the sewage and discharge it back to the underground. Dredging the river and emergency response to sudden environmental pollution accidents are some of the many activities it can pull off too. It also has optional sewage recycling and numerical control technology to improve the vehicle’s overall function and automation level.
The quality of Qingling Isuzu demonstrates the intrinsic value, which was infused through the world's advanced level of automobile manufacturer in China, with dedicated staff, pragmatic attitude, and rigorous production line. Reinforced axles, powerful transmissions, outstanding engines, loads of individual components are grouped to from a perfect balance.
Purchase of a commercial vehicle is only the start of an owner’s journey; using it to earn money is the goal; saving money by advanced engineering and technology is our commitment.
Qingling combines the features of Isuzu and the characteristics of Qingling. Both from last century, with a pile of remarkable merits, Qingling has concentrated on forging the giant-in-the-industry low cab commercial trucks to profit our customers by maximum productivity in the long run.
We apply tremendous resources to increasing uptime and reducing downtime. So once you choose Qingling Isuzu, you can be confident that it will be a decision that improves the profitability of your business and gives you an easy-going life!
Selecting a commercial truck doesn’t stop at the point where you know the needed loading capacity is. Too many factors affect the ultimate design of your workhorse. When attempting to enhance the durability of a truck, one cannot simply strengthen one section or the entire truck. Otherwise, it will result in defects beyond thought.
We have skilled personnel to design professional results specifically for your business. Qingling always provides you with comprehensive service. Even though there might be overlooked things, we are still there to offer optimal perfromance solutions by asking you the right questions that lead to making your business successful.
Qingling light duty truck has been highly praised in domestic and overseas public health, municipal sanitation, medicine, cold chain, high-end manufacturing, e-commerce, express, and other logistics markets for years. For the special-purpose truck market with complex specifications and the high value-added, Qingling has been one of the best choices. Based on Qingling Isuzu chassis, modified into sanitation trucks, postal trucks, refrigerated trucks, construction trucks, etc., they are everywhere for you to see.
Qingling commercial trucks use Isuzu chassis, which inherits the advantages of reliability, durability, maneuverability, fuel efficiency, and the Japanese spirit of conscientious attitude. Furthermore, Qingling has utilized sophisticated technologies, reinforced materials, and highly accurate procedures, repeated tests under different conditions such as high temperature, plateau, extreme cold, and polar regions, and in-the-field tests on various environmental roads. As a result, the feedback was given by our overseas customer saying Qingling had been a real moneymaker, also a money-saver at the same time.
Global logistics and transportation have changed with each passing day since entering a new era. Qingling has kept pace with the times and apprehended users’ needs. After nearly half a century of continuous cooperation between Qingling and Isuzu, we have proved our products through our innovation. The final intention is to tailor each customer’s requirement by integrating our superior chassis and excellent body applications to maximize the most of vocational trucks so that our professionals can design your specified trucks only for you.
We have numerous trucks to meet the needs of our customers. In addition to vacuum trucks, there are garbage trucks, mixer trucks, dump Trucks, aerial platfrom trucks, refrigerated trucks, wing van trucks, fire trucks, tanker trucks, tow trucks, and others. Moreover, we’ve added a new line of electric trucks to meet your needs in complying with worldwide green environmental policies.
Qingling Isuzu has introduced advanced manufacturing equipment from Europe, America, and Japan, froming a complete process chain from the basic to the whole vehicle assembly, laying a solid foundation for producing high-quality products. After products are offline, the assigned auditor will do strict inspections to complete the evaluation. The top-notch system is the core that our products have consistently ranked among the top levels in the commercial vehicle industry and become the industry quality benchmark.
We do not have a minimum order requirement. Each order is handled separately, and our mission is to treat every client with equal and professional courtesy. Whether an order is for one truck or 100 trucks, you will always receive our utmost professionalism.
Different vehicles have different warranties. Besides the general ones, each vehicle part also has an individual warranty. After purchasing a truck, the upcoming maintenance or repairment cost is the real deal considering that the fixing will not be cheap, and the owner will suffer from downtime. With our professional after-sales personnel, we will be there to assist with any problem you might have and help you get your truck back on the game.
The vacuum truck is a multifunctional truck with a complex operating process. Proper manipulation of the vehicle will reduce damage and prolong the vehicle’s life. All of our vehicles are equipped with essential instructional documentation, and we can also provide instructional videos or necessarily remote online instructions on how to operate the vehicle appropriately.
Our trucks have been pursuing European and American standards of quality. Compliance with a series of national standards and acquired many certifications set by the GB, the ISO, etc. We had sold to the Philippines, Chile, Dubai, South Korea, Peru, Costa Rica, and others.
■ What are the benefits of vacuum trucks? Are there any restrictions on vacuum trucks?
■ What are the general parts of a vacuum truck?
■ How many types of vacuum trucks are there?
■ What is the shape and structure of the combo vac truck?
■ What is the main difference between a jetting truck, a vacuum truck, and a combo vac truck?
■ What is the difference between a vacuum truck and a jetting & vacuum truck?
■ What brands are there for vacuum trucks?
■ What are maintenance matters and cleaning methods for a vacuum truck?
■ What horsepower is proper for vacuum trucks used in farms?
■ Why does the vacuum truck have an auxiliary engine?
■ Can the vacuum truck be customized? What parts can be customized?
■ How to choose a suitable vacuum truck?
■ What kind of vacuum pump does a vacuum truck use?
■ How long is the delivery time for a vacuum truck?
■ What is the reason for a vacuum truck lacking suction power?
■ What projects require a vacuum truck?
■ How does a vacuum truck prevent overflow?
■ Do you have any certification for the vacuum truck?
■ What are the common breakdown causes and solutions for the high pressure pump of the vacuum truck?
■ Is a vacuum truck the same as a septic pumping truck?
■ Why is there pressure but no flow for the jetting & vacuum truck?
■ What are the operation notes for a vacuum truck?
■ What technical requirements should a vacuum truck fit for?
■ How to troubleshoot a vacuum truck?
■ What are the factors that affect the service life of a vacuum truck?
■ How to choose suitable specifications for a vacuum truck?
■ What factors determine the quality of a vacuum truck?
■ How to order a vacuum truck?
■ What are the payment terms for a vacuum truck?
■ Can you ship the vacuum truck to my country or my appointed address?
■ Can I have a test drive of the vacuum truck before buying it? How do I do it?
■ What is your warranty? What if the vacuum truck breaks down?
Time-saving, cost savings, efficient operation, utilizing recycled water, etc.
There are restrictions such as vacuum pumps must be anti-explosion in the chemical industry in developed countries. Liquid ring vacuum pumps can meet certain industry requirements and are especially suitable for working in the hazardous chemical industry.
Sludge tank, cooling water tank, vacuum pump, pipeline, four-way valve, filter, safety valve, supersonic liquid lever control part, suction hose, tubes, etc.
Sorted by application medium: wet substance, dry substance, dry & wet substance.
The water tanks are installed on both sides of the sludge tank which is designed to be round to bear positive or negative pressure. The top is a remote-controlled boom.
A jetting truck is to flush and clean the sewer pipelines using high pressure water; A vacuum truck sucks sludge kind material into the sludge tank using a vacuum pump; A combo vac truck combines the features of them both.
A jetting & vacuum truck has more features and more control buttons than a vacuum truck.
United States: VECTOR, VECON, etc.
Europe: KAISER, KOKS, etc.
The liquid ring type vacuum truck is easy to maintain by regularly adding grease. The liquid level in the cooling water tank needs to be higher than 1/3.
There are cleaning reels on the vacuum truck for rinsing off tanks and workplaces.
4x2 130-240Ps.
Only the installed auxiliary engine can power the body when the chassis engine is shut down.
Yes. Tank volume, flow, suction pipe diameter, etc.
According to the specific needs of users. More using details, more likely to choose a proper one...Read More
It is up to the workplace. The liquid ring vacuum pump should be used for perennially high ambient temperature; the Roots blower is the one for perennially low ambient temperature.
Usually, it takes 90 to 120 days to produce after receiving the advance payment. The specific time depends on the project and the quantity of the order.
Vacuum level and airflow.
Metallurgy, Petroleum, Mining, Cement, Power Plant, Steel Plant, Coal, etc.
Our vacuum truck is equipped with a tuning fork and floating ball, double supersonic liquid lever controls against overflow.
Previously gained European ADR, American ASME.
1. Check the water filter and the high pressure water pump.
2. Check if the strainer of the water filter is filthy and needs to be cleaned.
3. Check if the antifreeze drain switch is on.
4. Open the cover of the high pressure water pump (Pratissoli pump), take out and see if the plunger is filled with debris and any damage at any other parts(high incidence of parts damaged in winter).
5. Replace parts, assemble, and adjust.
6. The status of the high pressure jet pump needs to be monitored closely such as running sound, flow force, pressure meter, etc.
7. Check the lubricating condition of the high pressure pump, and if bolts are fastened, any junction or seal is airtight.
No, a vacuum truck can suck many materials including ordure; a septic pumping truck can only suck septic material.
First, check if the strainer of the water filter is filthy and needs to be cleaned. Next check, open the cover of the high pressure water pump (Pratissoli pump), take out and see if the plunger is filled with debris, and any damage at any other parts(high incidence of parts damaged in winter); the last, replace parts, assemble, and adjust.
Working environment temperature (it is forbidden to operate a vacuum truck when the ambient temperature is below 0℃, otherwise it is very likely to damage the pump). Add water, oil, grease, etc. to the vacuum truck in time by the instruction manual; 2/3 water level for the cooling water tank (vacuum pump). Gear oil for the transfer case. Enough water for the water tank (high pressure water pump).
Different countries have different requirements. Choosing a high quality chassis with a proper wheelbase is crucial.
According to the "After-sales Problem Operation Guide"
A proficient operator is the key. If the vacuum truck needs to work at a special site with possible corrosion, special material accessories are required.
The upper body specifications are based on the chassis specifications and the specific needs of users.
Spare parts, accessories, machining technology.
Please feel free to contact us:
Tel: +86-21-50876988
Mob: +8616602107779/+8616601830077
E-mail: qinglingisuzu@qinglingisuzu.com
The wire transfer payment can be divided into three parts. 30% as the deposit, 50% of the interim as the chassis payment, and 20% to be paid before delivery. We will provide you with photos of your product before you pay the final payment.
With the pandemic going on, we can send the goods to the port of your designated country except in special circumstances.
Contact us and make an appointment with us in advance. We can even send product operation videos to you.
All our models come with a warranty. Different parts have different warranties.
If you have any questions, you can contact us at any time, and we will provide you with solutions as soon as possible.
1. Warranty
We offer you 24 months or 50,000 km warranty.
Please use genuine Qingling Isuzu parts during vehicle maintenance and repair. Qingling Isuzu Motors is not responsible for any direct or indirect loss caused by the use of non-genuine parts.
2. Technical support
We offer global technical support and our expert technicians will provide you with the appropriate response in record time when you need it.
Different configuration comes with different price. Provide us with your specific requirements, and we will quote you in time.
