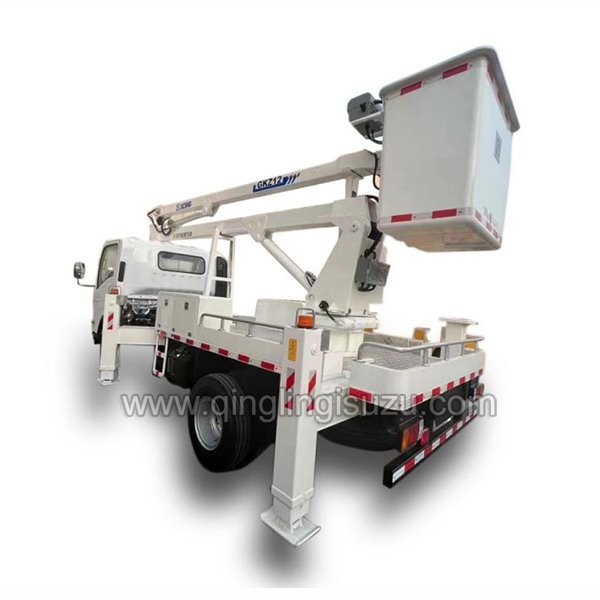

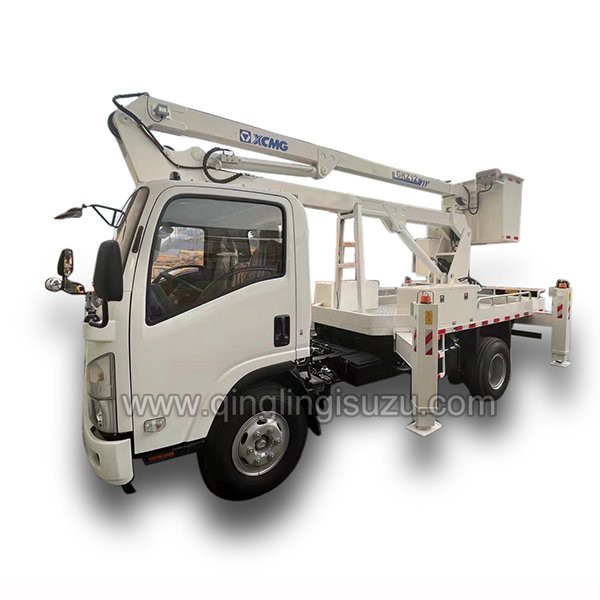

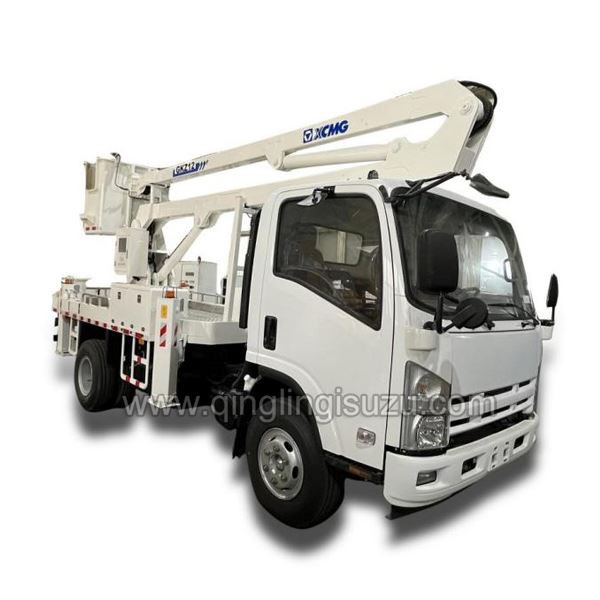

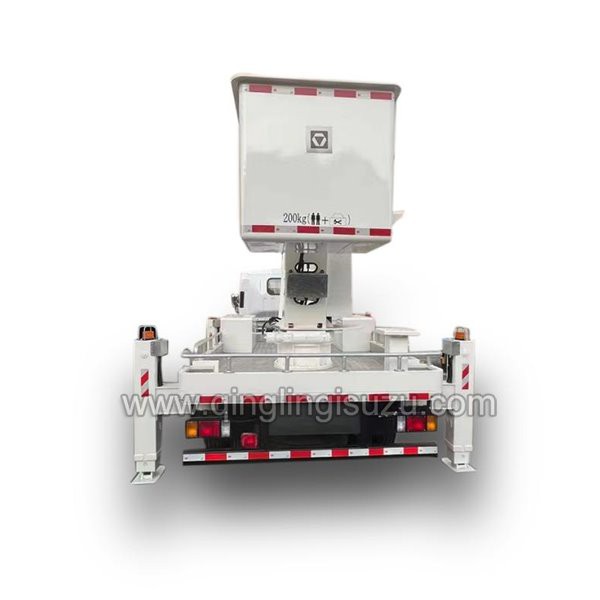

QINGLING 700P/NPR 4x2 Manlift Truck 21.6 m

Chassis Dimensions and Parameters

Overall Dimension(L x W x H)

7600×2220x3300mm

Wheelbase:

3815mm

Front/ Rear Wheel Distance:

1680/1650mm

Front/Rear Suspension

1110/2055mm

Rear Axle Ratio:

4.1

Approach/Departure angle:

17/14°

Leaf Spring:

8/10+6

Weights and Capacities

Curb Weight:

7780kg

Payload:

2025kg

GVW:

10000kg

Axle Loads:

3350/6650kg

Engine

Engine Model:

4HK1-TC51

Max output:

140Kw

Displacement:

5193ml

Horsepower:

190Ps

Exhaust Gas Treatment Technology：

DPF

Transmission

Transmission:

MLD-6Q

Forward Gear:

6 Speed Gear

Backward Gear:

1 Speed Gear

Brake

Air Brake

Generator

24V-80A

Cab

Number of Seats:

3

Chassis

Drive Type:

4x2

Tires:

 7(Including Spare Tire)

Tire Model:

235/75R17.5

Fuel Tank

Number:

1

Capacity:

100L

Configurations:

1

Power Steering System

2

Air Conditioning

3

Retro-reflective Marking

4

ABS

5

Free Maintenance Battery

Manlift Body Parameter

Brand

XCMG

Model

GKS21

Max. working height

21.6 m

Max. bucket bottom height

19.9 m

Max. outreach
(From the center of turntable)

15.1 m

Max. loading capacity

260 kg

Rotation of turntable

360° continuous

Rotation of turntable

±90°

Bucket dimension

1400mm×735mm×1100mm

Bucket material

Aluminum

Boom type

3 sections telescoping boom

Outrigger span

Front & Rear: 4200 mm
Left side: 4800, Right side: 5000 mm
(Front: V type, Rear: H type)

Operation

Turntable seat and wireless remote control in the bucket

Suitable trucks

Light duty, 6 wheels, GVW: 8 ton
Wheelbase: 3815 mm

*Overall dimensions

7600mm×2220mm×3300mm

Other Configurations

Hydraulic system:

Electro-hydraulic proportional control, step-less speed regulation

Electrical system

CAN bus protocol

Turntable seat and wireless remote control

in the bucket, all can control the engine start & stop;

Boom and outriggers

Interlocked, outriggers can be operated separately with safety inspection;

Automatic hydraulic leveling system

to make sure bucket stable

emergency pump

Equipped
