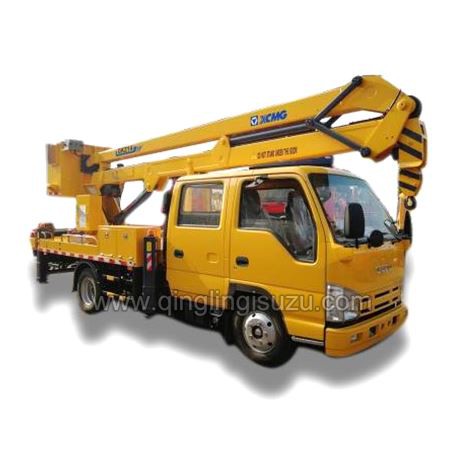

![[[smallImgAlt]]](jpg/isuzu-china-nkr-double-row-platform-manlift54053137309-2.jpg)
This manlift truck is modified from Qingling Isuzu 100P chassis which conforms to the Euro 5 emission standard. It is powered by Isuzu engine model 4KH1CN5HD with 130 horsepower. The equipped transmission has 5 forward gears and 1 back gear.
Description of Vocational Features:
The maximum working height of this vehicle is 14.7 meters. The bucket is made up of fiberglass, and its bottom height reaches 13meters. This vehicle is typically used for residential and commercial electrical jobs that include repairing electrical lines and building high voltage transmission lines that stretch for miles. However, its function is not limited to this field only, the versatile vehicle can also be used safely and efficiently for various other tasks, including tree care, light installation, building work, etc. If you are interested in this vehicle, please feel free to contact us. Any special requirements regarding the specifications and configurations can be discussed and met accordingly.
ISUZU CHINA 100P 4x2 Manlift Truck Specifications (Euro V)
Vehicle Model: | QL1070A6HWY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 5900×1880x2200mm |
Wheelbase: | 3360mm | |
Front/ Rear Wheel Distance: | 1504/1425mm | |
Front/Rear Suspension | 1015/1525mm | |
Rear Axle Ratio: | 5.375 | |
Approach/Departure angle: | 24/16° | |
Leaf Spring: | 8/6+5 | |
Weights and Capacities | Curb Weight: | 2250kg |
Payload: | 3425kg | |
GVW: | 6750kg | |
Axle Loads: | 2200/4550kg | |
Engine | Engine Model: | 4KH1CN5HD |
Max output: | 95Kw | |
Displacement: | 2999ml | |
Horsepower: | 130Ps | |
Exhaust Gas Treatment Technology： | DPF | |
Transmission | Transmission: | MSB-5SM |
Forward Gear: | 5 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Hydraulic Brake | |
Generator | 12V-60A | |
Cab | Number of Seats: | 2+3 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 7.00R16 14PR | |
Fuel Tank | Number: | 1 |
Capacity: | 100L | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Retro-reflective Marking | |
4 | ABS | |
5 | Free Maintenance Battery | |
6 | Radial Tire | |
Manlift Body Parameter | Brand | XCMG |
Model | GKZ14 | |
Max. working height | 14.7 m | |
Max. bucket bottom height | 13 m | |
Max. outreach | 6.7 m | |
Max. loading capacity | 200 kg | |
Rotation of turntable | 360° continuous | |
Bucket dimension | 1150×650×1150 mm | |
Bucket material | Fiberglass | |
Lifting capacity of crane | 2000 kg | |
Lifting height of crane | 9.1 | |
Outrigger span | Front: 2625 mm, Rear: 3350 mm, Left side: 3530 mm, Right side:3705 mm | |
Operation | Both turntable and bucket | |
Suitable trucks | Light duty, 6 wheels, GVW: 6ton | |
Other Configurations | Hydraulic system: Electronic proportional control, step-less speed regulation; | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

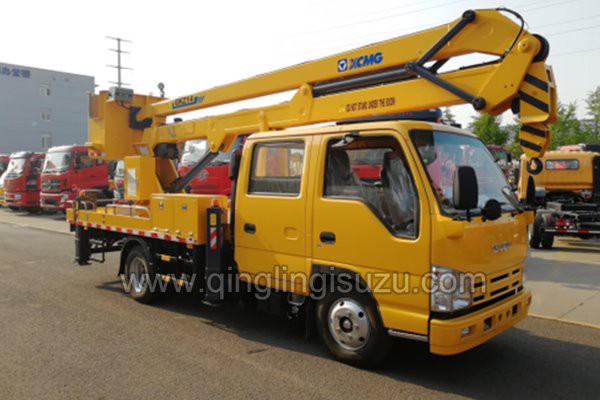

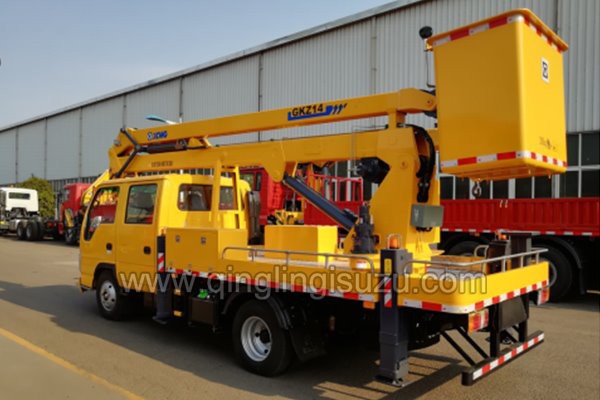

Photo for Reference:
