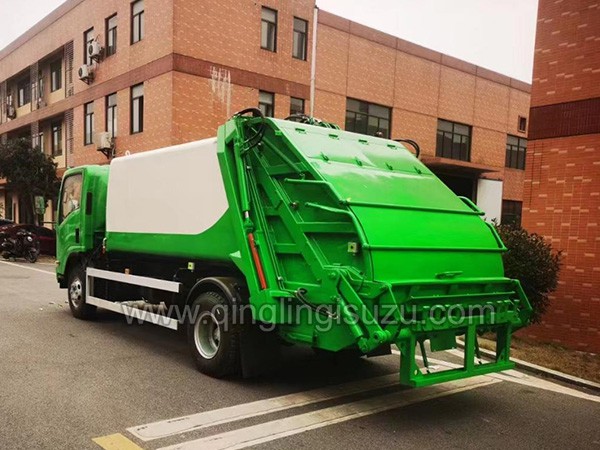

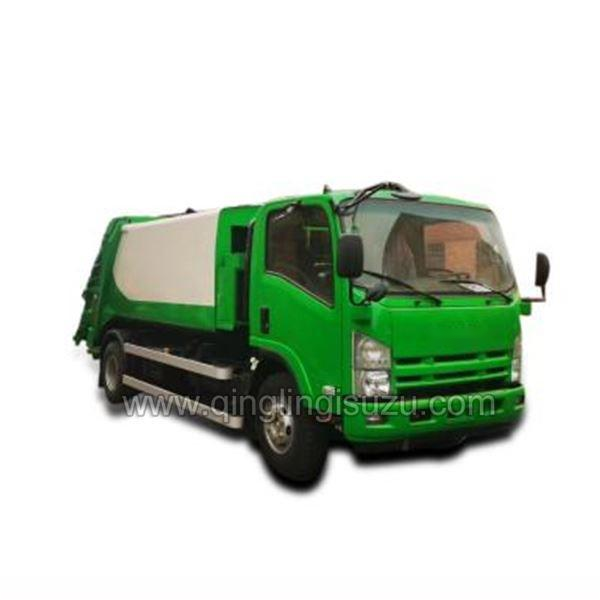

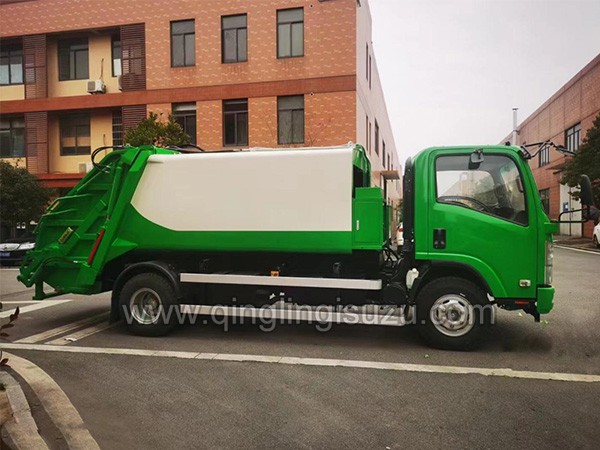

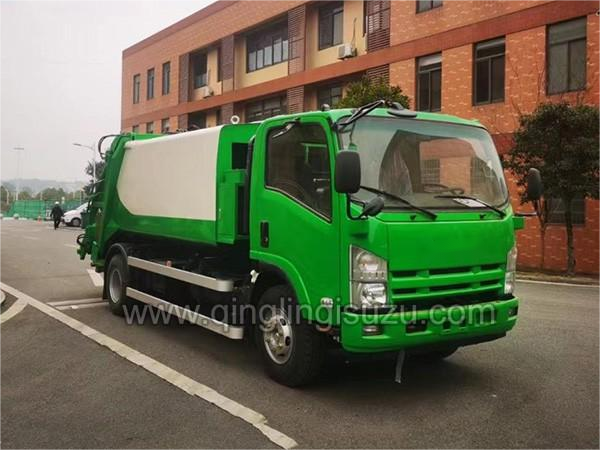

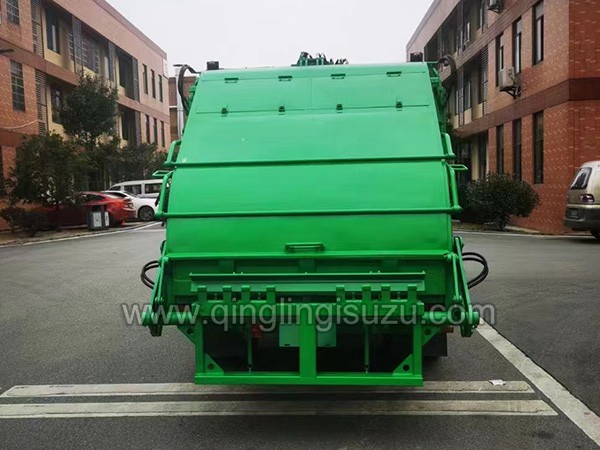

8m³ Garbage Compactor-700P-QL10909KARY

Chassis Dimensions and Parameters

Overall Dimension(L x W x H)

7167x2654x2170mm

Wheelbase:

3815mm

Front/ Rear Wheel Distance:

1680/1650mm

Front/Rear Suspension

1110/2055mm

Rear Axle Ratio:

4.1

Approach/Departure angle:

21/13°

Leaf Spring:

8/10+6

Weights and Capacities

Curb Weight:

2970Kg

Payload:

6290Kg

GVW:

9390Kg

Axle Loads:

                    3150/6240kg

Engine

Engine Model:

4HK1-TCG40

Max output:

139Kw

Displacement:

5193ml

Horsepower:

189Ps

Exhaust Gas Treatment Technology：

EGR

Transmission

Transmission:

MLD-6Q

Forward Gear:

6 Speed Gear

Backward Gear:

1 Speed Gear

Brake

Hydraulic Brake

Front Drum Back Drum

With Exhaust Brake

Generator

24V-80A

Cab

Number of Seats:

3

Chassis

Drive Type:

4x2

Tires:

 7(Including Spare Tire)

Tire Model:

235/75R17.5 14PR

Fuel Tank

Number:

1

Capacity:

100L

Top Parameters

Garbage Container Capacity

8m3

Filler Volume

1.5m3

Cycling time of Filling

≤25S

Lifting time of Filler

8-10S

 Time of Discharging

≤45S

Hydraulic System Pressure

20Mpa

Hydraulic system control mode

Manual/electric integrated control

Oil cylinder type

Double-acting piston type

Oil pump

Dual gear pump

Directional control valve

Multiple way reversing valve

Manipulator configuration

Standard double barrel manipulator

Configurations:

1

Power Steering System

2

Air Conditioning

3

Retro-Reflective Marking

4

ABS

5

Tubeless Tire

6

Free Maintenance Battery
