Qingling Isuzu's VC61 truck has simple design, lightweight, and fuel-efficient as quality. The streamlined shape of the front of the tractor head effectively reduces the wind resistance and reduces fuel consumption. The VC61 tractor head uses a 6W engine model with maximum 460 horsepower. 8x4 drive type and 12 wheels.The interior of the cabin is spacious and comfortable, we focus on reducing fatigue driving.
VC61 tractor head has simple design, lightweight and fuel-efficient as quality. Control the width of the front of the cabin, optimize the wind resistance flow direction of the front corners of the vehicle, and adopt a streamlined shape to reduce the wind resistance to the side of the rear body, obtain the best aerodynamic perfromance, and help improve fuel consumption.
The VC61 tractor head uses a 6W engine model with maximum 460 horsepower. 8x4 drive type and 12 wheels. The use of a high-quality ZF gearbox, a high-torque engine with a 16-speed transmission and a small-speed ratio rear axle make the engine always in the most economical speed range. That reduces vehicle fuel consumption.
Pursue the fuel consumption perfromance of the practical speed with high frequency of use, from supercharging to cooling, fuel injection, and the pursuit of maximizing the reduction of fuel costs. In order to adapt to different regions and different loads, a variety of speed ratios are provided for customers to choose.
Suitable cab, excellent aerodynamic perfromance, the width of the front of the cab, optimize the wind resistance flow direction at the front corners of the vehicle, adopt a streamlined shape to reduce the wind resistance to the rear body side, obtain the best aerodynamic perfromance, and help improve fuel consumption .
The interior of the cab is spacious, so the drivers and passengers can easily stand upright in the sleeper, and the lounge can sit without meeting their heads.
A high degree of integration of comfort and efficiency, focusing on reducing fatigue driving.
| Vehicle Model | QL1310W2VDHY | |
| Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 11800×2540×3720mm |
| Wheelbase: | 1850+4575+1370mm | |
| FrontWheel Distance: | 2065/2065mm | |
| Rear Wheel Distance: | 1855/1855mm | |
| Front/Rear Suspension | 1370/2635mm | |
| Weights and Capacities | Curb Weight: | 10650kg |
| GVW: | 31000kg | |
| Axle Loads: | 6500/6500/18000kg(Two-Axis Group) | |
| Engine | Engine Model: | 6WG1-TCG51 |
| Max output: | 338Kw | |
| Displacement: | 15681ml | |
| Horsepower: | 460Ps | |
| Exhaust Gas Treatment Technology： | SCR | |
| Cabin | Number of Seats: | 2 |
| Cabin type | High Roof Two Beds | |
| Chassis | Drive Type: | 8x4 |
| Tires: | 13(Including Spare Tire） | |
| Fuel tank | Capacity | 400L |
| Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS | |
| 4 | Tubeless Tire | |
| 5 | Retro-Reflective Marking | |
| 6 | Free Maintenance Battery | |
| 7 | Central Lock | |
| 8 | Power Window | |
| 9 | Driving Data Recorder | |
| 10 | Widened Bumper | |

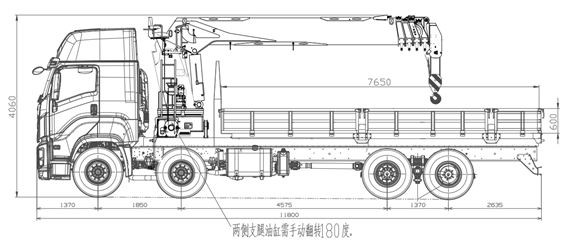

| Crane Top Parameters: | Max.lifting capacity | 16000 kg |
| Max.pressure of hydraulic system | 28MPa | |
| Oil tank capacity | 260L | |
| Installation space | 1400mm | |
| Rotation angle | 360 Continuous | |
