This tractor head has a maximum loading capacity of 40000 kg. It fully complies with Euro 5 emission standard. The equipped Isuzu engine 6WG1-TCG52 with 420 horsepower is well known for its strength and durability. The transmission has 16 forward gears and 2 backward gears.
![[[smallImgAlt]]](png/isuzu-china-6x4-dangerous-goods-trailer-trucke881219b-a950-4ad2-a02e-d3f5e3327099-2.png)
Description of Vocational Features:
This tractor head is specially designed to tow a trailer loading various dangerous goods including substances that have explosive, flammable, toxic, infectious, corrosive, or environmentally hazardous properties, and containers that have held dangerous goods, such as ammunition and fireworks. Any special requirement regarding the specifications and configurations can be discussed and met accordingly.
ISUZU CHINA VC61 6x4 Tractor Head Specifications (Euro V)
Vehicle Model: | QL4251W1NDZ | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 6895×2540x3950mm |
Wheelbase: | 3385+1370mm | |
Front Wheel Distance: | 2065mm | |
Rear Wheel Distance: | 1875 mm | |
Front/Rear Suspension | 1370/770mm | |
Rear Axle Ratio: | 3.909 | |
Approach/Departure angle: | 17/42° | |
Leaf Spring: | 4/- | |
Weights and Capacities | Curb Weight: | 9060kg |
Payload: | 15710kg | |
GVW: | 24900kg | |
Axle Loads: | 6900/18000kg | |
Engine | Engine Model: | 6WG1-TCG52 |
Max output: | 309Kw | |
Displacement: | 15681ml | |
Horsepower: | 420HP | |
Exhaust Gas Treatment Technology: | SCR | |
Transmission | Transmission: | ZF16S2230T0 |
Forward Gear: | 16 Speed Gear | |
Backward Gear: | 2 Speed Gear | |
Brake | Air Brake | |
Generator | 24V-60A | |
Cab | Cabin Type: | High Roof with Two Beds |
Number of Seats: | 2 | |
Chassis | Drive Type: | 6x4 |
Tires: | 11(Including Spare Tire) | |
Tire Model: | 315/80R22.5 16PR | |
Fuel Tank | Number: | 1 |
Capacity: | 600L | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Central Lock | |
4 | Power Window | |
5 | Retro-reflective Marking | |
6 | ABS | |
7 | Driving Recorder | |
8 | Free Maintenance Battery | |
9 | Widened Bumper | |
10 | Front Axle Disc Brake | |
11 | Main Power Switch | |
12 | Exhaust Tailpipe Front | |
13 | Dangerous Goods Sign Light | |
14 | Spark Extinguisher | |
15 | Speed Limiter | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

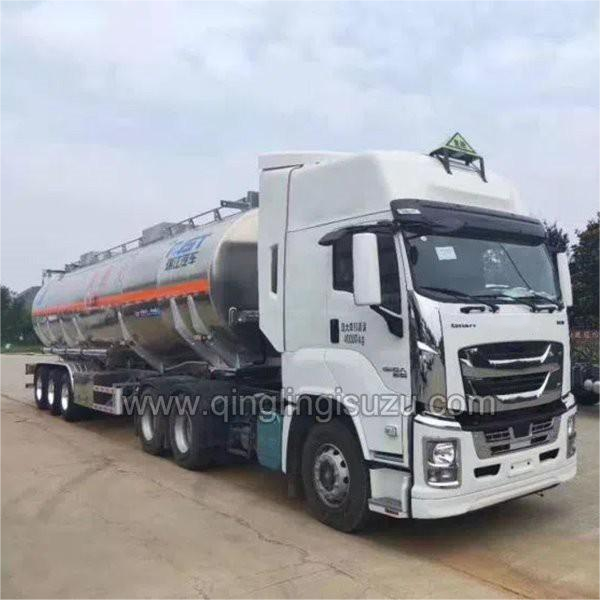

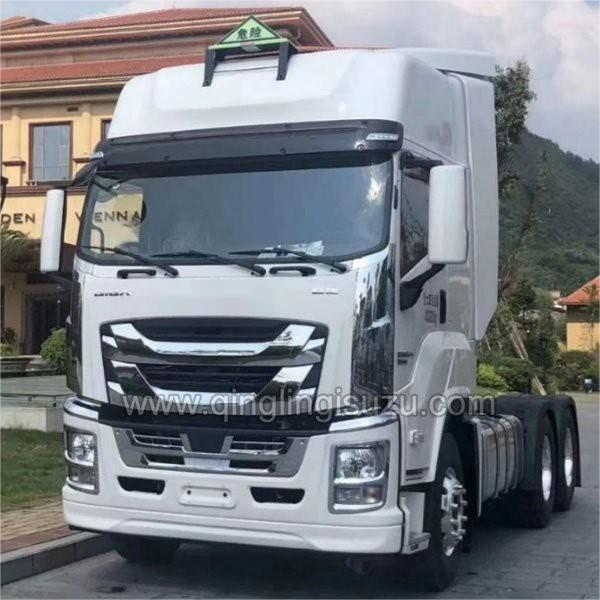

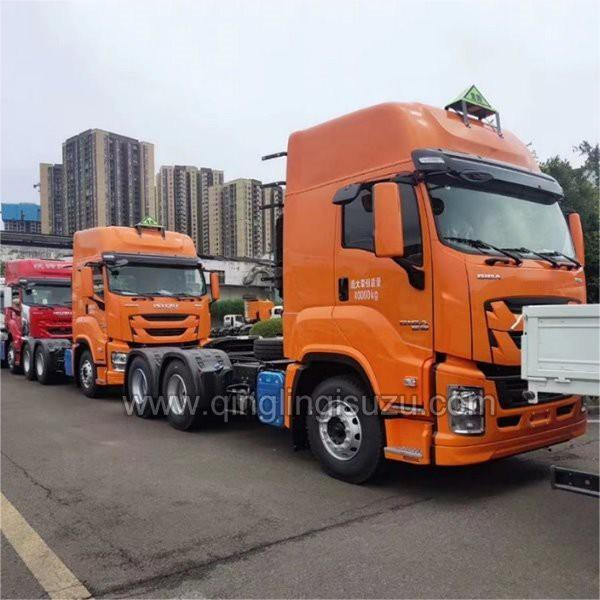

Photo for Reference:
