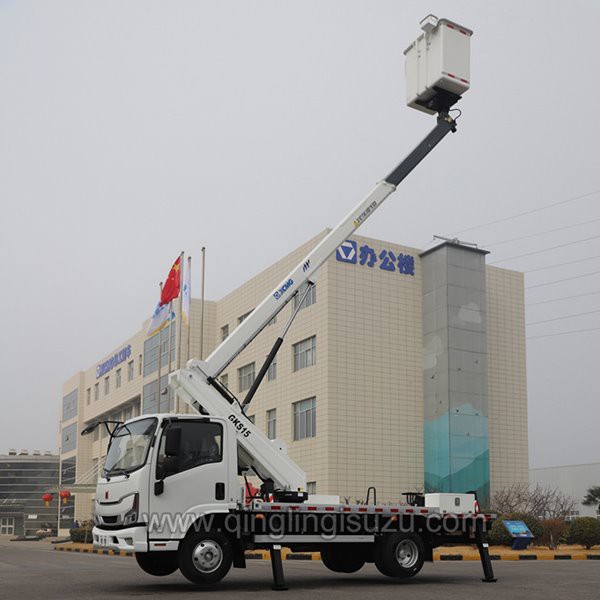

![[[smallImgAlt]]](jpg/qingling-m100-15-meters-manlift-truck-lhdfda9a-2.jpg)

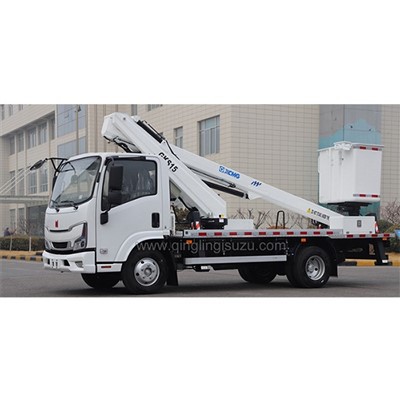

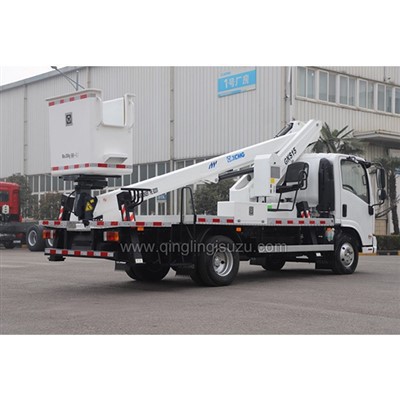

This Manlift truck is composed of Qingling Isuzu M100 chassis and XCMG hopper. The chassis has been completely upgraded with a new front face and a 3-seater cab; The engine is 4KH1CN5HD 130ps; the Wheelbase is 3360mm; GVW7300kg; Hydraulic or air brakes are optional, multifunctional steering...
This Manlift truck is composed of Qingling Isuzu M100 chassis and XCMG hopper. The chassis has been completely upgraded with a new front face and a 3-seater cab; The engine is 4KH1CN5HD 130ps; the Wheelbase is 3360mm; GVW7300kg; Hydraulic or air brakes are optional, multifunctional steering wheel, modern body design, low fuel consumption, low maintenance costs, and strong maneuverability. This truck can lift 200 kg of manpower and materials to a height of 15 meters. The maximum height of the bucket bottom is 13.1 meters. This car is an ideal choice for construction work, painting, maintenance and repair tasks, as well as other industrial tasks such as tree pruning, installation of large signs, lighting for movies or theaters, etc. If you are interested in this car, please feel free to contact us at any time. Any special requirements for specifications and configurations can be discussed and met accordingly.
A-type outriggers without horizontal extension. Extremely compact footprint when stabilized.Wireless remote control as standard. By operating the unit from a distance, where the view is better. 360° continuous rotation on both turret and basket as standard for greater agility, more flexible when meeting complex working conditions.XCMG's unique speed control system is smooth and efficient. Built-in telescopic cylinder and pipelines for safety. Streamlined exterior.Fiberglass basket, with 1000V basket insulation.
● Hydraulic system: Electro-hydraulic proportional control
● Electrical system: CAN bus protocol

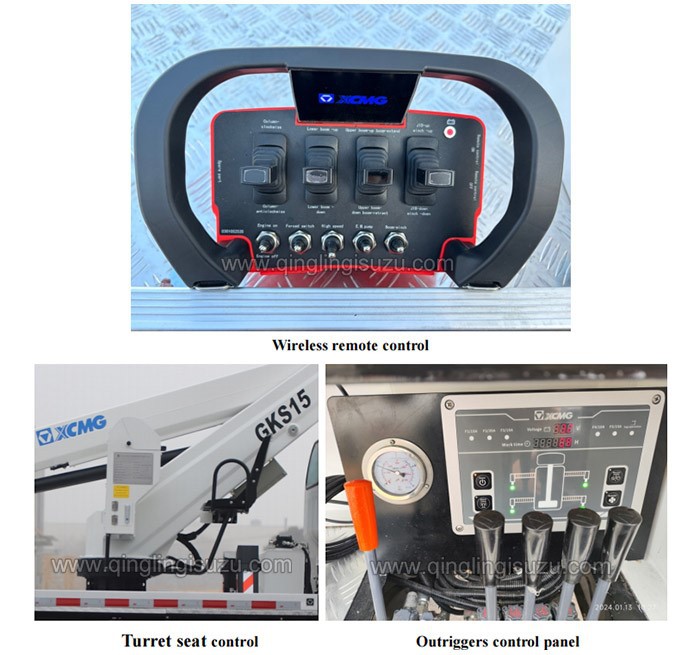

● Turntable seat and wireless remote control
● Boom and outriggers interlocked, outriggers can be operated separately with safety
inspection.
● Automatic hydraulic leveling system to make sure bucket stable
● Equipped emergency pump
M100 15 meters Manlift Truck Specifications LHD (Euro V)
|
Vehicle Model |
QL1049A5HAY(M55EA-C) |
|
|
Chassis Parameters |
Vehicle Dimension(L x W x H) |
6600×2070×2960mm |
|
Wheelbase |
3360mm |
|
|
Front/ Rear Wheel Distance |
1640/1525mm |
|
|
Front/Rear Suspension |
1120/1510mm |
|
|
Approach/Departure angle |
20/21° |
|
|
Leaf Spring |
3/3+2 |
|
|
Weights and Capacities |
Curb Weight |
4110kg |
|
Payload |
190kg |
|
|
GVW |
4495kg |
|
|
Axle Loads |
1750/2745kg |
|
|
Engine |
Engine Model |
4KH1CN5HD |
|
Cylinder |
4 Cylinders in line |
|
|
Engine Features |
Turbocharging, inter cooling. |
|
|
Torque(N.m/rpm) |
290/1500 |
|
|
Max output |
96Kw |
|
|
Displacement |
2999ml |
|
|
Horsepower |
130Ps |
|
|
Exhaust Gas Treatment Technology |
Remove DPF |
|
|
Transmission |
Transmission |
MSB-5 |
|
Forward Gear |
5 Speed Gear |
|
|
Backward Gear |
1 Speed Gear |
|
|
Brake |
Air Brake |
|
|
Front Drum Back Drum |
||
|
Generator |
12V |
|
|
Cab |
Number of Seats |
3 |
|
Chassis |
Drive Type |
4x2 |
|
Tires |
7(Including Spare Tire) |
|
|
Tire Model |
7.00R16 |
|
|
Fuel Tank |
Number |
1 |
|
Capacity |
100L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
Chrome plated Corner plate grille |
|
|
4 |
Retro-Reflective Marking |
|
|
5 |
Free Maintenance Battery |
|
|
6 |
Power window and Central lock |
|
|
7 |
New style steering wheel with multi-function and clock spring |
|
|
8 |
reversing radar |
|
|
9 |
Central lock/ Power window |
|
|
10 |
Remote key |
|
|
Hopper |
Brand |
XCMG |
|
Model |
GKS15 |
|
|
Max. working height |
15.1 m |
|
|
Max. bucket bottom height |
13.1 m |
|
|
Max. outreach (From the center of turntable) |
9.3 m |
|
|
Max. loading capacity |
200 kg |
|
|
Bucket dimension |
1100 × 700 × 1100 mm |
|
|
Bucket material |
Fiberglass, 1000V insulation |
|
|
Rotation of turntable |
360° continuous |
|
|
Rotation of bucket |
360° continuous |
|
|
Boom type |
2 sections telescoping boom |
|
|
Outrigger span |
2150 mm, A type |
|
|
Operation |
Wireless remote control and turret seat |
|

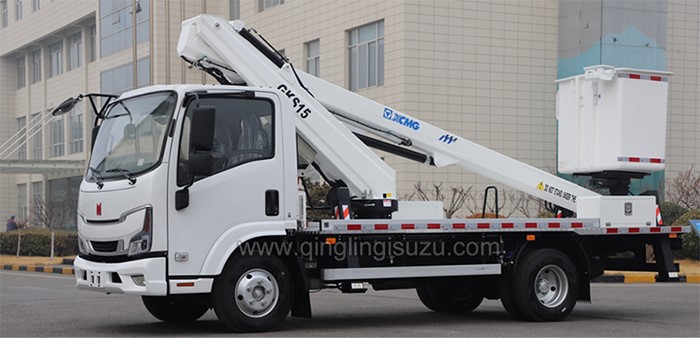

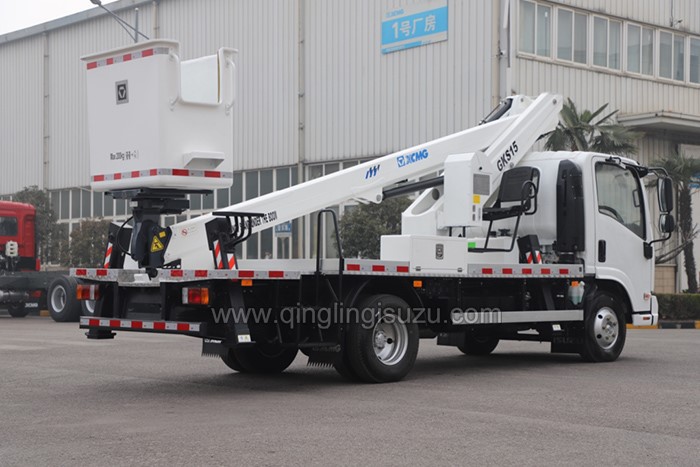

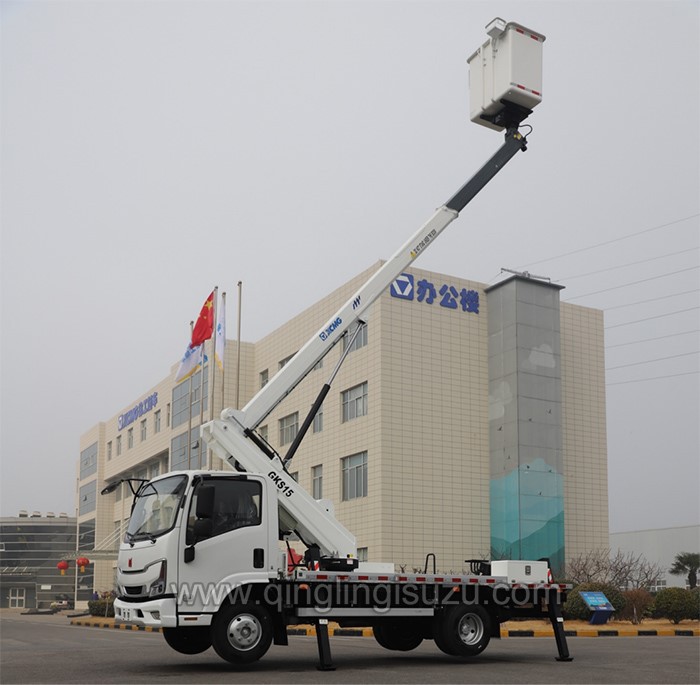

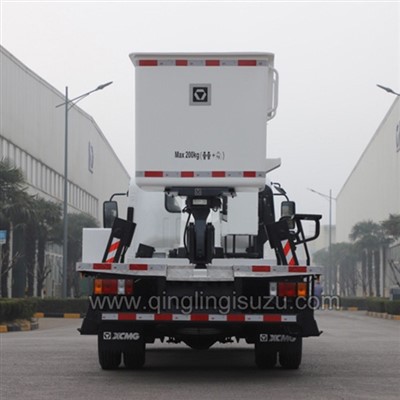

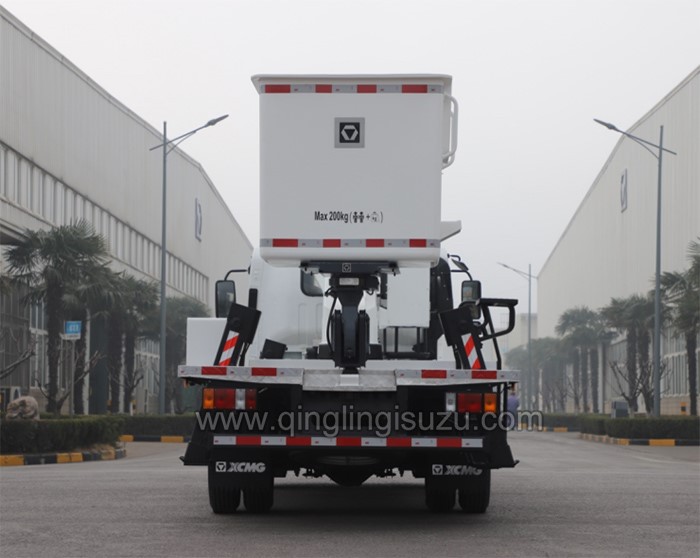

Photo for Reference:
