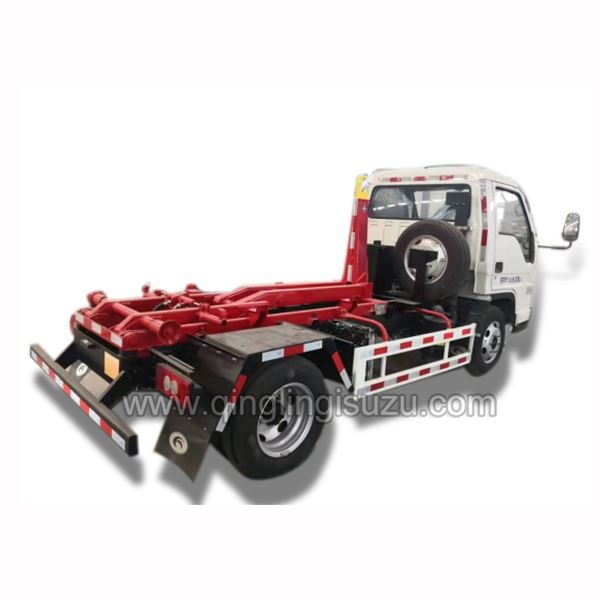

This hooklift truck was converted from a Qingling Isuzu Euro 5 chassis. Powered by a 4KH1CN5HD engine with 130hp. Equipped with manual transmission 5 forward gears and 1 reverse gear. The box capacity is 3 cubic metres. This truck's box are available in different type such as Flat, box and so on , which can be selected according to specific requirements.
ISUZU CHINA 100P Hooklift Truck Specifications (Euro V)
Vehicle Model: | QL1042A6FAY | |
Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 5035*2040*2215mm |
Box Inside Dimensions | 3260*1880*480mm | |
Lifting Angle | 46° | |
Wheelbase: | 2765mm | |
Front/ Rear Wheel Distance: | 1504/1525mm | |
Front/Rear Suspension: | 1015/1450mm | |
Approach/Departure angle: | 24/16° | |
Leaf Spring: | 3/3+2 | |
Weights and Capacities | Curb Weight: | 2700kg |
Payload: | 4600kg | |
GVW: | 7300kg | |
Engine | Engine Model: | 4KH1CN5HD |
Max output: | 96Kw | |
Displacement: | 2999ml | |
Horsepower: | 130Ps | |
Exhaust Gas Treatment Technology: | DPF | |
Brake | Hydraulic Brake | |
Front Drum Back Drum | ||
Generator | 12V-60A | |
Transmission | Transmission: | MSB-5 |
Forward Gear: | 5 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Cabin | Number of Seats: | 2 |
Chassis | Drive Type: | 4x2 |
Tires: | 7(Including Spare Tire) | |
Tire Model: | 7.00R16-14 | |
Fuel Tank | Number: | 1 |
Capacity: | 100L | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Tubeless Tire | |
4 | Cab Tilting Mechanism | |
5 | ABS | |
6 | Free Maintenance Battery | |
7 | Retro-reflective Marking | |
