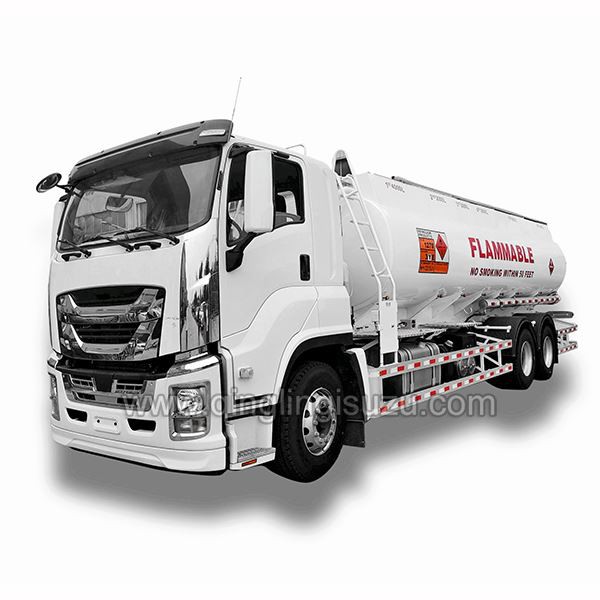

This fuel tanker truck is altered from Qingling chassis mounted with a tanker body made of carbon steel Q235 with a volume of 20m³. The engine of the truck complies with the emission standard of EuroⅤ using the engine 6UZ1-TCG50 with 380 horsepower. The transmission of the truck has 8 forward gears and 1 backward gear.
Description of Vocational Quality:
The thickness of the vehicle’s tanker body is 6mm. It’s commonly used in transporting liquid substances such as crude oil, petroleum products including diesel fuel, petrol, and kerosene; as well as petrochemicals, taking ethanol and benzene for instance. It’s also an ideal vehicle for loading edible oil, vegetable oil, and many other liquid materials. Your special requirements in regards to the specifications and configurations can be discussed and met accordingly.
VC61 6x4 Fuel Tank Truck Specifications (Euro V)
Chassis Model: | QL5330TZZU1VDZY | |
Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 11600×2500×3250mm |
Wheelbase: | 5820+1370mm | |
Front Wheel Distance: | 2065mm | |
Rear Wheel Distance: | 1855/1855mm | |
Front/Rear Suspension | 1370/2590mm | |
Rear Axle Ratio: | 5.571 | |
Approach/Departure angle: | 17/18° | |
Leaf Spring: | 8/10 | |
Weights and Capacities | Curb Weight: | 14580kg |
Payload: | 18290kg | |
GVW: | 33000kg | |
Axle Loads: | 7000/26000kg (Two-Axis Group) | |
Engine | Engine Model: | 6UZ1-TCG50 |
Max output: | 278Kw | |
Displacement: | 9839ml | |
Horsepower: | 380Ps | |
Exhaust Gas Treatment Technology： | SCR | |
Transmission | Transmission: | ZF8S2030T0 |
Forward Gear: | 8 Speed Gear | |
Backward Gear: | 1 Speed Gear | |
Brake | Air Brake | |
Front Drum Back Drum | ||
With Exhaust Brake | ||
Generator | 24V-120A | |
Cab | Number of Seats: | 2 |
Cabin Type: | Standard Roof One Bed | |
Chassis | Drive Type: | 6x4 |
Tires: | 11(Including Spare Tire) | |
Tire Model: | 12R22.5 18PR | |
Fuel Tank | Number: | 1 |
Capacity: | 400L | |
Top Parameters | Product Type: | 20,000L + 5% Ullage |
Compartment: | 7 (2-4-2-4-2-4-2KL) | |
Material | Material Q235 Carbon Steel, Sphere | |
Configurations: | 1 | Power Steering System |
2 | Air Conditioning | |
3 | Central Lock | |
4 | Power Window | |
5 | Driving Data Recorder | |
6 | Tubeless Tire | |
7 | ABS | |
8 | Free Maintenance Battery | |
9 | Aluminum Alloy Gas Tank | |
10 | Widened Bumper | |
11 | Air Suspension Cabin | |
12 | Air Suspension Seat | |
Notes: Above specs is just for reference, any other specs needed, or special requirements, can be discussed accordingly;

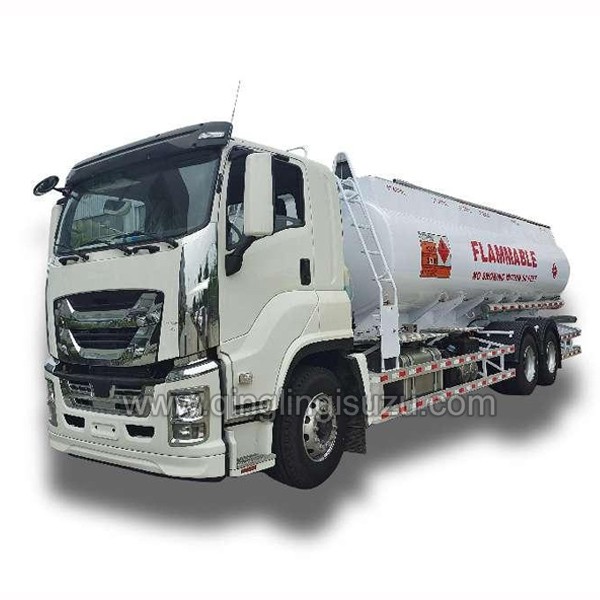

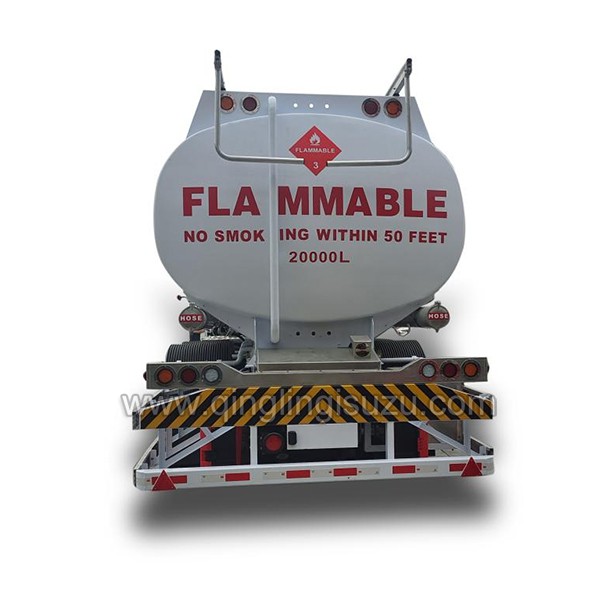

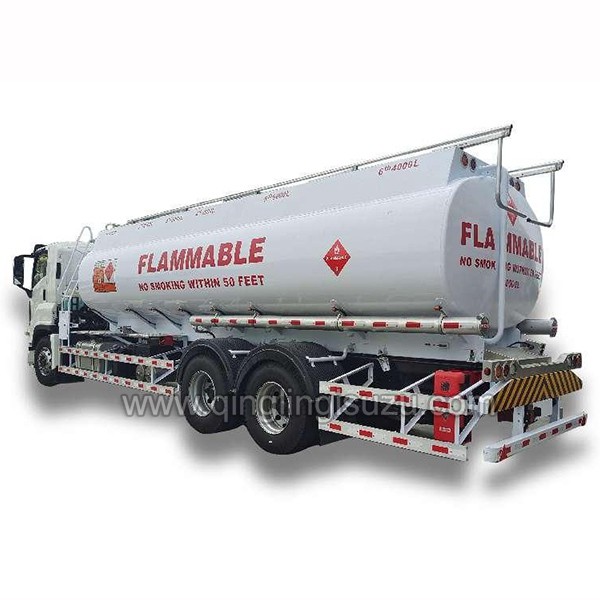

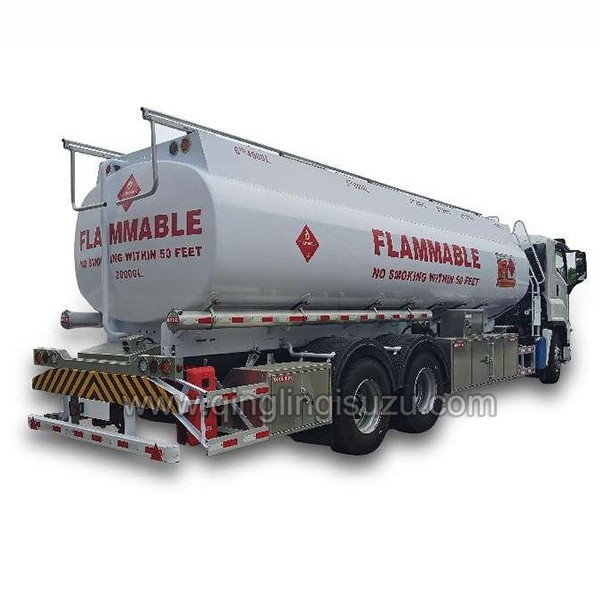

Photo for Reference:
