Abstract: In a recent development concerning after-sale services, an issue with the Pickup TAGA has been successfully resolved following an update to the connection between the Engine Control Unit (ECU) and the Passive Entry Passive Start (PEPS) controller.
The vehicle in question is a T-Series Pickup TAGA, identified by chassis number LWLTHCZH6NL000000 and engine number 4KH1CT6H16A000000. Manufactured on December 23, 2022, this pickup truck had accumulated only 355 kilometers before encountering a significant issue-failure to start.
Upon examination, the following steps were undertaken to diagnose and address the issue.
1. Battery Check: The vehicle's battery was tested for voltage and capacity, both of which were found to be normal.
2. Inspection of Wiring: All wiring was thoroughly checked, and no faults were detected.
3. Key Reprogramming: A diagnostic tool was used to reprogram the vehicle's key. Although this process was successful, it did not resolve the starting issue.

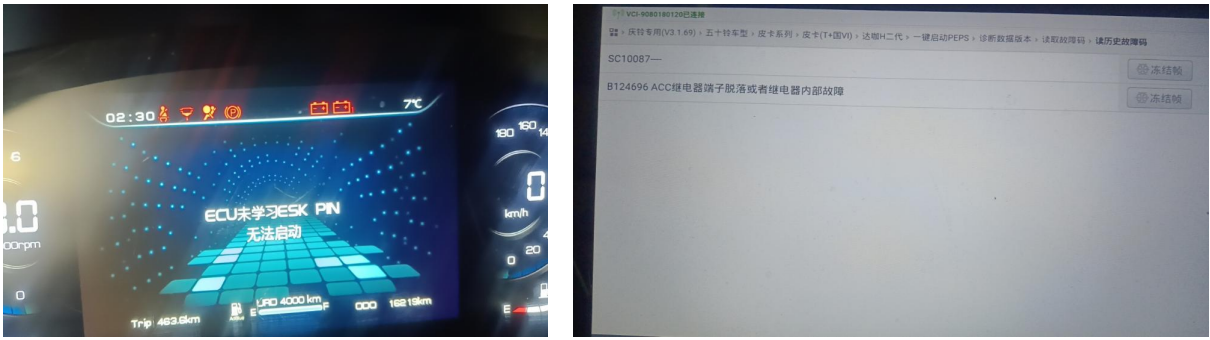

4. EMS Reset and PIN Code Rewriting: Attempts to reset the Engine Management System (EMS) and reprogram the Personal Identification Number (PIN) were unsuccessful.
5. Factory Resolution: The final solution involved re-connect the PEPS controller and ECU. After this reconfiguration, the starting issue was resolved, restoring the truck to operational status.
The resolution of this issue underscores the importance of precise calibration between vehicle components and the effectiveness of factory-level interventions in addressing complex problems. The Pickup TAGA is now fully functional and back on the road, thanks to the coordinated efforts of after-sales support and factory technicians.
